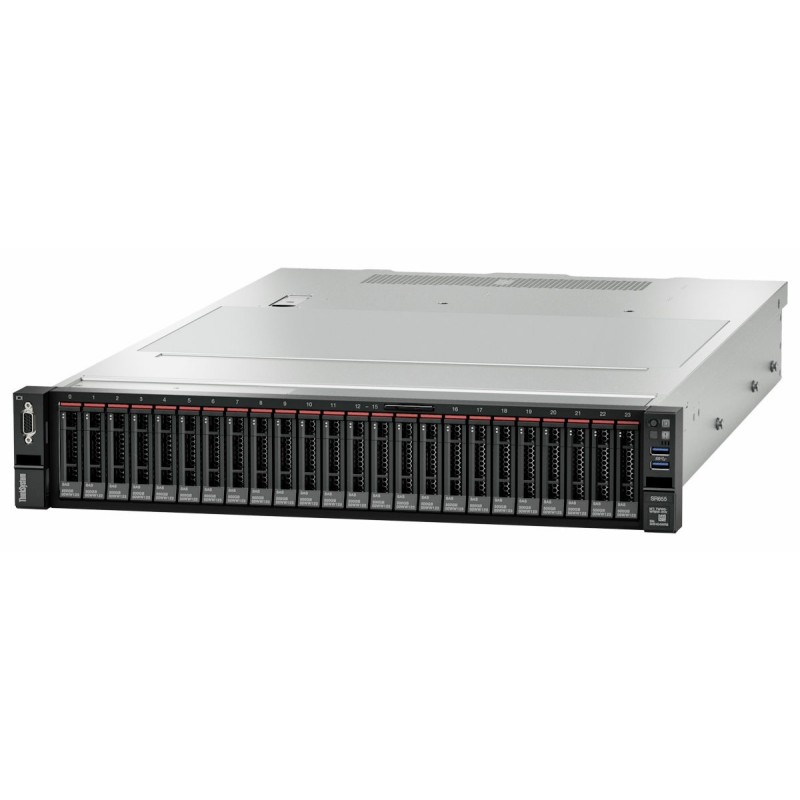

Lenovo ThinkSystem SR655 Rack Server

Form Factor/Depth: 2U / 764 mm (30 inches)

Processor: One AMD EPYC™ 7002 / 7003 Series processors, up to 280W

Memory: 16x DDR4 memory slots; Maximum 2TB using 128GB 3DS RDIMMs; Up to 1 DPC at 3200MHz, 2 DPC at 2933MHz

Drive Bays: Up to 20x 3.5" or 32x 2.5" drives; Maximum of 32x NVMe drives with 1:2 connection

RAID Support: Hardware RAID flash cache; HBAs

Power Supply: Two hot-swap/redundant: 550W/750W/1100W AC 80 PLUS Platinum; or 750W AC 80 PLUS Titanium

Network Interface: OCP 3.0 mezz adapter, PCIe adapters

Slots: 8x PCIe 4.0 rear slots, 1x OCP 3.0 adapter slot, 1x PCIe 4.0 x8 internal slot

Ports:

Front: 2x USB 3.1 G1 ports, 1x VGA (optional)

Rear: 1x VGA, 2x USB 3.1 G1, 1x Serial port; 1x RJ-45 1Gb for dedicated management

Systems Management: ASPEED AST2500 BMC, Partial XClarity support

Operating Systems: Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware vSphere. Visit lenovopress.com/osig for details.

For more information about specification for SR655 visit: https://thinksystem.lenovofiles.com/help/topic/7Y00/server_specifications.html
