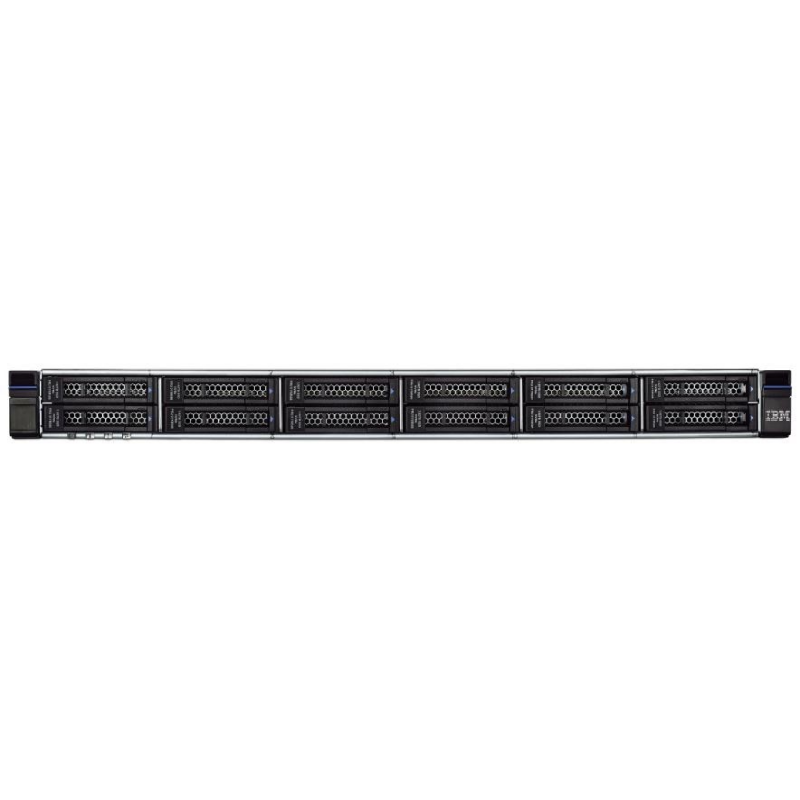

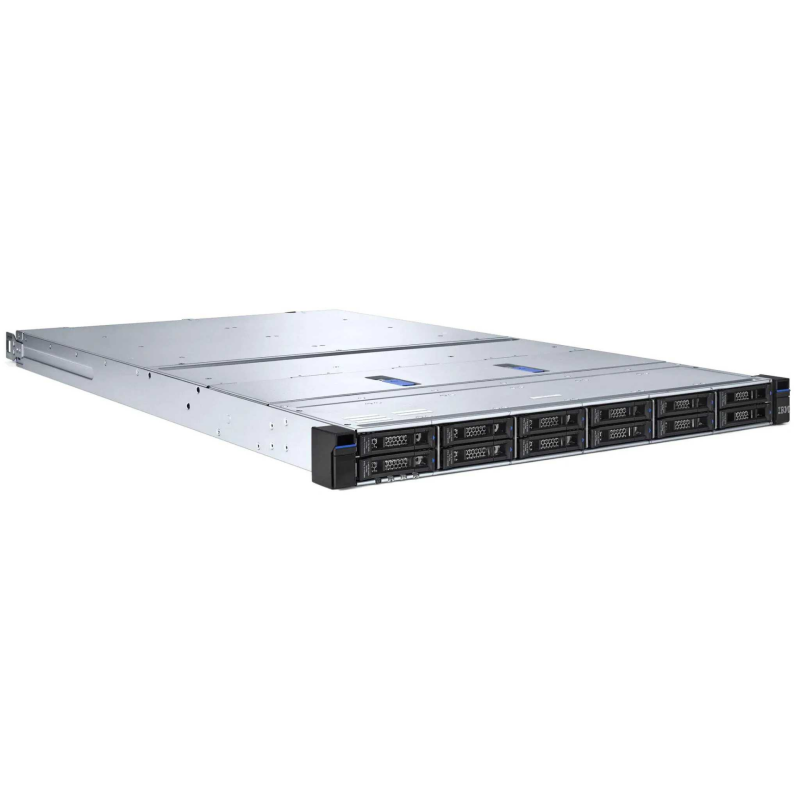

IBM FlashSystem 5200
Šifra:
4662-6H2-CTO
IBM FlashSystem 5200 is bringing NVMe-accelerated storage performance and new levels of cost-efficiency to smaller deployments in enterprises of all sizes
test-1-96
Rack support: 1U - 19-inch / 29-inch depth enclosure
Host interface:
- 10 Gbps Ethernet (iSCSI), 25/10 Gbps Ethernet (iSCSI, iSER—iWARP, RoCE v2),
- 16 Gbps Fibre Channel (FC, FC-NVMe), 32 Gbps Fibre Channel (FC, FC-NVMe), 12Gbps SAS
Supported drives:
- 2.5-inch NVMe IBM FlashCore Modules (FCM): 4.8 TB, 9.6 TB, 19.2 TB and 38.4 TB self-compressing FCM
- 2.5-inch NVMe flash drives—industry standard: 800 GB, 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB and 30.72TB
- Storage Class Memory (SCM): 1.6 TB
Scalability:
IBM FlashSystem 5200 can scale out and up and operate as a single system:
- Scale out up to 4 systems
- Scale up to 20 2U expansion enclosures or up to 8 5U expansion enclosures 32 PB
Maximum drives supported:
748 per control enclosure; 2,992 per clustered system
IBM FlashSystem 5200 control enclosures support the following expansions:
- Small form-factor enclosure: 24 x 2.5 in. Drives
- Large form-factor enclosure: 12 x 3.5 in. Drives
- High-density expansion enclosure: 92 x 3.5 in. drives
RAID levels: Distributed RAID 1, 5 and 6
Software:
- IBM Spectrum Virtualize
- IBM Storage Insights
Control enclosure dimensions and weight:
- Height: 4.3 cm (1.7 in.)
- Width: 44.6 cm (17.5 in.) (19 in. rack standard)
- Depth: 77.0 cm (30.3 in.)
- Weight: Fully configured (12 drive modules installed): 19.5 kg (43.0 lb)
