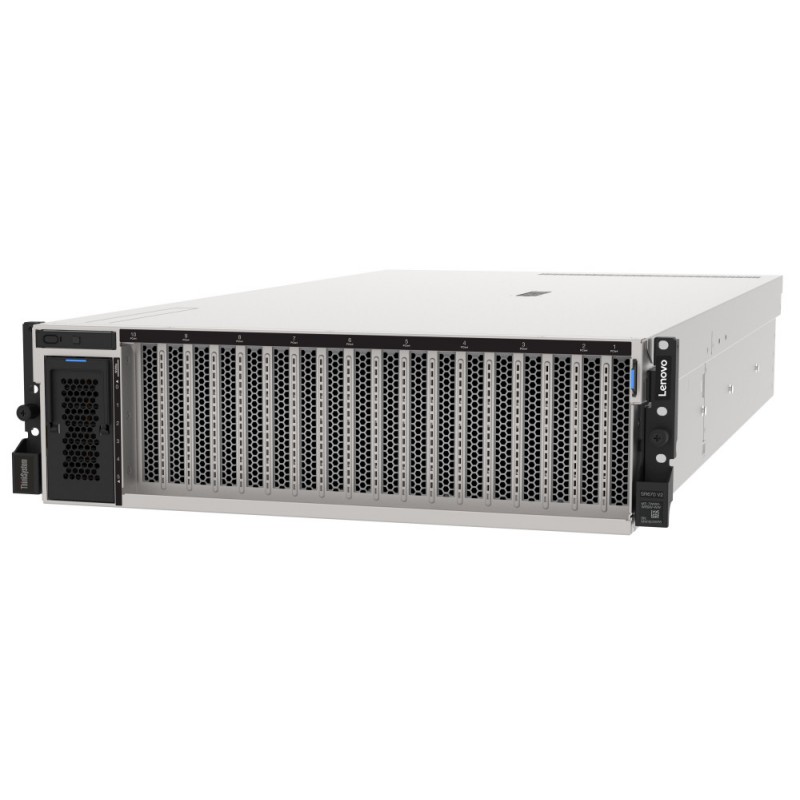

Lenovo ThinkSystem SR670 V2 Rack Server

Form Factor/Height: 3U Rack-mount with three modules

Processors: 2x 3rd Gen Intel® Xeon® Scalable processors per node

Memory:

Up to 4TB using 32x 128GB 3DS RDIMMs per node

Intel® Optane™ Persistent Memory 200 Series

Base Module:

Up to 4x double-wide, full-height, full-length FHFL GPUs each PCIe Gen4 x16

Up to 8x 2.5" Hot Swap SAS/SATA/NVMe, or 4x 3.5" Hot Swap SATA (selected configurations)

Dense Module:

Up to 8x double-wide, full-height, full-length GPUs each PCIe Gen4 x16 on PCIe switch

Up to 6x EDSFF E.1S NVMe SSDs

HGX Module:

NVIDIA HGX A100 4-GPU with 4x NVLink connected SXM4 GPUs

Up to 8x 2.5" Hot Swap NVMe SSDs

RAID Support: SW RAID standard; Intel® Virtual RAID on CPU (VROC), HBA or HW RAID with flash cache options

I/O Expansion: Up to 4x PCIe Gen4 x16 adapters (2 front or 2-4 rear) and 1x PCIe Gen4 x16 OCP 3.0 mezz adapter (rear) depending on the configuration

Power and Cooling:

Four N+N redundant hot-swap PSUs (up to 2400W Platinum)

Full ASHRAE A2 support with internal fans and Lenovo Neptune™ liquid-to-air hybrid cooling on HGX A100

Management: Lenovo XClarity Controller (XCC) and Lenovo Intelligent Computing Orchestration (LiCO)

OS Support:

Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Microsoft Windows Server, VMware ESXi

Tested on Canonical Ubuntu

Visit lenovopress.com/osig for details.

For more information about specification for SR670 V2 visit: https://thinksystem.lenovofiles.com/help/topic/SR670V2/server_specifications_general.html
