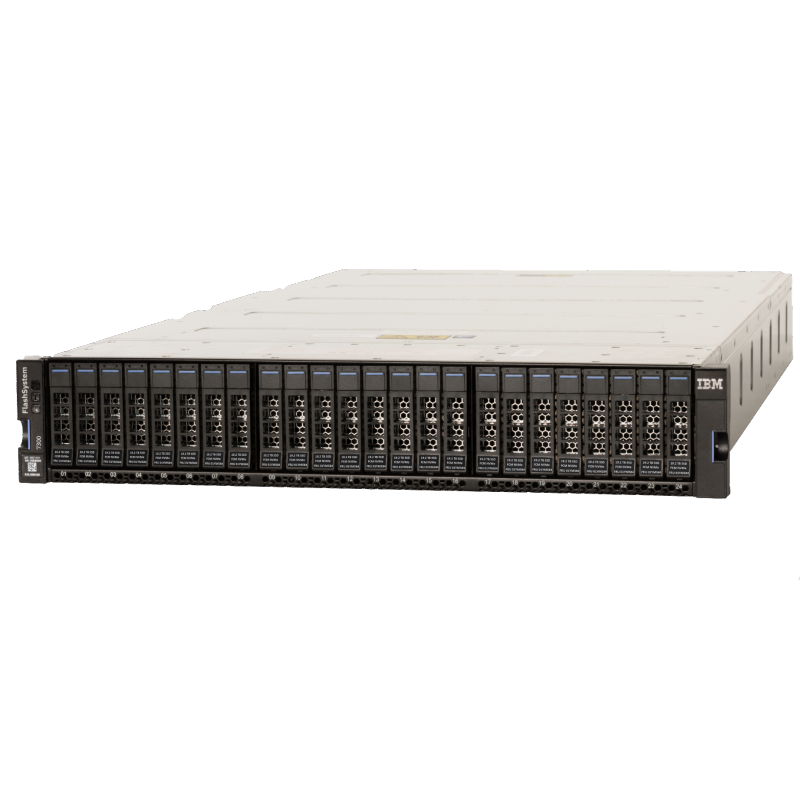

IBM FlashSystem 7300 NVMe Control Enclosure
Šifra:
4657-924-CTO
IBM FlashSystem 7300, machine type 4657, offers IBM Storage Expert Care service and support options in combination with IBM Spectrum Virtualize software, IBM FlashCore Modules, IBM Storage Insights, and storage-class memory to deliver a Non-Volatile Memory Express (NVMe) accelerated, hybrid cloud-enabled storage system. IBM FlashCore Modules and the use of storage-class memory as a higher level storage tier enables FlashSystem 7300 to deliver the highest available performance with the lowest latencies in its class.
test-1-96
Rack support: 2U - 19-inch / 33.5-inch depth enclosure
Host interface:
Per control enclosure :
- Up to 24 x 16/32 Gbps Fibre Channel (FC, NVMeoF)
- 8 x 10 Gbps Ethernet (iSCSI)
- Up to 12 x 10/25 Gbps Ethernet (iSCSI and NVMe RDMA)
- Up to 12 x 100 Gbps Ethernet (iSCSI and NVMe RDMA)
Supported NVMe drives:
- FlashCore Modules (FCM): 4.8 TB, 9.6 TB, 19.2 TB and 38.4 TB with hardware compression
- Storage Class Memory (SCM): 1.6 TB
- Industry Standard NVMe: 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB, and 30.72 TB
Supported SAS drives:
- 2.5-inch SAS SSD: 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB, and 30.72 TB
- 2.5-inch SAS HDD: 1.2 TB, 1.8 TB and 2.4 TB 10k SAS / 2 TB 7.2k nearline SAS
- 3.5-inch SAS HDD: 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB and 18 TB 7.2k nearline SAS
Maximum drives supported:
- Twenty-four 2.5” NVMe drives per control enclosure
- Twelve 3.5” SAS drives per 12G expansion enclosure
- Twenty-four 2.5” SAS drives per 24G expansion enclosure
- Ninety-two 2.5” or 3.5” SAS drives per 92G expansion enclosure
- Up to a maximum of 368 SAS drives in expansion enclosures per control enclosure
RAID levels: DRAID 1 and 6 with dynamic DRAID expansion
Processors:
- Four 10-core 2.4GHz Intel Cascade Lake processors per control enclosure
- Up to sixteen 10-core processors in a 4-way clustered system
Cache:
- From 256 GB up to 1,536 GB per control enclosure
- Up to 6 TB in a 4-way clustered system
Fans and power supplies: Fully redundant, hot swappable
Software:
- IBM Spectrum Virtualize
- IBM Storage Insights
Control enclosure dimensions and weight:
- Width: 483 mm (19.0 in.)
- Depth: 850 mm (33.5 in.)
- Height: 88 mm (3.5 in.)
- Weight: Fully configured (24 drive modules installed): 46.6 kg (102.5 lb)
