Processor:
- 13th Generation Intel® Core™ i3-13100 Processor (P-Core Max 4.50 GHz with Turbo Boost, 4 Cores, 8 Threads, 12 MB Cache, Intel® UHD Graphics 730)
- 13th Generation Intel® Core™ i5-13500 Processor (E-Core Max 3.50 GHz, P-Core Max 4.80 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache, Intel® UHD Graphics 770)
- 13th Generation Intel® Core™ i7-13700 Processor (E-Core Max 4.10 GHz, P-Core Max 5.20 GHz with Turbo Boost, 16 Cores, 24 Threads, 30 MB Cache, Intel® UHD Graphics 770)
- 14th Generation Intel® Core™ i5-14400 Processor (E-Core Max 3.50 GHz, P-Core Max 4.70 GHz with Turbo Boost, 10 Cores, 16 Threads, 20 MB Cache, Intel® UHD Graphics 730)
- 14th Generation Intel® Core™ i5-14400F Processor (E-Core Max 3.50 GHz, P-Core Max 4.70 GHz with Turbo Boost, 10 Cores, 16 Threads, 20 MB Cache)
- 14th Generation Intel® Core™ i5-14500 Processor (E-Core Max 3.70 GHz, P-Core Max 5.00 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache, Intel® UHD Graphics 770)
- 14th Generation Intel® Core™ i5-14600 Processor (E-Core Max 3.90 GHz, P-Core Max 5.20 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache, Intel® UHD Graphics 770)
- 14th Generation Intel® Core™ i7-14700 Processor (E-Core Max 4.20 GHz, P-Core Max 5.30 GHz with Turbo Boost, 20 Cores, 28 Threads, 33 MB Cache, Intel® UHD Graphics 770)
- 14th Generation Intel® Core™ i7-14700F Processor (E-Core Max 4.20 GHz, P-Core Max 5.30 GHz with Turbo Boost, 20 Cores, 28 Threads, 33 MB Cache)
- 14th Generation Intel® Core™ i9-14900 Processor (E-Core Max 4.30 GHz, P-Core Max 5.40 GHz with Turbo Boost, 24 Cores, 32 Threads, 36 MB Cache, Intel® UHD Graphics 770)
- 14th Generation Intel® Core™ i9-14900F Processor (E-Core Max 4.30 GHz, P-Core Max 5.40 GHz with Turbo Boost, 24 Cores, 32 Threads, 36 MB Cache)
Memory:
- Max Memory: Up to 128GB DDR5
- Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
- Memory Type: DDR5-3600 / DDR5-4000 / DDR5-4400
Storage:
Up to four drives, 1x 2.5"/3.5" HDD (2.5" HDD up to 1TB, 3.5" HDD up to 2TB)+ 1x 2.5" HDD (up to 1TB) + 2x M.2 SSD (up to 2TB each)
Graphics:
Integrated graphics: Intel UHD Graphics 770
Discrete Graphics Support: Intel® Arc™ A310 LP Graphics (4GB GDDR6)
Chipset: Intel Q670 Chipset
Operating System:
- Windows® 11 Pro 64
- Windows 11 Home 64
Input Device:
Keyboard: USB Traditional Keyboard, Black, Slovenian
Mouse: USB Calliope Mouse, Black
Multi-Media:
Audio Chip: High Definition (HD) Audio, Realtek® ALC897Q-CG codec
Speakers: Single speaker, 1W x1
Network:
Onboard Ethernet: Gigabit Ethernet, Intel Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN
WLAN + Bluetooth:
- Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 Card
- Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support, M.2 Card
- No WLAN and Bluetooth
Ports/Slots:

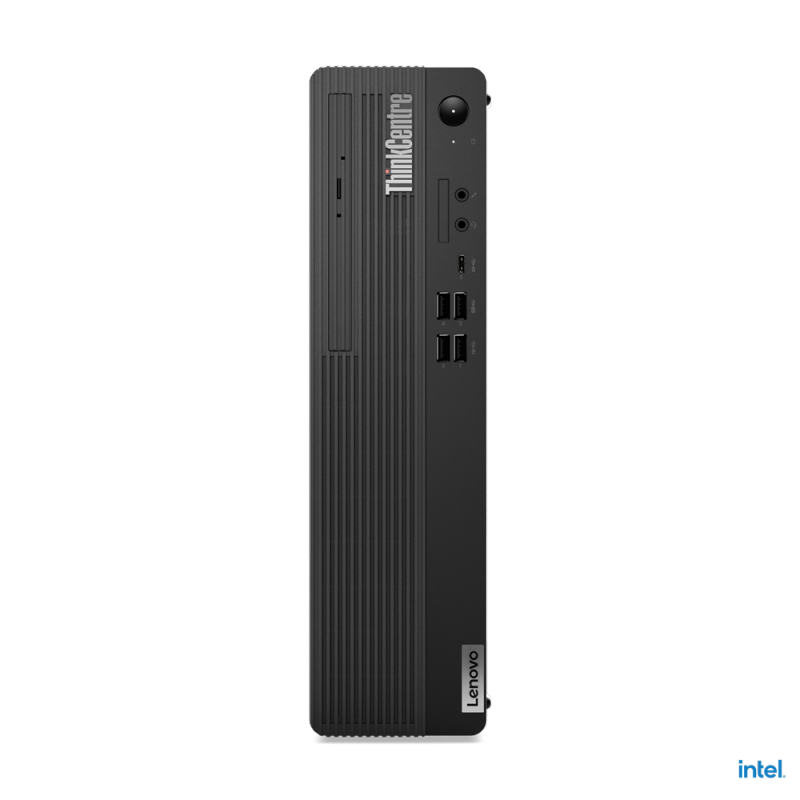

Front Ports:
- 1x USB-C 3.2 Gen 2 (support data transfer and 15W charging)
- 2x USB 3.2 Gen 1
- 2x USB 3.2 Gen 2
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
Optional Front Ports:

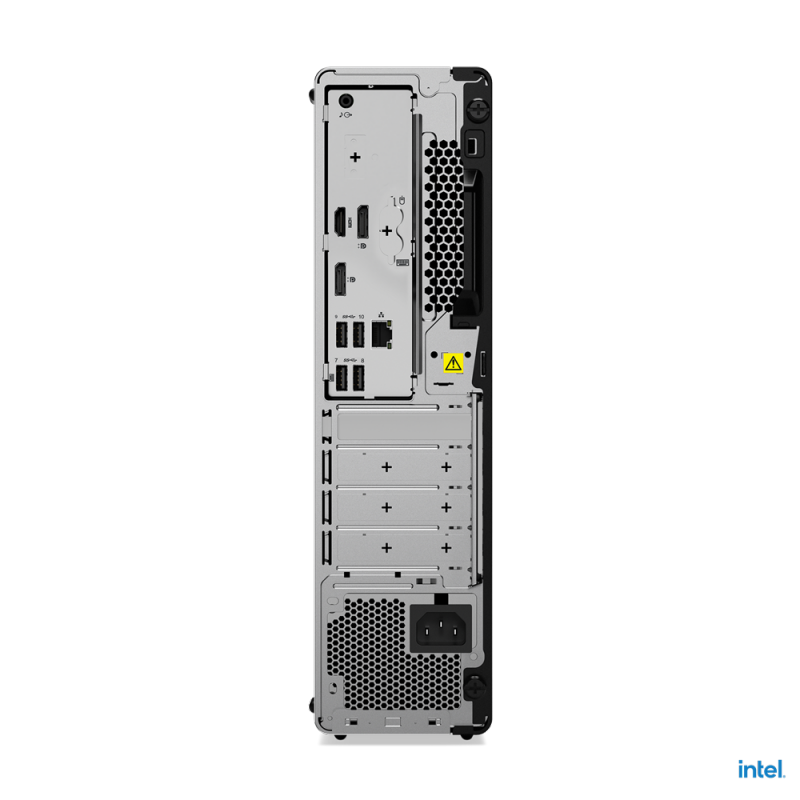

Rear Ports:
- 4x USB 3.2 Gen 1
- 1x HDMI 2.1 TMDS
- 2x DisplayPort™ 1.4
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
Optional Rear Ports:
- 1x USB-C 3.2 Gen 1 with DisplayPort function and 5V@3A charging (Flex IO)
- 1x HDMI 2.1 TMDS (Flex IO)
- 1x VGA (Flex IO)
- 1x DP 1.2 (Flex IO)
- 1x USB-C 3.2 Gen 2x2 (via USB-C expansion card, PCIe x4)
- 2x USB 2.0 (via 2-port adapter)
- 2x USB 3.2 Gen 1 (via 2-port USB expansion card, PCIe x1)
- 2x USB-C 3.2 Gen 2 (via 2-port USB-C expansion card, PCIe x4)
- 1x serial
- 1x 2nd serial
- 4x serial (via 4-port serial expansion card, PCIe x1)
- 1x parallel
- 2x PS/2
System Management:
- Intel vPro Enterprise
- Non-vPro
Security:
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks:
- (Optional) E-lock
- (Optional) Smart Cable Clip
- Kensington® Security Slot, 3 x 7 mm
- Padlock Loop
Chassis Intrusion Switch: Chassis intrusion switch
BIOS Security:
- Administrator password
- Hard disk password
- Power-on password
- Boot sequence control
- Boot without keyboard and mouse
- Certificate based BIOS authentication
- Individual USB port disablement
- Self-healing BIOS (Level 2)
- Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
Power Supply:
- 260W, Fixed, 90% Efficiency
- 310W, Fixed, 92% Efficiency
- 380W, Fixed, 92% Efficiency
Monitor Support:
Supports up to 4 independent displays via onboard ports (2x DP, 1x HDMI, and 1x optional Flex IO), more displays support via discrete graphics
Mechanical:
Form Factor: SFF (8.2L)
Dimensions (WxDxH): 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight: Around 5.3 kg (11.7 lbs)
Bays:
- 1x 2.5" disk bay
- 1x 3.5" disk bay
- 1x slim ODD bay
Expansion slots:
- One PCIe 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
- One PCIe 4.0 x16 (x4 signal), low-profile, length ≤ 155mm, height ≤ 70mm
- Two PCIe 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
- Three M.2 slots (one for WLAN, two for SSD)
EOU: Toolless cover, disk, optical, extension card assembly / removal
Stand:
What's in the Box:
- ThinkCentre M90s Gen 5 (Intel)
- USB Keyboard
- USB Mouse
- Quick Start Guide
