Processor:
- 13th Generation Intel® Core™ i5-13500 Processor with vPro® (E-Core Max 3.50 GHz, P-Core Max 4.80 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
- 13th Generation Intel® Core™ i5-13500T Processor with vPro® (E-Core Max 3.20 GHz, P-Core Max 4.60 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
- 13th Generation Intel® Core™ i7-13700T Processor with vPro® (E-Core Max 3.60 GHz, P-Core Max 4.80 GHz with Turbo Boost, 16 Cores, 24 Threads, 30 MB Cache)
- 13th Generation Intel® Core™ i9-13900T Processor with vPro® (E-Core Max 3.90 GHz, P-Core Max 5.10 GHz with Turbo Boost, 24 Cores, 32 Threads, 36 MB Cache)
- 13th Generation Intel® Core™ i3-13100T Processor (P-Core Max 4.20 GHz with Turbo Boost, 4 Cores, 8 Threads, 12 MB Cache)
- 13th Generation Intel® Core™ i3-13100 Processor (P-Core Max 4.50 GHz with Turbo Boost, 4 Cores, 8 Threads, 12 MB Cache)
- 13th Generation Intel® Core™ i5-13400T Processor (E-Core Max 3.00 GHz, P-Core Max 4.40 GHz with Turbo Boost, 10 Cores, 16 Threads, 20 MB Cache)
- 13th Generation Intel® Core™ i5-13400 Processor (E-Core Max 3.30 GHz, P-Core Max 4.60 GHz with Turbo Boost, 10 Cores, 16 Threads, 20 MB Cache)
- 13th Generation Intel® Core™ i5-13600 Processor with vPro® (E-Core Max 3.70 GHz, P-Core Max 5.00 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
- 13th Generation Intel® Core™ i5-13600T Processor with vPro® (E-Core Max 3.40 GHz, P-Core Max 4.80 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
- 13th Generation Intel® Core™ i7-13700 Processor with vPro® (E-Core Max 4.10 GHz, P-Core Max 5.10 GHz with Turbo Boost, 16 Cores, 24 Threads, 30 MB Cache)
- 13th Generation Intel® Core™ i9-13900 Processor with vPro® (E-Core Max 4.20 GHz, P-Core Max 5.20 GHz with Turbo Boost, 24 Cores, 32 Threads, 36 MB Cache)
- 14th Generation Intel® Core™ i3-14100T Processor (P-Core Max 4.40 GHz with Turbo Boost, 4 Cores, 8 Threads, 12 MB Cache)
- 14th Generation Intel® Core™ i3-14100 Processor (P-Core Max 4.70 GHz with Turbo Boost, 4 Cores, 8 Threads, 12 MB Cache)
- 14th Generation Intel® Core™ i5-14400T Processor (E-Core Max 3.20 GHz, P-Core Max 4.50 GHz with Turbo Boost, 10 Cores, 16 Threads, 20 MB Cache)
- 14th Generation Intel® Core™ i5-14400 Processor (E-Core Max 3.50 GHz, P-Core Max 4.70 GHz with Turbo Boost, 10 Cores, 16 Threads, 20 MB Cache)
- 14th Generation Intel® Core™ i5-14500T Processor with vPro® (E-Core Max 3.40 GHz, P-Core Max 4.80 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
- 14th Generation Intel® Core™ i5-14500 Processor with vPro® (E-Core Max 3.70 GHz, P-Core Max 5.00 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
- 14th Generation Intel® Core™ i5-14600T Processor with vPro® (E-Core Max 3.60 GHz, P-Core Max 5.10 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
- 14th Generation Intel® Core™ i5-14600 Processor with vPro® (E-Core Max 3.90 GHz, P-Core Max 5.20 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
- 14th Generation Intel® Core™ i7-14700T Processor with vPro® (E-Core Max 3.70 GHz, P-Core Max 5.00 GHz with Turbo Boost, 20 Cores, 28 Threads, 33 MB Cache)
- 14th Generation Intel® Core™ i7-14700 Processor with vPro® (E-Core Max 4.20 GHz, P-Core Max 5.30 GHz with Turbo Boost, 20 Cores, 28 Threads, 33 MB Cache)
- 14th Generation Intel® Core™ i9-14900T Processor with vPro® (E-Core Max 4.00 GHz, P-Core Max 5.10 GHz with Turbo Boost, 24 Cores, 32 Threads, 36 MB Cache)
- 14th Generation Intel® Core™ i9-14900 Processor with vPro® (E-Core Max 4.30 GHz, P-Core Max 5.40 GHz with Turbo Boost, 24 Cores, 32 Threads, 36 MB Cache)
Memory:
Max Memory: Up to 96GB (2x 48GB DDR5 SO-DIMM)
Memory Slots: Two DDR5 SO-DIMM slots, dual-channel capable
Memory Type:
- DDR5-4800 SO-DIMM non-ECC, maximum transfer speeds of up to 4800 MT/s
- DDR5-5600 SO-DIMM non-ECC, maximum transfer speeds of up to 5600 MT/s
Storage:
Up to two drives M.2 SSD PCIe® NVMe®, PCIe 4.0 x4 Opal2, up to 2TB each
Graphics:
Integrated graphics:
- Intel UHD Graphics 730
- Intel UHD Graphics 770
Discrete Graphics Support:
Supports up to one NVIDIA T1000 8GB
- Discrete NVIDIA T400 4GB GDDR6 40W, 3x miniDP 1.4
- Discrete NVIDIA T1000 4GB GDDR6 50W, 4x miniDP 1.4
- Discrete NVIDIA T1000 8GB GDDR6 50W, 4x miniDP 1.4
Chipset: Intel Q670 Chipset
Operating System:
- Windows 11 Pro
- Windows 11 Home
Input Device:
Keyboard: USB Traditional Keyboard, Black, Slovenian
Mouse: USB Calliope Mouse, Black
Multi-Media:
Audio Chip: High Definition (HD) Audio, Realtek ALC256VB codec
Speakers: Single speaker
Network:
Onboard Ethernet: Gigabit Ethernet, Intel Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN
Optional Ethernet:
- One additional ethernet adapter support, up to one additional 2.5GbE port
- Gigabit Ethernet, Intel® I350-T2, 2x RJ-45, PCIe® x4
- Gigabit Ethernet, Intel® I350-T4, 4x RJ-45, PCIe® x4
- Gigabit Ethernet, Broadcom BCM5720, 2x RJ-45, PCIe® x1
- Gigabit Ethernet, Broadcom BCM5719, 4x RJ-45, PCIe® x4
- 2.5 Gigabit Ethernet, Realtek® RTL8125BGS, 1x RJ-45, BTB
WLAN + Bluetooth:
- Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.1
- Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.1 (Bluetooth® 5.2 hardware ready)
- Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.1 (Bluetooth® 5.3 hardware ready), Intel® vPro® technology support
- No WLAN and Bluetooth®
Ports/Slots:

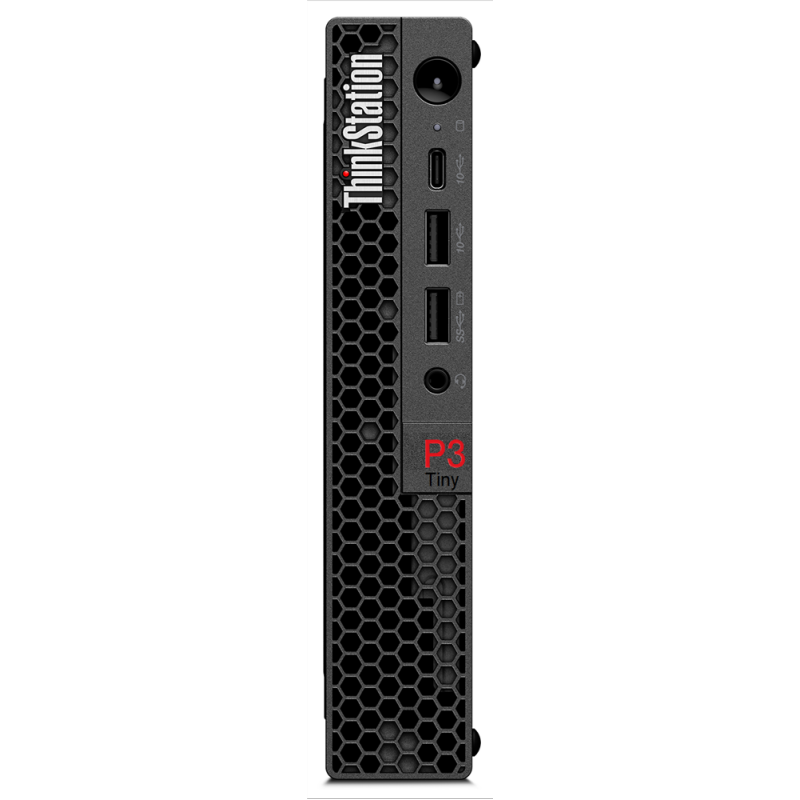

Front Ports:
- 1x USB 3.2 Gen 2
- 1x USB 3.2 Gen 2 (Always On and 5V@2.1A charging)
- 1x USB-C 3.2 Gen 2
- 1x headphone / microphone combo jack (3.5mm)

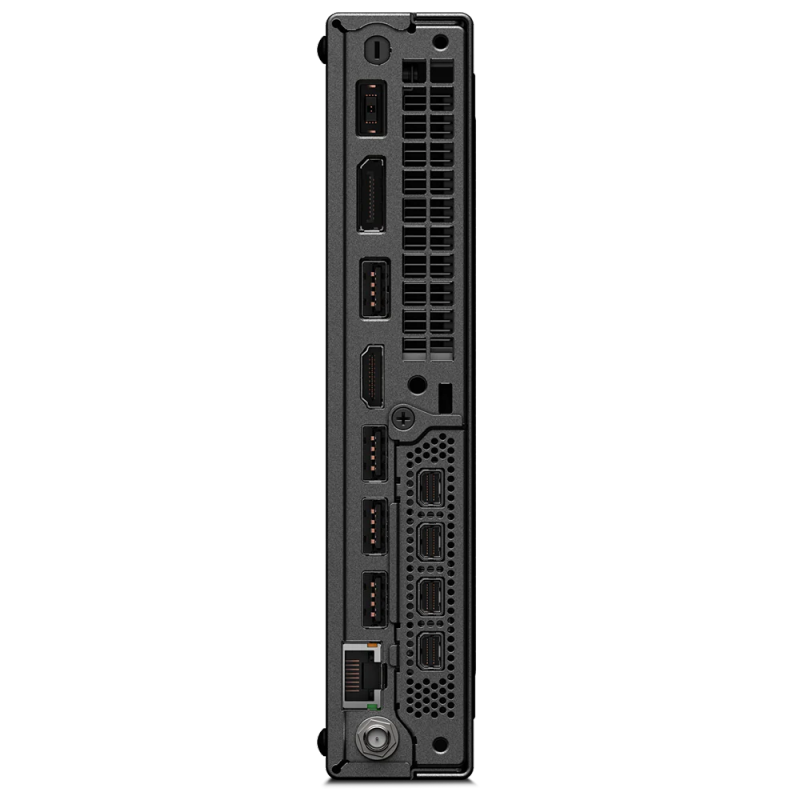

Rear Ports:
- 1x HDMI 2.1 TMDS
- 1x DisplayPort 1.4
- 2x USB 3.2 Gen 1 (one supports Smart Power On)
- 2x USB 3.2 Gen 2
- 1x Ethernet (RJ-45)
Optional Rear Ports:
- Punch out port 1 (one of VGA / DisplayPort / HDMI / serial / USB-C 3.2 Gen 1 with DisplayPort and PD 3.0 functions)
- Punch out port 2 (one of VGA / DisplayPort / HDMI / serial / RJ-45)
- 2x USB 3.2 Gen 1 (occupies port 1 and 2)
- 4x USB 3.2 Gen 1 (share one USB 3.2 Gen 1 bandwidth, occupy port 1 and 2)
- 2x GbE RJ-45, via additional PCIe adapter
- 4x GbE RJ-45, via additional PCIe adapter
- 1x Thunderbolt 4, via additional PCIe adapter
- 4x serial, via additional PCIe adapter
System Management:
- Intel vPro Enterprise with Intel AMT 16
- Non-vPro
Security:
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks: Kensington Security Slot, 3 x 7 mm
Chassis Intrusion Switch: Chassis intrusion switch
BIOS Security:
- Administrator password
- Power-on password
- Hard disk password
- Boot sequence control
- Boot without keyboard and mouse
- Certificate based BIOS management
- Cover presence switch
- Self-healing BIOS
- Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
- Individual USB port disablement
Power Supply:
- 170W / 230W / 300W AC Adapter, 90% Efficiency
Monitor Support:
Onboard graphics supports up to 4 independent displays via (onboard DP, onboard HDMI®, punch out port 1 [VGA / HDMI® / DP / USB-C®], and punch out port 2 [VGA / HDMI® / DP])
(the number of maximum monitors also depends on the discrete graphic card in use)
Mechanical:
Form Factor: Tiny (1L)
Dimensions (WxDxH): 179 x 182.9 x 37mm with rubber feet (7.05 x 7.2 x 1.5 inches with rubber feet)
Weight: 1.4 kg (3 lbs, maximum configuration)
M.2 Slots:
- Two M.2 PCIe Gen 4x4 slots (for SSD)
- One M.2 slot (for WLAN)
Expansion slots: One PCIe 4.0 x8, low-profile
What's in the Box:
- ThinkStation P3 Tiny
- 170W / 230W / 300 W adapter (depending upon graphics)
- USB Keyboard
- USB Mouse
- Quick Start Guide
- VESA Mount (Standard on prebuilt models, optional on configure to order)
- TIO Cable (Standard on prebuilt models, optional on configure to order)
