Processor:
-
Intel® Core™ Ultra 7 155H Processor (E-Core Max 3.80 GHz, P-Core Max 4.80 GHz with Turbo Boost, 16 Cores, 22 Threads, 24 MB Cache)
-
Intel® Core™ Ultra 7 165H Processor with vPro® (E-Core Max 3.80 GHz, P-Core Max 5.00 GHz with Turbo Boost, 16 Cores, 22 Threads, 24 MB Cache)
-
Intel® Core™ Ultra 9 185H Processor with vPro® (E-Core Max 3.80 GHz, P-Core Max 5.10 GHz with Turbo Boost, 16 Cores, 22 Threads, 24 MB Cache)
Display:
- 16″ WQUXGA (3840 x 2400) IPS, 16:10 aspect ratio, 800nit, antiglare, 100% DCI-P3, DisplayHDR 400, Dolby Vision®, X-Rite Factory Color Calibration, TÜV Eyesafe® certified low blue light
- 16″ WUXGA (1920 x 1200) IPS, 16:10 aspect ratio, 300nit, antiglare, 45% NTSC
- 16″ WUXGA (1920 x 1200) IPS, 16:10 aspect ratio, 300nit, antiglare, 45% NTSC, TÜV Eyesafe® certified low blue light, touchscreen
- 16″ WUXGA (1920 x 1200) IPS, 16:10 aspect ratio, 400nit, antiglare, 100% sRGB, low blue light
Memory:
Max Memory: Up to 96GB (2x 48GB DDR5 SO-DIMM)
Memory Slots: Two DDR5 SO-DIMM slots, dual-channel capable
Memory Type: DDR5-5600 non-ECC, maximum transfer speeds of up to 5600 MT/s
Storage: Up to two drives, 2x M.2 SSD
- M.2 2280 SSD up to 4TB, 2TB each
Graphics:
- Intel® Graphics (Integrated)
- Intel® Arc™ Graphics (Integrated)
- NVIDIA® RTX 500 Ada Generation Laptop GPU
- NVIDIA® RTX 1000 Ada Generation Laptop GPU
- NVIDIA® RTX 2000 Ada Generation Laptop GPU
- NVIDIA® RTX 3000 Ada Generation Laptop GPU
Operating System:
- Windows® 11 Pro 64
- Windows 11 Home 64
Input Device:
Keyboard: 6-row, spill-resistant, multimedia Fn keys with Unified Communications controls, numeric keypad
Keyboard Backlight: LED backlight
UltraNav™: 3-button TrackPoint® pointing device and Mylar® surface multi-touch Trackpad, 67.6 x 115 mm
Multi-Media:
Audio Chip: High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers: Stereo speakers, 2W x2, Dolby Audio™
Microphone: Dual-microphone array, far-field, Dolby Voice®
Camera:
- 5.0MP + IR with privacy shutter and Ultrasonic Human Presence Detection, fixed focus, temporal noise reduction
- FHD 1080p with privacy shutter, fixed focus, temporal noise reduction
Network:
Ethernet
- Gigabit Ethernet, Intel® Ethernet Connection I219-LM (vPro® models), 1x RJ-45, supports Wake-on-LAN
- Gigabit Ethernet, Intel® Ethernet Connection I219-V (non-vPro® models), 1x RJ-45, supports Wake-on-LAN
WLAN + Bluetooth: Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3
WWAN: (optional)
- Wireless WAN upgradable to 4G or 5G (with antenna ready)
- Quectel EM160R-GL, 4G LTE CAT16, M.2 card, with embedded eSIM functionality
- Quectel RM520N-GL, 5G Sub-6 GHz, M.2 Card, with embedded eSIM functionality
SIM Card:
Ports/Slots:

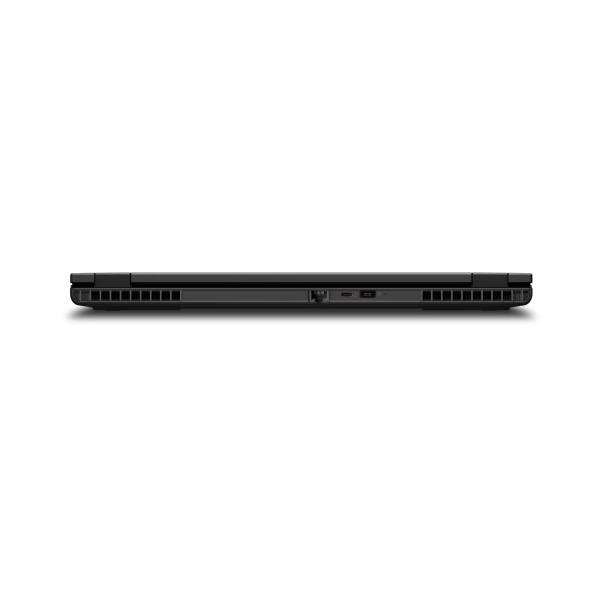

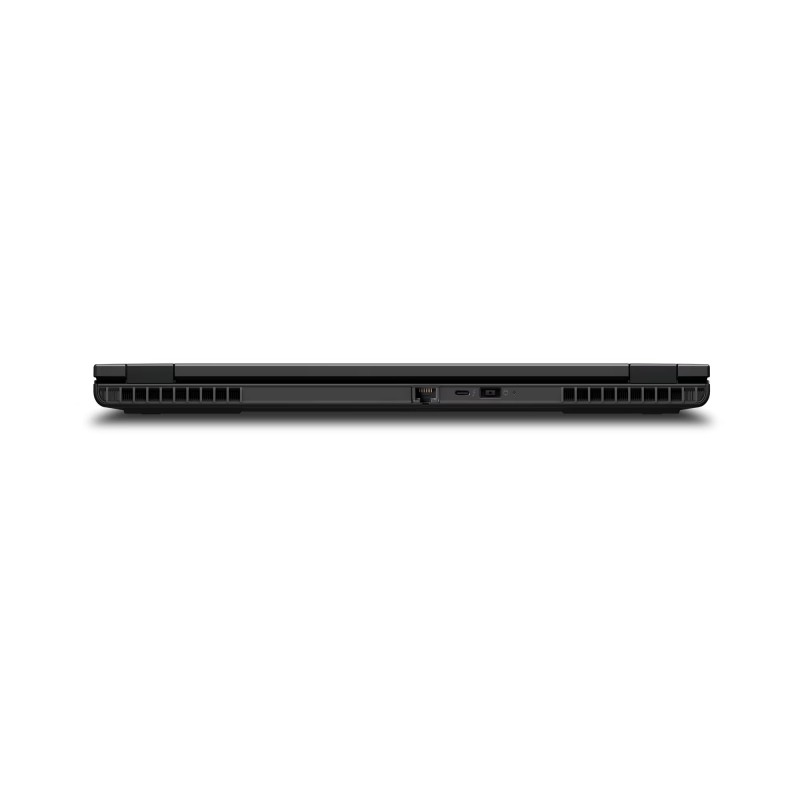

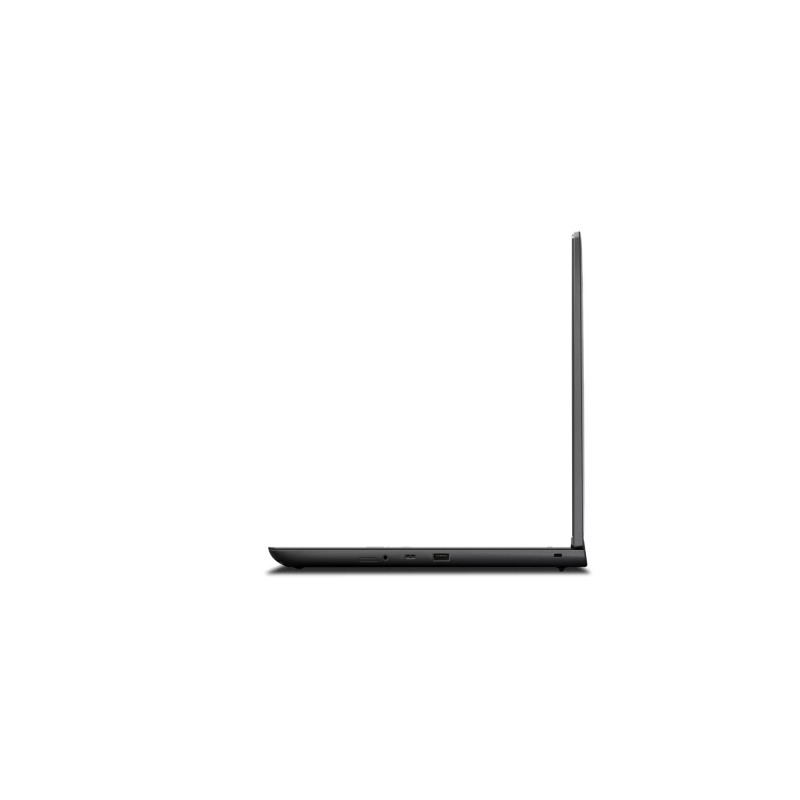

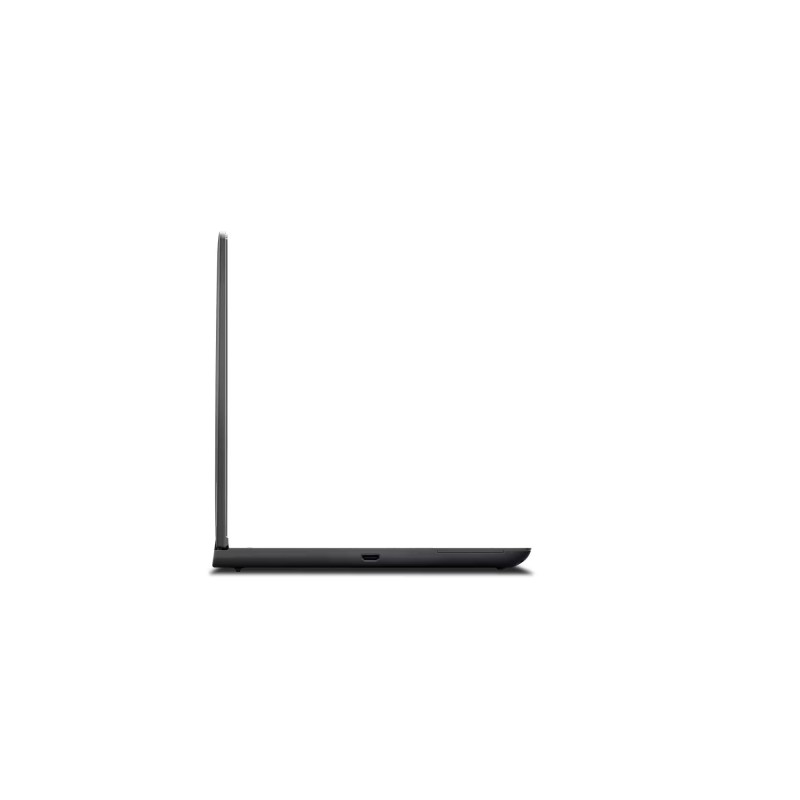

Standard Ports:
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- 1x Security keyhole
Optional Ports:
- 1x Smart card reader
- 1x Nano-SIM card slot (WWAN support models)
System Management:
- Intel® vPro® Enterprise
- Non-vPro®
Security:
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks: Kensington® Nano Security Slot, 2.5 x 6 mm
Fingerprint Reader: Touch style fingerprint reader in keyboard key, match-on-chip
BIOS Security:
- Supervisor password
- Power-on password
- NVMe® password
- Self-healing BIOS
Other Security:
- Camera privacy shutter (camera models)
- (Optional) IR camera for Windows® Hello (facial recognition)
- (Optional) Ultrasonic Human Presence Detection for IR camera
Battery: Integrated Li-Polymer 90Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
Monitor Support:
Supports up to 4 independent displays (native display and 3 external monitors via Thunderbolt™ 4 and HDMI®).
Max resolution for multiple external display:
- 3x 3840x2160@60Hz (Thunderbolt™ 4 and HDMI®)
Max resolution for single external display:
- Thunderbolt™ 4 supports up to 7680x4320@60Hz
- HDMI® supports up to 7680x4320@60Hz (with DSC)

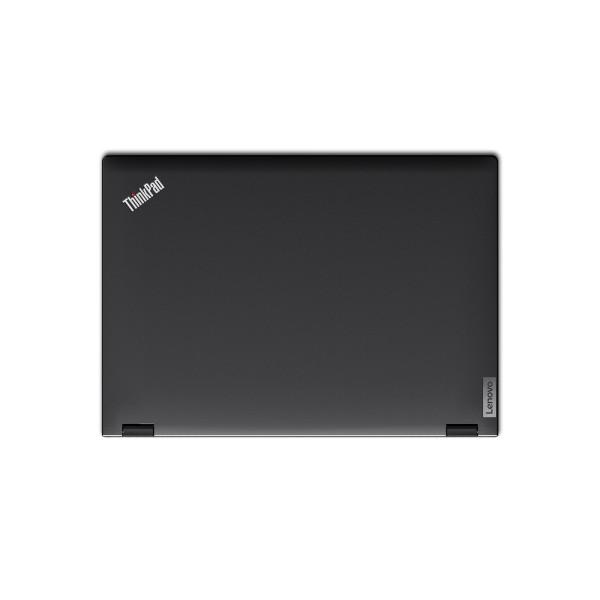

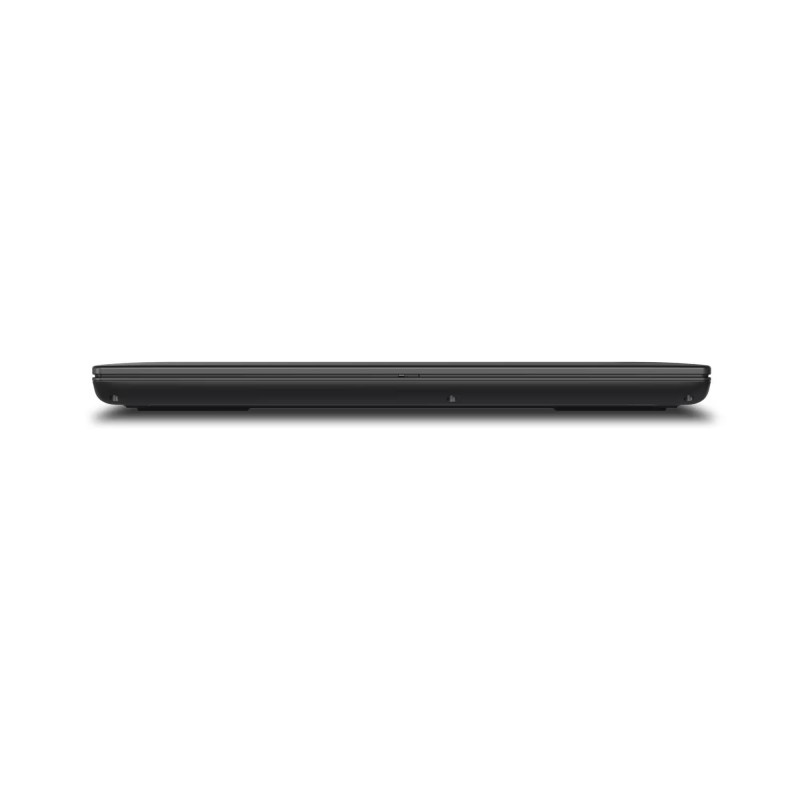

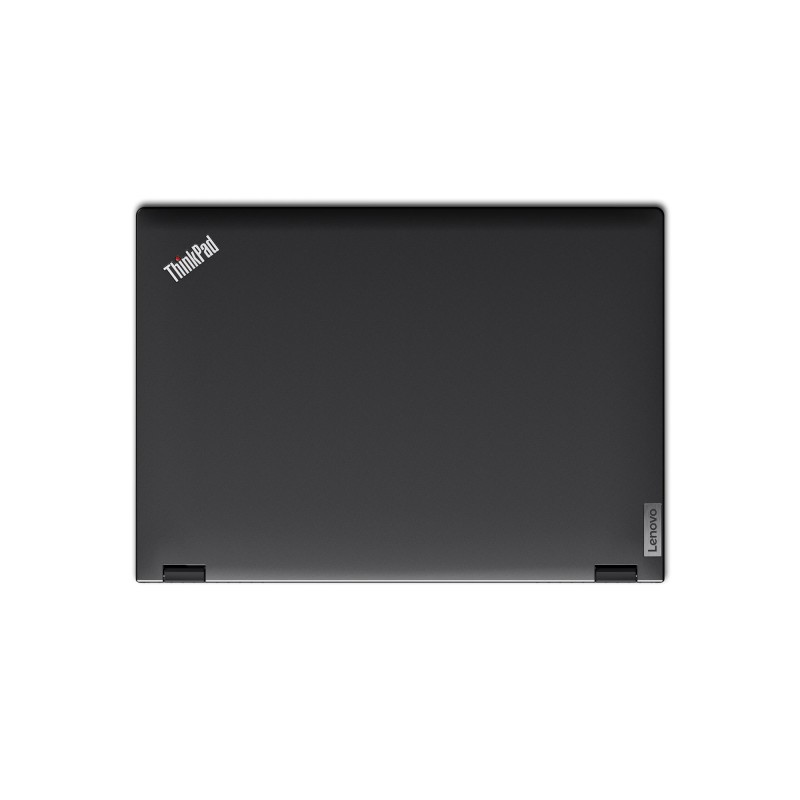

Mechanical:
Dimensions (WxDxH): 365 x 262 x 24.66 mm
Weight: Starting at 2.22 kg
Case Color: Black
Case Material: PC-ABS (top), PC-ABS (bottom)
What's in the Box:

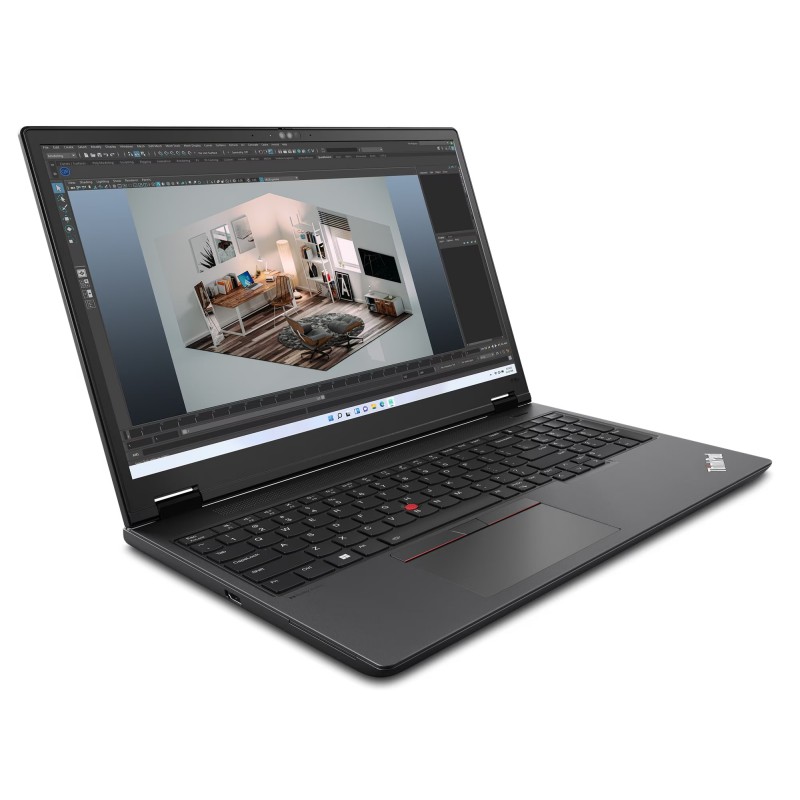

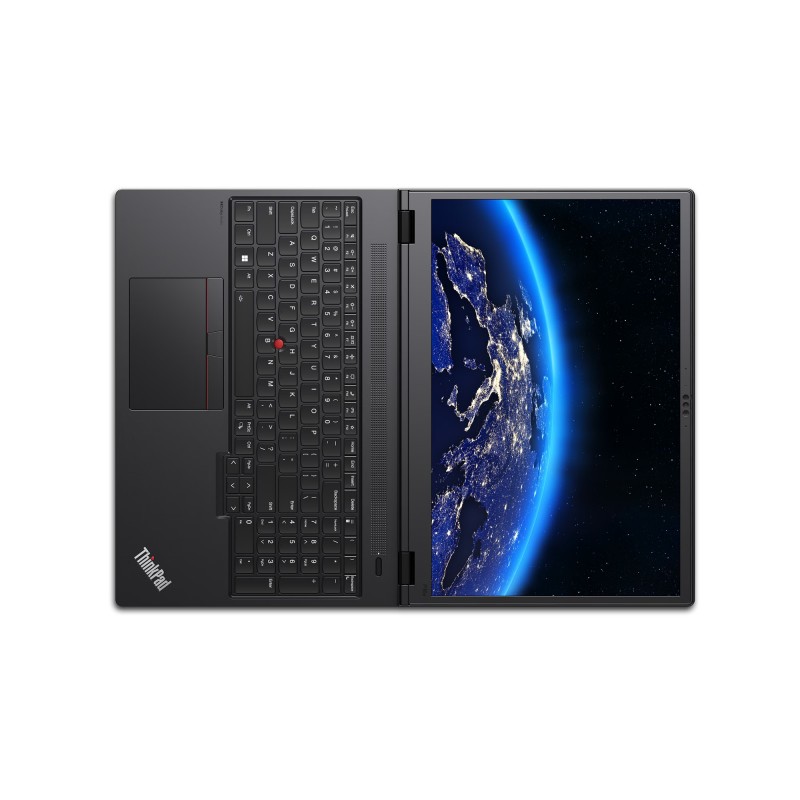

- ThinkPad P16v Gen 2 (16″ Intel) mobile workstation
- 135W slim tip rectangular AC adapter or 170W slim tip AC adapter (for models with discrete graphics); both support rapid charging
- Quick Start Guide
