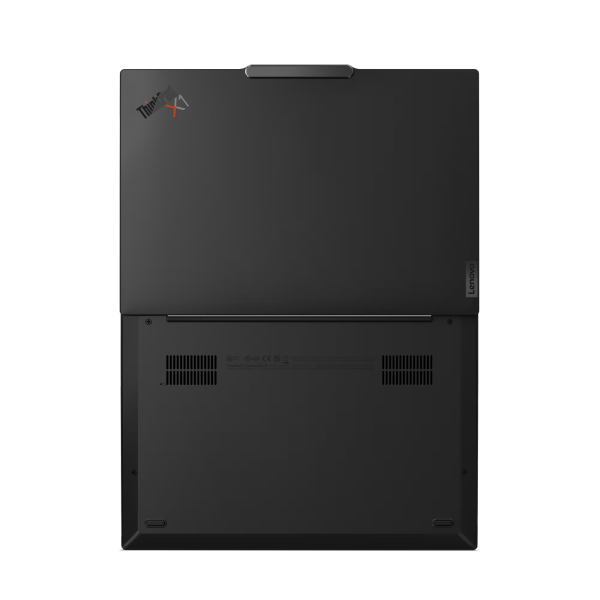

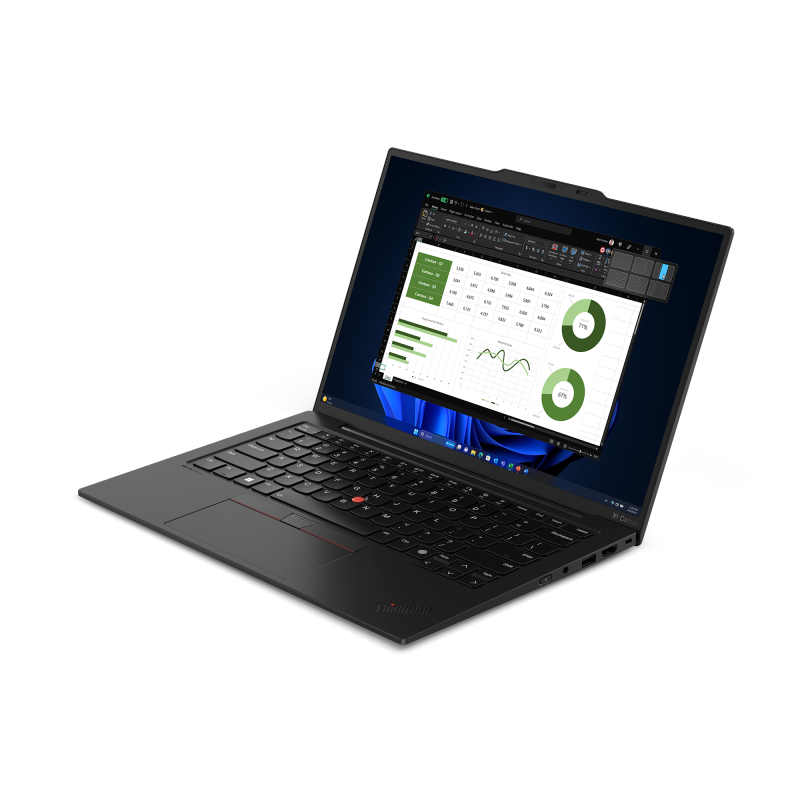

Lenovo ThinkPad X1 Carbon Gen 12

Processor:

• Intel^® Core™ Ultra 5 125U Processor (E-Core Max 3.60 GHz, P-Core Max 4.30 GHz with Turbo Boost, 12 Cores, 14 Threads, 12 MB Cache)

• Intel^® Core™ Ultra 5 135U Processor with vPro^® (E-cores up to 3.60 GHz P-cores up to 4.40 GHz with Turbo Boost, 12 Cores, 14 Threads, 12 MB Cache)

• Intel^® Core™ Ultra 7 155U Processor (E-Core Max 3.80 GHz, P-Core Max 4.80 GHz with Turbo Boost, 12 Cores, 14 Threads, 12 MB Cache)

• Intel^® Core™ Ultra 7 165U Processor with vPro^® (E-cores up to 3.80 GHz P-cores up to 4.90 GHz with Turbo Boost, 12 Cores, 14 Threads, 12 MB Cache)

• Intel^® Core™ Ultra 5 125H Processor (E-Core Max 3.60 GHz, P-Core Max 4.50 GHz with Turbo Boost, 14 Cores, 18 Threads, 18 MB Cache)

• Intel^® Core™ Ultra 7 155H Processor (E-Core Max 3.80 GHz, P-Core Max 4.80 GHz with Turbo Boost, 16 Cores, 22 Threads, 24 MB Cache)

Display:

• 14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, 60Hz, Low Power
• 14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, 60Hz, Low Power, Touch
• 14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, 60Hz, Eyesafe® Certified 2.0
• 14" 2.8K (2880x1800) OLED 400nits Anti-glare / Anti-reflection / Anti-smudge, 100% DCI-P3, 120Hz, DisplayHDR True Black 500, Dolby Vision
• 14" 2.8K (2880x1800) OLED 400nits Anti-glare / Anti-reflection / Anti-smudge, 100% DCI-P3, 120Hz, DisplayHDR True Black 500, Dolby Vision, Add-on Film touch

Memory:

Max Memory:

• 16GB soldered memory,
• 32GB soldered memory,
• 64GB soldered memory,

Memory Slots: Memory soldered to systemboard, no slots, 8-channel, LPDDR5x-6400

Storage: One drive, up to 2TB M.2 2280 SSD

Graphics:

• Intel® Graphics (Integrated)
• Intel® Arc™ Graphics (Integrated)

Operating System:

• Windows® 11 Pro
• Windows® 11 Home

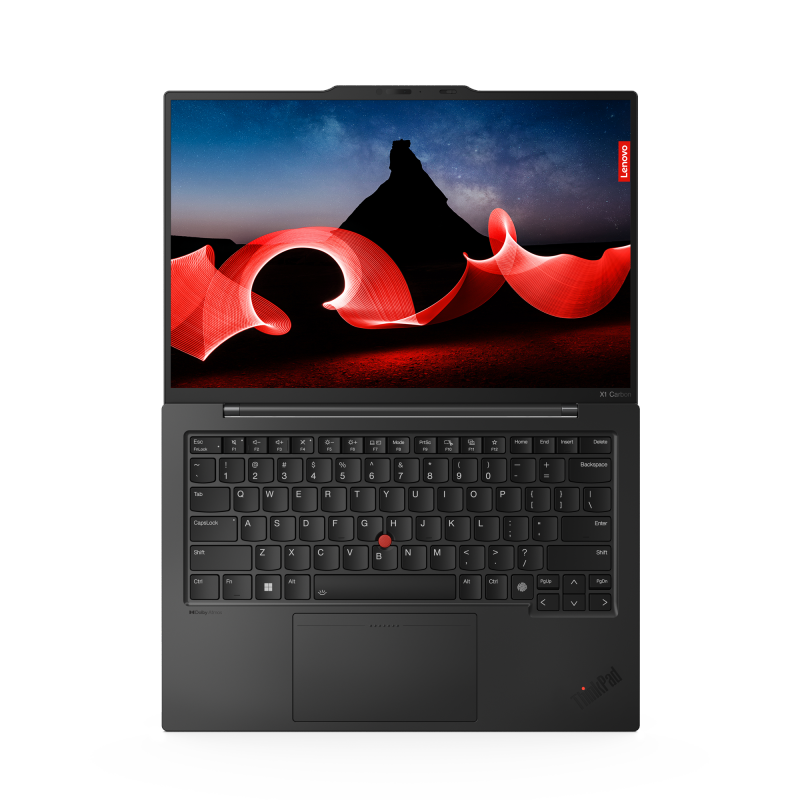

Input Device:

Keyboard: 6-row, spill-resistant, air intake design, multimedia Fn keys

Keyboard Backlight: LED backlight

UltraNav™:

TrackPoint® pointing device, double-tap to open the TrackPoint® Quick Menu

• Glass surface multi-touch Haptic Touchpad, 70.5 x 120 mm (2.78 x 4.72 inches)

TrackPoint® pointing device, double-tap to open the TrackPoint® Quick Menu

• Glass surface multi-touch 3-button Trackpad, 56.2 x 120 mm (2.21 x 4.72 inches)

Multi-Media:

Audio Chip: High Definition (HD) Audio, Realtek® ALC3306 codec

Speakers: Stereo speakers, 2W x2, Dolby Atmos®

Microphone: Dual-microphone array, far-field, Dolby Voice®

Camera:

• FHD 1080p + IR discrete, with privacy shutter, fixed focus, temporal noise reduction
• UHD 8.0MP + IR discrete, with privacy shutter, MIPI, fixed focus, Computer Vision, temporal noise reduction

Network:

WLAN + Bluetooth:

• Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3
• Intel® Wi-Fi® 7 BE200, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.3 (Bluetooth® 5.4 hardware ready)

WWAN: (optional)

• Wireless WAN upgradable to 4G or 5G (with antenna ready)
• Quectel EM160R-GL, 4G LTE CAT16, M.2 card, with embedded eSIM functionality
• Quectel RM520N-GL, 5G Sub-6 GHz, M.2 Card, with embedded eSIM functionality

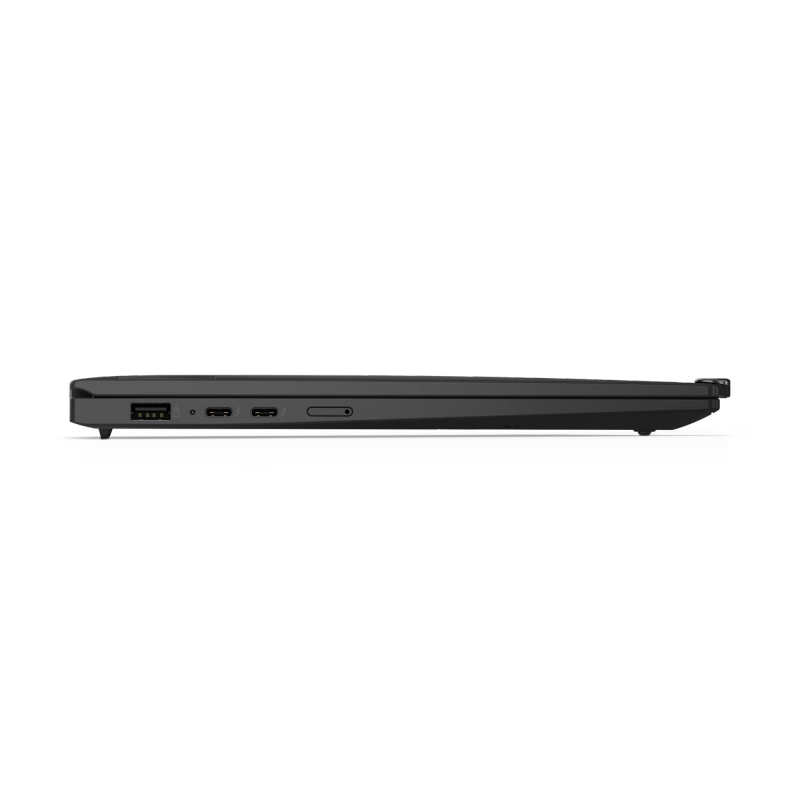

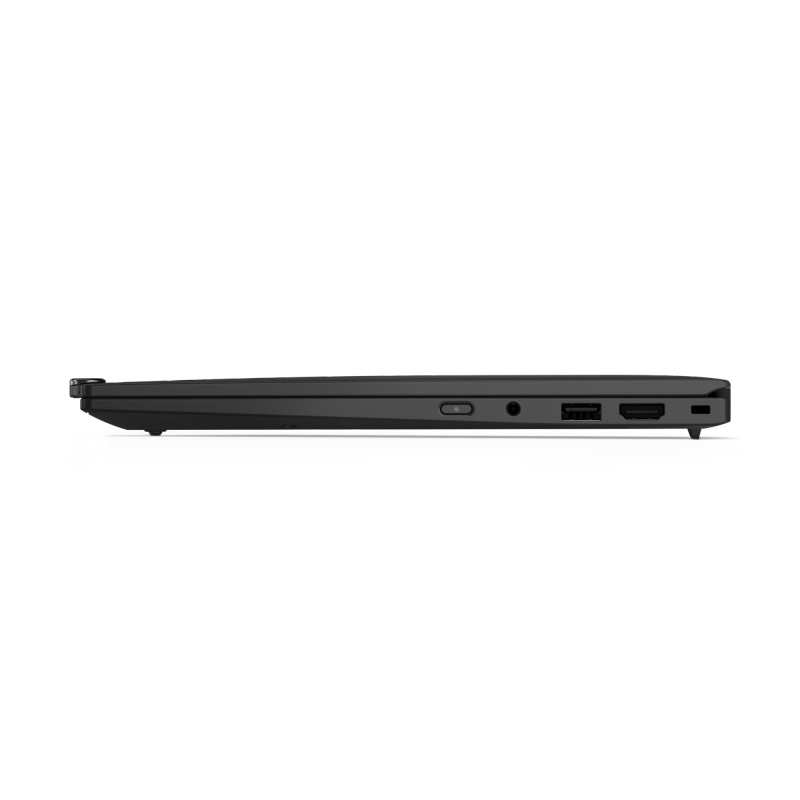

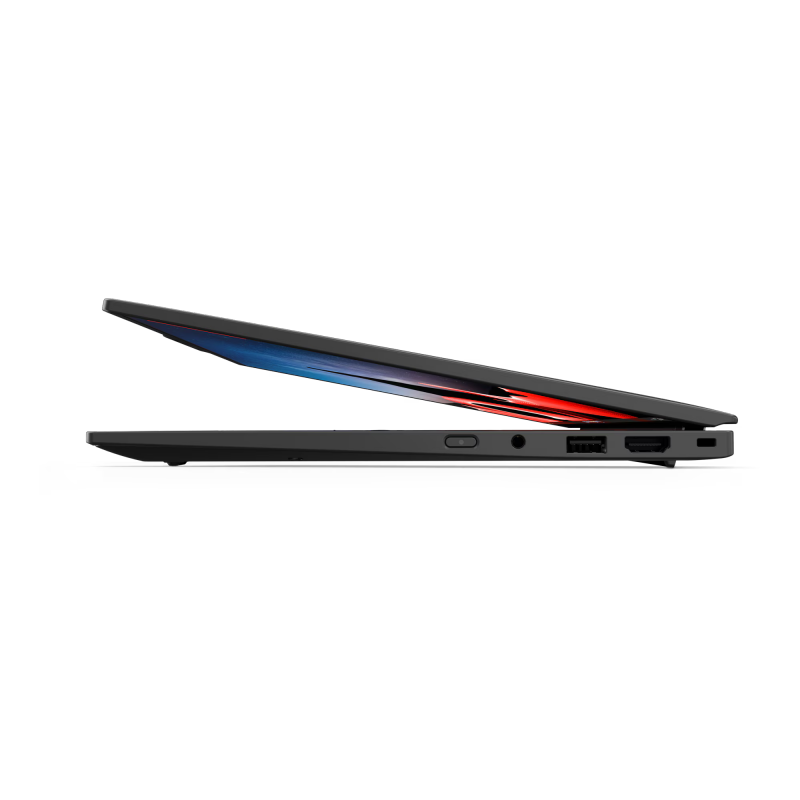

Ports/Slots:

Standard Ports:

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
• 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
• 1x HDMI® 2.1, up to 4K/60Hz
• 1x Headphone / microphone combo jack (3.5mm)

Optional Ports:

• 1x Nano-SIM card slot (WWAN support models)

System Management:

• Intel vPro Enterprise
• Non-vPro

Security:

Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Physical Locks: Kensington® Nano Security Slot, 2.5 x 6 mm

Fingerprint Reader: Touch style fingerprint reader in keyboard key, match-on-chip

BIOS Security:

• NVMe® password
• Power-on password
• Supervisor password
• System management password
• Certificate based BIOS authentication
• FIDO (Fast Identity Online) authentication
• Self-healing BIOS

Other Security:

• Computer Vision-based User Presence Sensing including lock on leave (UHD 8.0MP + IR camera models)
• Camera privacy shutter
• IR camera for Windows® Hello (facial recognition)
• Privacy Guard with Privacy Alert (models with ThinkPad® Privacy Guard display)
• Ultrasonic Human Presence Detection (FHD 1080p + IR camera models)

Battery:

• Integrated Li-Polymer 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter

Monitor Support:

• Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and Thunderbolt™)
• HDMI® supports up to 4K@60Hz
• Thunderbolt™ supports up to 8K@60Hz

Mechanical:

Dimensions (WxDxH):

• 312.80 x 214.75 x 14.96 mm

Weight:

• Models with Trackpad: Starting at 1.08 kg (2.37 lbs)
• Models with Haptic Touchpad: Starting at 1.09 kg (2.40 lbs)

Case Color:

• Deep black, paint
• Deep black, weave

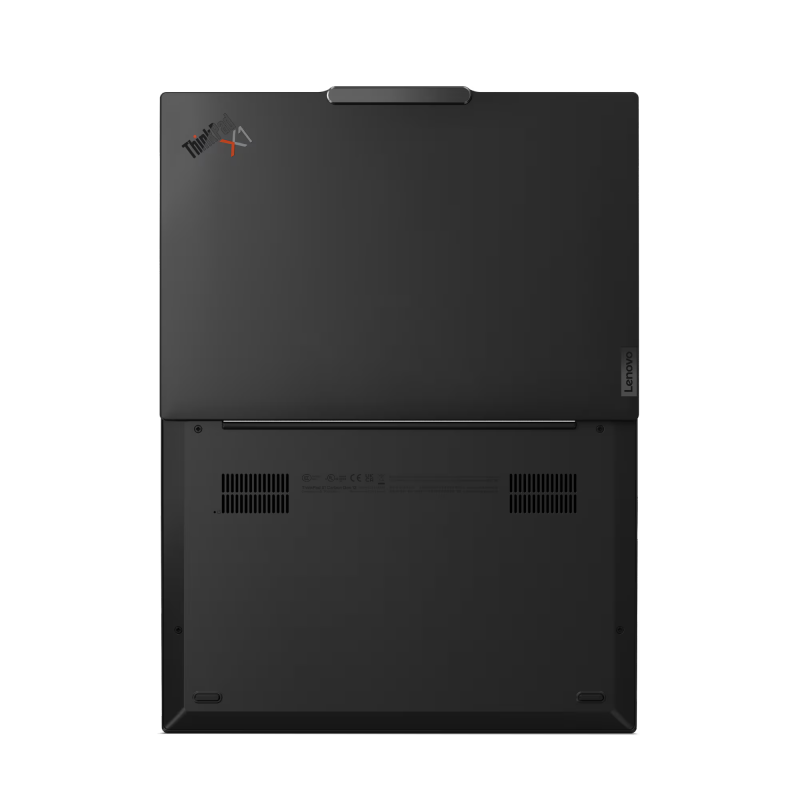

Case Material: Carbon fiber (top), aluminium (bottom)

What's in the Box:

• ThinkPad X1 Carbon Gen 12
• USB-C 65W (supports Rapid Charge)
• Quick Start Guide
