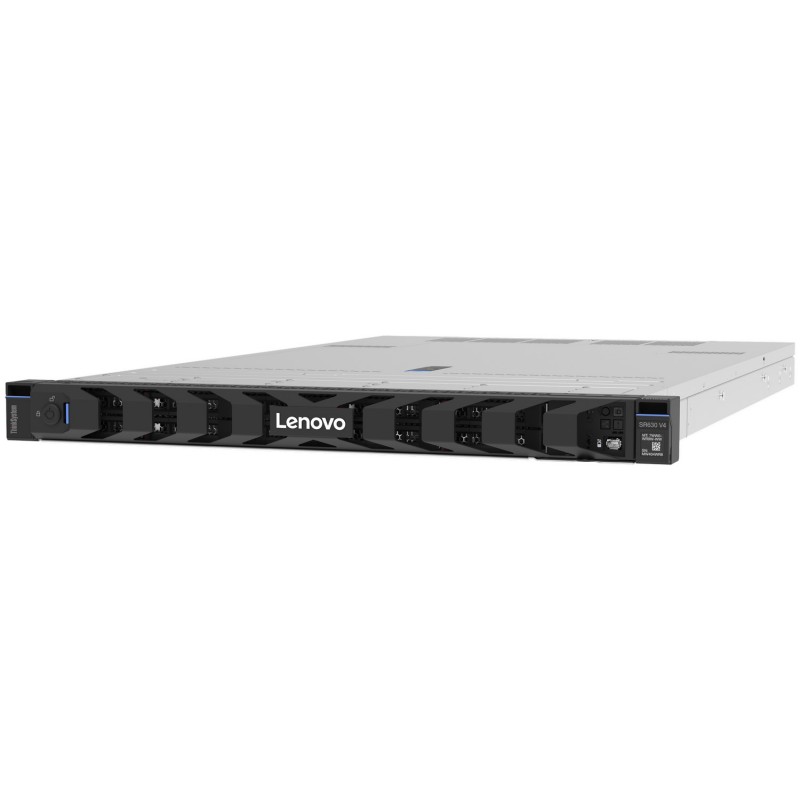

Lenovo ThinkSystem SR630 V4 Rack Server
Za povpraševanje o želenih artiklih nam pišite na prodaja@zelinka.si, za izvedbo ponudbe.
Form Factor/Height: 1U rack server
Processors: Up to 2x Intel Xeon 6700P-series or 6500P-series, up to 86 cores and 172 threads, up to 350 W TDP
Drive Bays: Up to 12x 2.5-inch hot-swap drive bays plus M.2 drives
Memory: 32 DIMM slots with two processors (16 DIMM slots per processor). Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Lenovo TruDDR5 RDIMMs are supported. DIMMs operate at up to 6400 MHz at 1 DPC and up to 5200 MHz at 2 DPC
Expansion Slots: Up to 3x slots, all at the rear, plus 2 OCP slots. All slots are PCIe 5.0.
GPUs: Support for up to 3x single-wide GPUs
Network Interface: Two dedicated OCP 3.0 SFF slots with a PCIe 5.0 host interface, either x8 or x16. Support a variety of 2-port and 4-port adapters with 1, 10, 25 and 100 GbE network connectivity. One port of each installed OCP adapter can optionally be shared with the XClarity Controller (XCC) management processor for Wake-on-LAN and NC-SI support.
Ports:
Front: External diagnostics port, optional 2x USB 3 (5 Gb/s) port, one supports XCC local management, optional Mini DisplayPort (miniDP) v1.1a video port.
Rear: 2x USB 3, 1x VGA video, 1x RJ-45 1GbE (XCC), 1x USB 3 (operatning system or software licence keys - optional), 1x Serial port (optional)
HBA/RAID Support: SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs
Power: Dual redundant power supplies (up to 2000W Platinum)
Systems Management: Lenovo XClarity Controller
OS Support: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. OS Interoperability Guide > Lenovo Press section for specifics.
For more information about specification for SR650 V4 visit: For more information about specification for SR650 V4 visit: https://lenovopress.lenovo.com/lp1971-thinksystem-sr630-v4-server#operating-system-support
