Lenovo ThinkStation P8
Processor:
- AMD Ryzen™ Threadripper™ PRO 7945WX Processor (4.70 GHz, up to 5.30 GHz Max Boost, 12 Cores, 24 Threads, 64 MB Cache)
- AMD Ryzen™ Threadripper™ PRO 7955WX Processor (4.50 GHz, up to 5.30 GHz Max Boost, 16 Cores, 32 Threads, 64 MB Cache)
- AMD Ryzen™ Threadripper™ PRO 7965WX Processor (4.20 GHz, up to 5.30 GHz Max Boost, 24 Cores, 48 Threads, 128 MB Cache)
- AMD Ryzen™ Threadripper™ PRO 7975WX Processor (4.00 GHz, up to 5.30 GHz Max Boost, 32 Cores, 64 Threads, 128 MB Cache)
- AMD Ryzen™ Threadripper™ PRO 7985WX Processor (3.20 GHz, up to 5.10 GHz Max Boost, 64 Cores, 128 Threads, 256 MB Cache)
- AMD Ryzen™ Threadripper™ PRO 7995WX Processor (2.50 GHz, up to 5.10 GHz Max Boost, 96 Cores, 192 Threads, 384 MB Cache)
Memory:
Max Memory: Up to 1TB (8x 128GB 3DS-RDIMM)
Memory Slots: Eight DDR5 DIMM slots, 8 channels capable
Memory Type:
- DDR5-4800 3DS-RDIMM ECC, maximum transfer speeds of up to 4800 MT/s
- DDR5-4800 RDIMM ECC, maximum transfer speeds of up to 4800 MT/s
Memory Protection: ECC
Storage:
Up to 7 drives (HDD maximum, 3x 3.5" HDD + 4x M.2 SSD);
or 8 drives (M.2 SSD maximum, 8x M.2 SSD);
or 6 drives (U.3 SSD maximum, 2x U.3 SSD + 4x M.2 SSD)
- 3.5" HDD up to 12TB each
- M.2 SSD up to 4TB each
- U.3 SSD up to 15.36TB each
Graphics:
Discrete:
Supports up to three NVIDIA® RTX 6000 Ada Generation
Nvidia:
- NVIDIA® RTX A1000 4GB GDDR6
- NVIDIA® RTX A400 8GB GDDR6
- NVIDIA® T400 4GB GDDR6
- NVIDIA® T1000 8GB GDDR6
- NVIDIA® RTX A2000 12GB GDDR6
- NVIDIA® RTX A4000 16GB GDDR6 with ECC
- NVIDIA® RTX A4500 20GB GDDR6 with ECC
- NVIDIA® RTX A5000 24GB GDDR6 with ECC
- NVIDIA® RTX A5500 24GB GDDR6 with ECC
- NVIDIA® RTX A6000 48GB GDDR6 with ECC
- NVIDIA® RTX 2000 Ada Generation 16GB GDDR6
- NVIDIA® RTX 4000 Ada Generation 20GB GDDR6 with ECC
- NVIDIA® RTX 4500 Ada Generation 24GB GDDR6 with ECC
- NVIDIA® RTX 5000 Ada Generation 32GB GDDR6 with ECC
- NVIDIA® RTX 6000 Ada Generation 48GB GDDR6 with ECC
AMD:
- AMD Radeon™ PRO W6400 4GB GDDR6
- AMD Radeon™ PRO W7600 8GB GDDR6
- AMD Radeon™ PRO W7900 48GB GDDR6 with ECC
Chipset: AMD WRX90 chipset
Operating System:
- Windows® 11 Pro
- Windows® 11 Home
- Ubuntu Linux LTS
- No preload operating system
Multi-Media:
Audio Chip: High Definition (HD) Audio, Realtek® ALC897-Q codec
Speakers: Single speaker, 2W x1
Network:
Onboard Ethernet: Two Ethernet, GbE + 10GbE, Realtek® RTL8111EP and Marvell AQtion AQC-113, 2x RJ-45, supports Wake-on-LAN
Optional Ethernet:
One additional Ethernet adapter support, up to four additional 25GbE ports
- Gigabit Ethernet, Intel® I350-T2, 2x RJ-45, PCIe® x4
- Gigabit Ethernet, Intel® I350-T4, 4x RJ-45, PCIe® x4
- Gigabit Ethernet, Broadcom BCM5719, 4x RJ-45, PCIe® x4
- Gigabit Ethernet, Broadcom BCM5720, 2x RJ-45, PCIe® x1
- 10 Gigabit Ethernet, Intel® X550-T2, 2x RJ-45, PCIe® x4
- 25 Gigabit Ethernet, NVIDIA® Mellanox ConnectX-6, 2x SFP28, PCIe® x8
WLAN + Bluetooth:
- AMD Wi-Fi® 6E RZ616, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3
- No WLAN and Bluetooth®
Ports/Slots:
Front Ports: 1x headphone / microphone combo jack (3.5mm)
Optional Front Ports:
- 2x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), one Always On

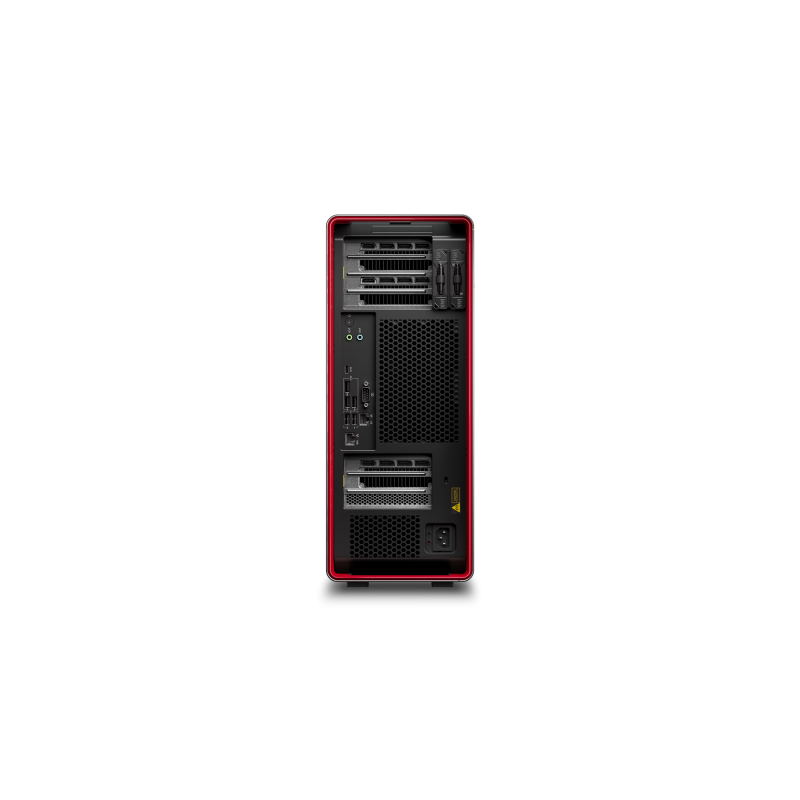

Rear Ports:
- 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 3x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x Ethernet (10GbE RJ-45)
- 1x Ethernet (GbE RJ-45)
- 1x line-in (3.5mm)
- 1x line-out (3.5mm)
Optional Rear Ports:
- 1x serial (via cable)
- 2x PS/2 (via cable)
System Management:
- (Optional) Aspeed AST2600 graphics / management processor, IPMI 2.0-compliant baseboard management controller (BMC)
- AMD PRO Manageability
Security:
Security Chip: Discrete TPM 2.0, TCG certified
Physical Locks:
- (Optional) Access panel lock kit with common key
- (Optional) Access panel lock kit with unique key
- Kensington® Security Slot, 3 x 7 mm
Chassis Intrusion Switch: Chassis intrusion switch (optional)
BIOS Security:
- Administrator password
- Power-on password
- Self-healing BIOS
- UEFI Secure Boot
Power Supply: 1000W / 1400W Fixed, 92% Efficiency, Autosensing, 80 PLUS Platinum qualified
Monitor Support: Supports multiple displays via discrete graphics, the number of maximum monitors supported depends on the graphic card in use
Mechanical:
Form Factor: Tower (39L)
Dimensions (WxDxH): 175 x 508 x 434.4 mm
Weight: Around 22.7 kg
Bays:
Three internal disk bays plus one front access M.2 bay:
- Bay 1 supports one 3.5" HDD, standard, optional support for two M.2 SSD or one U.3 SSD
- Bay 2 supports one 3.5" HDD, standard, optional support for two M.2 SSD or one U.3 SSD
- Bay 3 supports one 3.5" HDD, optional
- Front access M.2 bay supports one M.2 SSD, optional
Expansion slots:
Supports 7 PCIe® slots with 6x PCIe® 5.0 slots and 1x PCIe® 4.0 slot.
- Slot 1: PCIe® 5.0 x16, full height, full length, 75W, double width
- Slot 2: PCIe® 5.0 x8, full height, full length, 25W
- Slot 3: PCIe® 5.0 x16, full height, full length, 75W, double width
- Slot 4: PCIe® 5.0 x8, full height, full length, 25W
- Slot 5: PCIe® 5.0 x16, full height, full length, 75W, double width
- Slot 6: PCIe® 5.0 x16, full height, full length, 75W
- Slot 7: PCIe® 4.0 x8, full height, half length, 25W
What's in the Box:
- ThinkStation P8
- USB Keyboard
- USB Mouse
- Quick Start Guide
