Processor:
-
Intel® Core™ Ultra 5 125U Processor (E-Core Max 3.60 GHz, P-Core Max 4.30 GHz with Turbo Boost, 12 Cores, 14 Threads, 12 MB Cache)
-
Intel® Core™ Ultra 7 155U Processor (E-Core Max 3.80 GHz, P-Core Max 4.80 GHz with Turbo Boost, 12 Cores, 14 Threads, 12 MB Cache)
Display:
- 14″ WUXGA (1920 x 1200) IPS, anti-glare, 16:10 aspect ratio, 300nits, 45% NTSC, touchscreen,
- 14″ WUXGA (1920 x 1200) IPS, anti-glare, 16:10 aspect ratio, 300nits, 45% NTSC
- 14″ 2.2K (2240x1400) IPS, anti-glare, 16:10 aspect ratio, 300nits, 100% sRGB
Memory:
Max memory: Up to 64GB DDR5-5600
Memory slots: Two DDR5 SO-DIMM slots, dual-channel capable
Storage: Up to two drives, 2x M.2 SSD
- M.2 2242 SSD up to 1TB
- M.2 2280 SSD up to 1TB
Graphics:
- Intel® Arc™ Graphics (integrated)
- Intel® Graphics (integrated)
Operating system:
- Windows® 11 Pro
- Windows® 11 Home

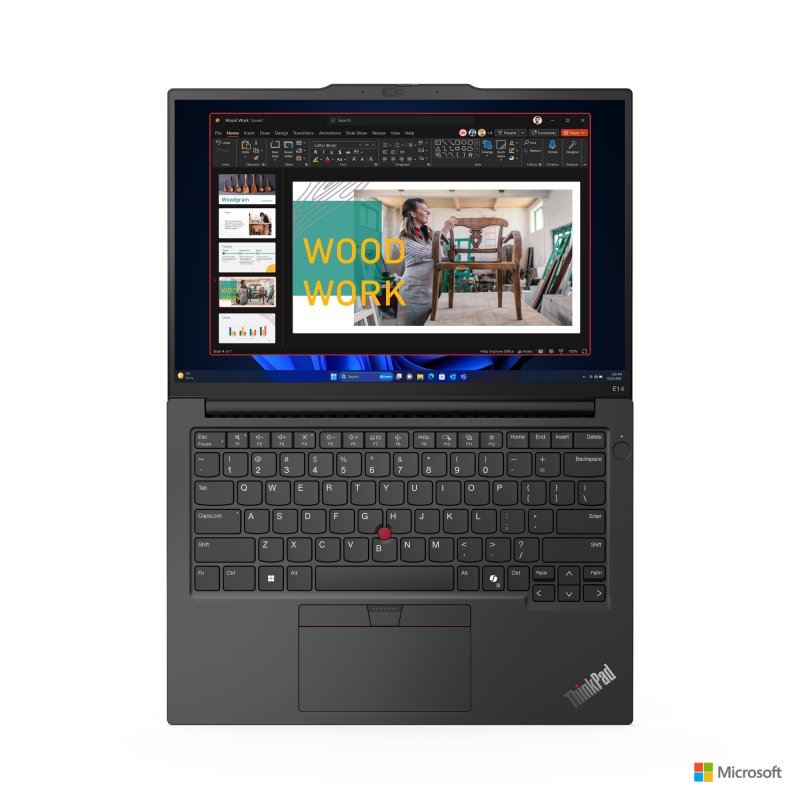

Input device:
Keyboard: 6-row, spill-resistant, multimedia Fn keys, Copilot key
Keyboard Backlight: LED backlight (Optional)
UltraNav:
- TrackPoint® pointing device, double-tap to open the TrackPoint® Quick Menu
- Mylar® surface multi-touch touchpad, 56 x 115 mm (2.24 x 4.53 inches)
Multi-media:
Audio Chip: High Definition (HD) Audio, Senary SN6141 codec
Speakers: Stereo speakers, 2W x2, Dolby Atmos®, audio by HARMAN
Microphone: Dual-microphone array with smart noise-cancelling
Camera:
- FHD 1080p + IR hybrid, with privacy shutter, fixed focus, temporal noise reduction
- FHD 1080p, with privacy shutter, fixed focus, temporal noise reduction
- HD 720p, with privacy shutter, fixed focus
Network:
Ethernet:
- Gigabit Ethernet, Intel® Ethernet Connection I219-LM (vPro® models), 1x RJ-45, supports Wake-on-LAN
- Gigabit Ethernet, Intel® Ethernet Connection I219-V (non-vPro® models), 1x RJ-45, supports Wake-on-LAN
WLAN + Bluetooth:
- Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 card
- Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 Card
- Wi-Fi® 6E, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Realtek® Wi-Fi® 6E RTL8852CE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 Card
WWAN: No support.

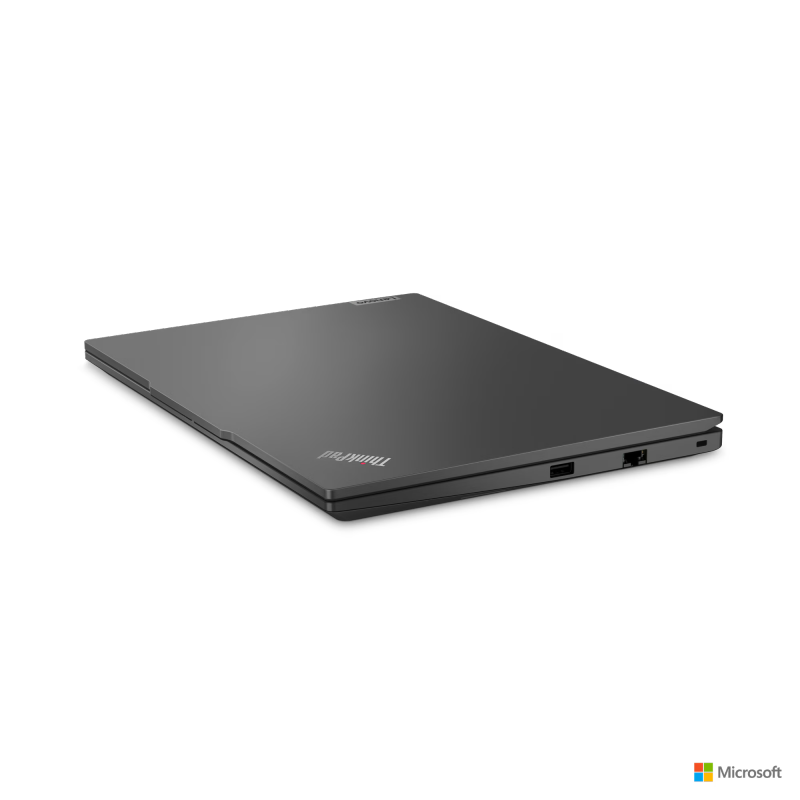

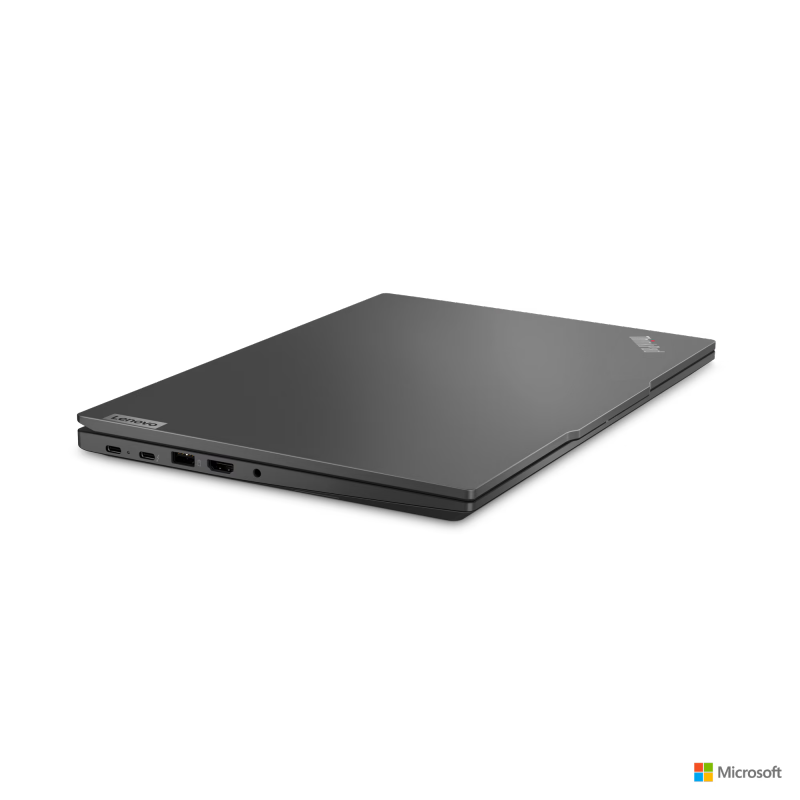

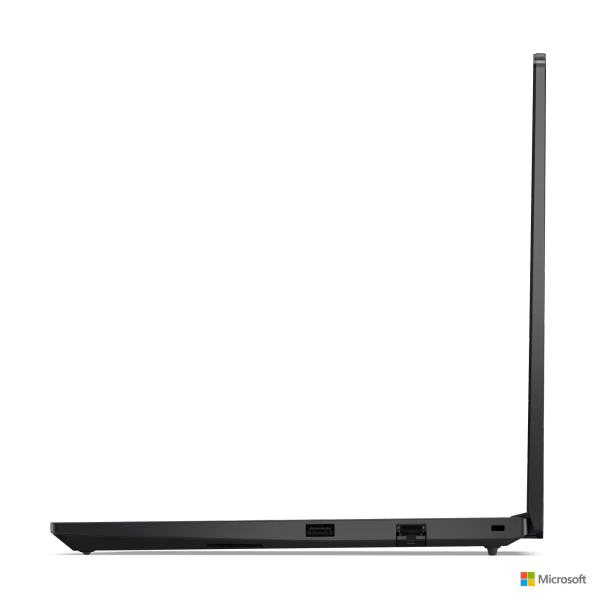

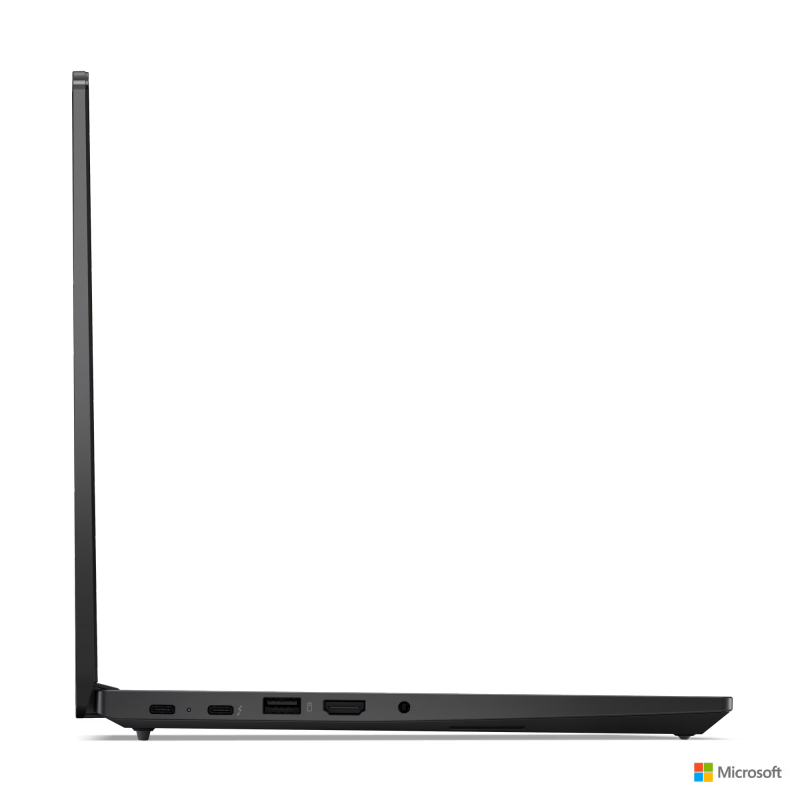

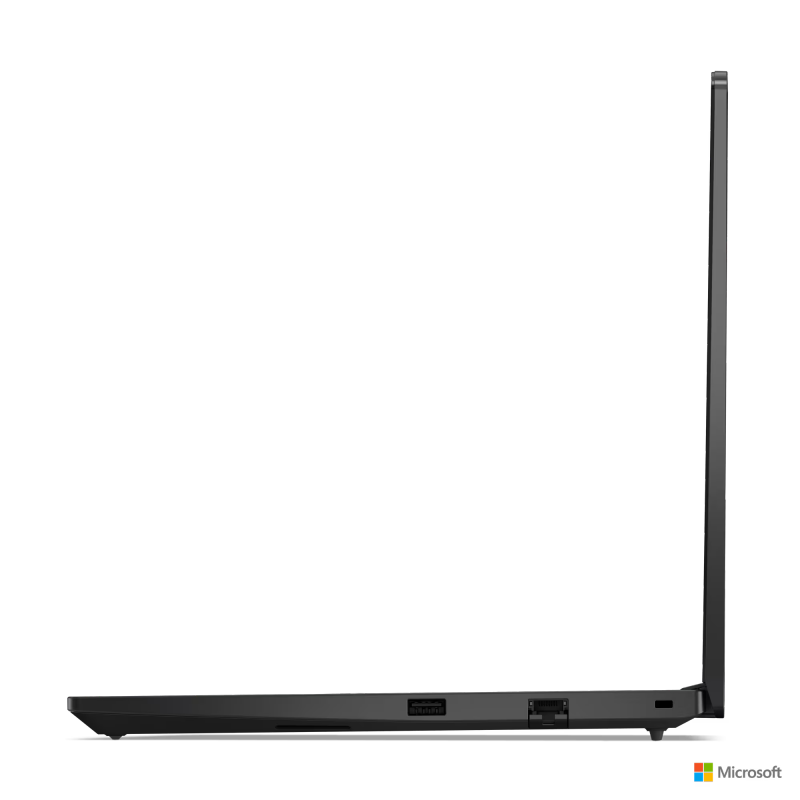

Ports/slots:
Standard Ports:
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with USB PD 3.0 and DisplayPort™ 1.4
- 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
System Management:
- Intel® vPro® Enterprise
- Non-vPro®
Security:
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks: Kensington® Nano Security Slot, 2.5 x 6 mm
Fingerprint Reader: Touch style fingerprint reader integrated in power button, match-on-chip (optional)
BIOS Security:
- NVMe® password
- Power-on password
- Supervisor password
- System management password
- Certificate based BIOS authentication
- FIDO (Fast Identity Online) authentication
- Self-healing BIOS
Other Security:
- Camera privacy shutter
- (Optional) IR camera for Windows® Hello (facial recognition)
Battery:
- Integrated Li-Polymer 47Wh battery, supports Rapid Charge Pro (charge up to 50% in 30min)
- Integrated Li-Polymer 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
Monitor Support:
Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and Thunderbolt™)
- HDMI® supports up to 4K@60Hz
- USB-C® supports up to 5K@60Hz
- Thunderbolt™ supports up to 8K@60Hz
Mechanical:
Dimensions (WxDxH): 313 x 219.3 x 17.99 mm
Weight: Starting at 1.44 kg
Case Color: Black
Case Material: PC + 20% CF
What's in the Box:
- ThinkPad E14 Gen 6 (14” Intel)
- 65W USB-C® AC Adapter (Supports Rapid Charge)
- Quick Start Guide
