Lenovo thinkpad L16 Gen 1 (AMD)
Processors:
- AMD Ryzen™ 3 7335U Processor (3.00 GHz, up to 4.30 GHz Max Boost, 4 Cores, 8 Threads, 8 MB Cache)
- AMD Ryzen™ 5 7535U Processor (2.90 GHz up to 4.55 GHz Max Boost, 6 Cores, 12 Threads, 16 MB Cache)
- AMD Ryzen™ 7 7735U Processor (2.70 GHz up to 4.75 GHz Max Boost, 8 Cores, 16 Threads, 16 MB Cache)
Display:
- 16″ WUXGA (1920 x 1200) IPS, anti-glare, 16:10 aspect ratio, 300nits, 45% NTSC
- 16″ WUXGA (1920 x 1200) IPS, anti-glare, 16:10 aspect ratio, 300nits, 45% NTSC, touchscreen
- 16″ WUXGA (1920 x 1200) IPS, anti-glare, 16:10 aspect ratio, 400nits, 100% sRGB
Memory:
Max memory: Up to 64GB DDR5-4800
Memory slots: Two DDR5 SO-DIMM slots, dual-channel capable
Storage: One M.2 2280 PCIe® 4.0 x4 slot
- M.2 2280 SSD up to 2TB
Graphics:
- AMD Radeon™ 660M (integrated)
- AMD Radeon™ 680M (integrated)
Operating system:
- Windows® 11 Pro
- Windows® 11 Home

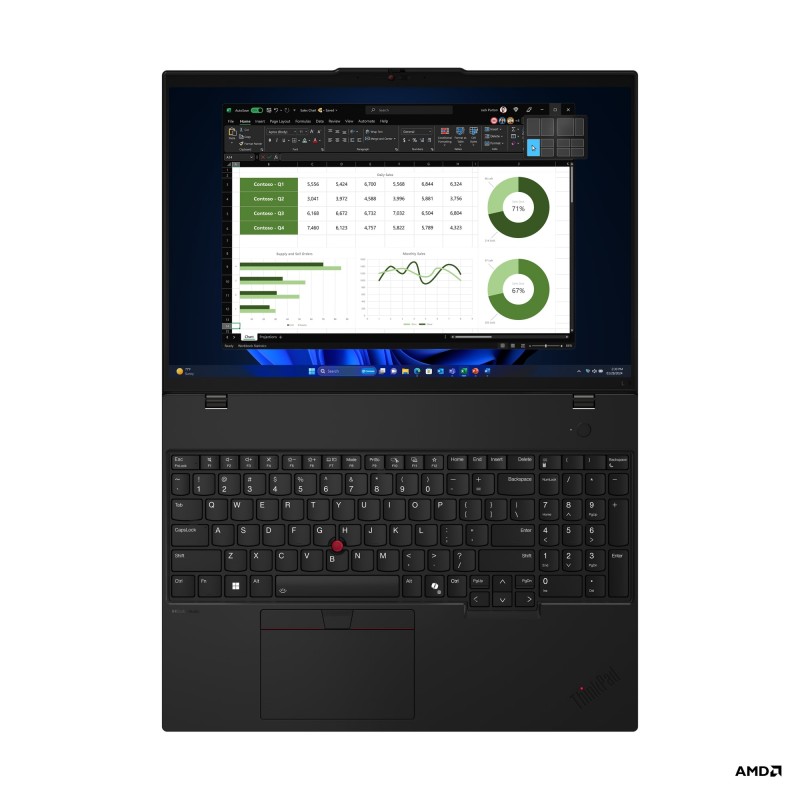

Input device:
Keyboard: 6-row, spill-resistant, multimedia Fn keys, Copilot key
Keyboard Backlight: LED backlight (Optional)
UltraNav:
- TrackPoint® pointing device, double-tap to open the TrackPoint® Quick Menu
- Mylar® surface multi-touch touchpad, 56 x 115 mm
Multi-media:
Audio Chip: High Definition (HD) Audio, Senary SN6147 codec
Speakers: Stereo speakers, 2W x2, Dolby Atmos®
Microphone: Dual-microphone array, far-field, Dolby Voice®
Camera:
- 5.0MP + IR discrete, with privacy shutter, fixed focus, temporal noise reduction
- HD 720p, with privacy shutter, fixed focus
Network:
Ethernet: Gigabit Ethernet, Realtek® RTL8111EPV (DASH models), 1x RJ-45, supports Wake-on-LAN
WLAN + Bluetooth:
Qualcomm® Wi-Fi® 6E NFA725, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3
WWAN: (optional)
- Wireless WAN upgradable to 4G (with antenna ready)
- Quectel EM061K-GL, 4G LTE CAT6, M.2 Card, with embedded eSIM functionality

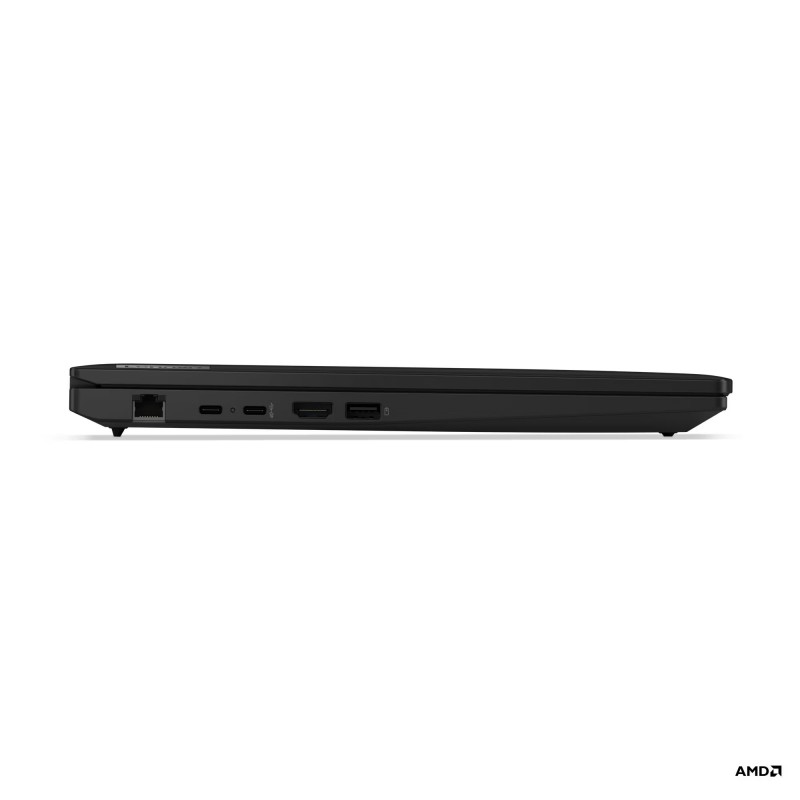

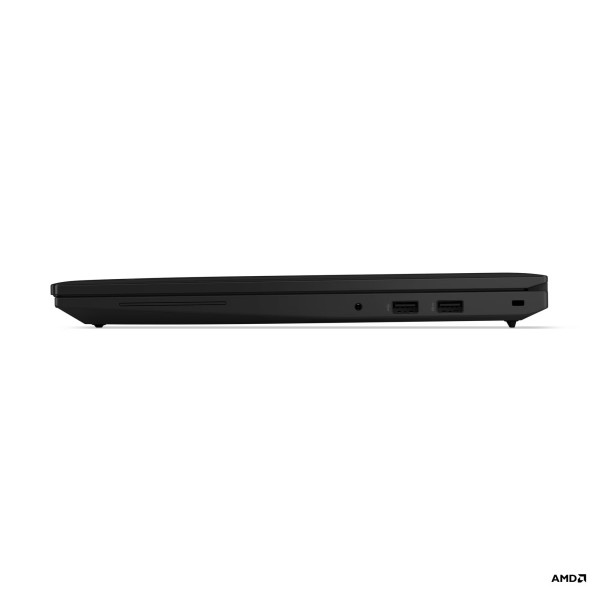

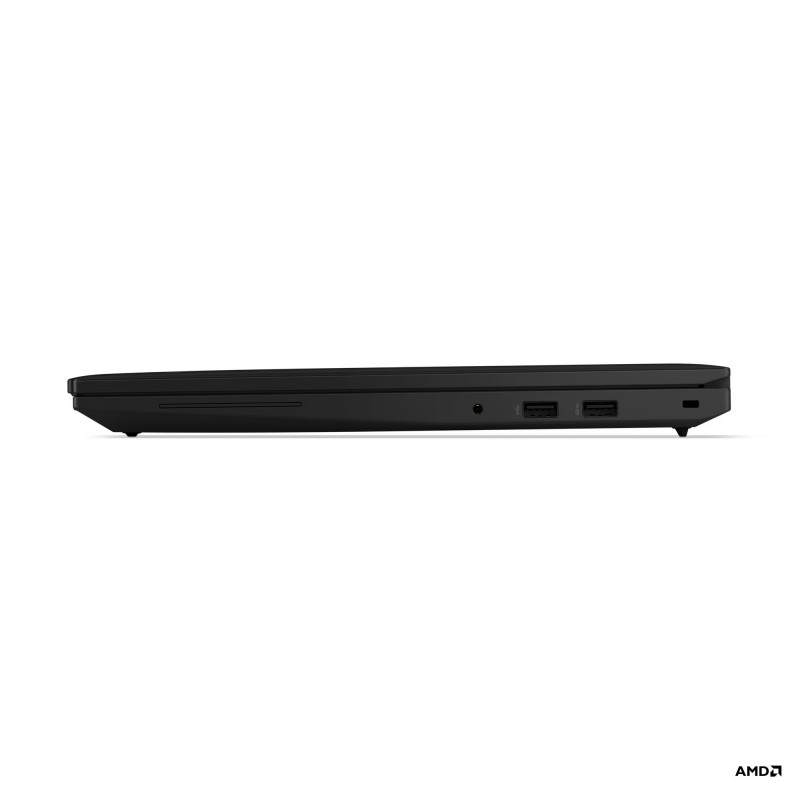

Ports/slots:
Standard Ports:
- 1x USB-A (Hi-Speed USB / USB 2.0)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one Always On
- 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with USB PD 3.0 and DisplayPort™ 1.4
- 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
System Management:
- DASH
Security:
Security Chip: Discrete TPM 2.0 (TCG certified, FIPS 140-2 certified) and Microsoft® Pluton TPM 2.0, one enabled at one time
Physical Locks: Kensington® Nano Security Slot, 2.5 x 6 mm
Smart Card Reader: Smart card reader, supports ISO 7816 and EMV
Fingerprint Reader: Touch style fingerprint reader integrated in power button, match-on-chip (optional)
BIOS Security:
- NVMe® password
- Power-on password
- Supervisor password
- System management password
- Certificate based BIOS authentication
- FIDO (Fast Identity Online) authentication
- Self-healing BIOS
Other Security:
- Camera privacy shutter
- (Optional) IR camera for Windows® Hello (facial recognition)
Battery:
- Integrated Li-Polymer 46.5Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
- Integrated Li-Polymer 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
Monitor Support:
Monitor Support
Supports up to 4 independent displays (native display and 3 external monitors via HDMI®, USB-C® and USB4®)
- HDMI® supports up to 4K@60Hz
- USB-C® supports up to 5K@120Hz
- USB4® supports up to 5K@120Hz
Mechanical:
Dimensions (WxDxH): 357.2 x 253.4 x 20.78 mm
Weight: Starting at 1.77 kg
Case Color: Black
What's in the Box:
- ThinkPad L16 Gen 1 (16” AMD)
- 65W USB-C® AC Adapter (Supports Rapid Charge)
- Quick Start Guide
