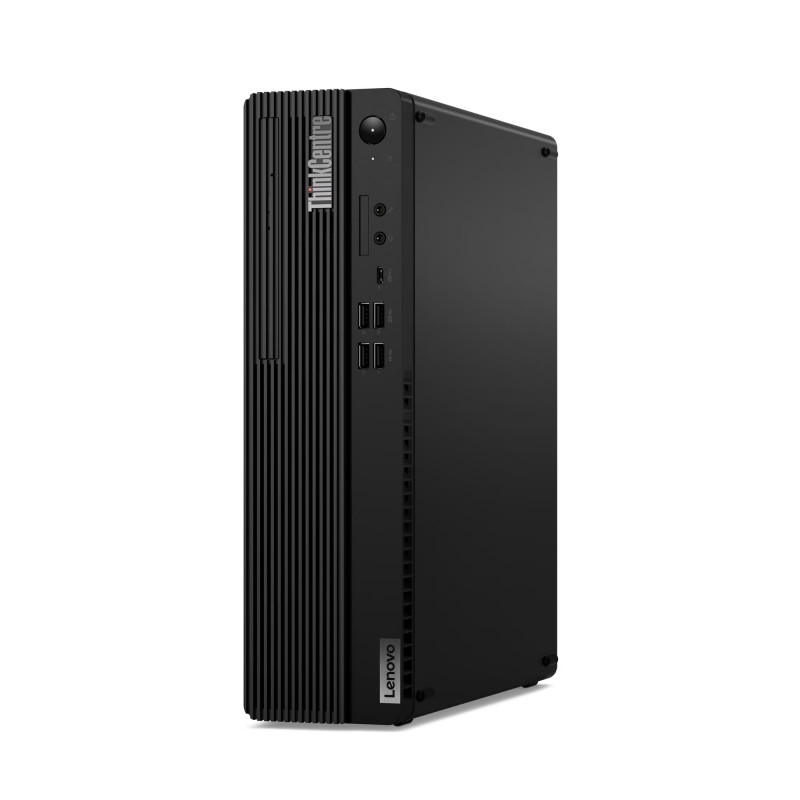

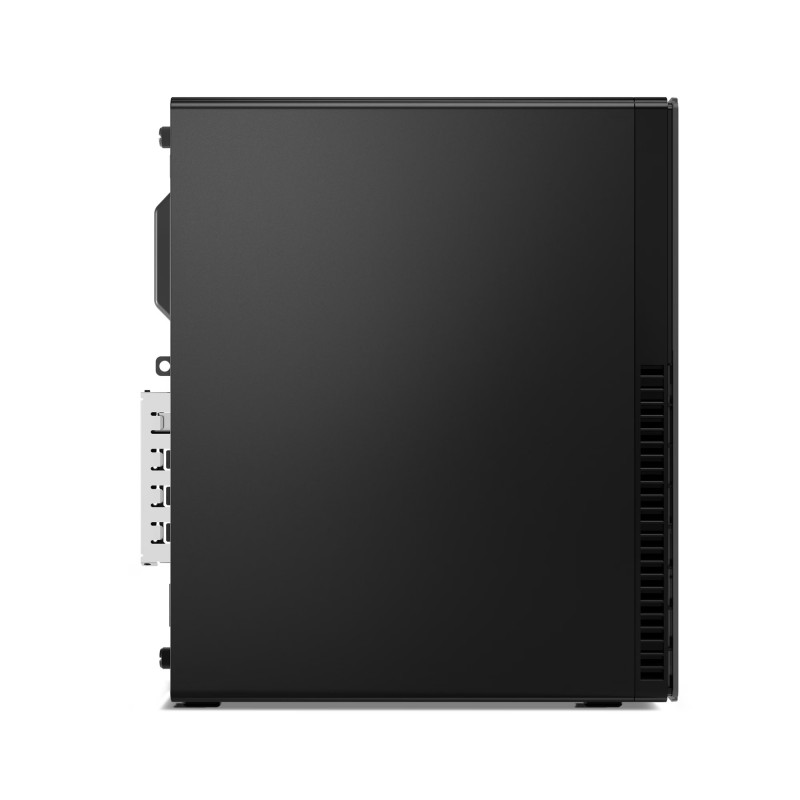

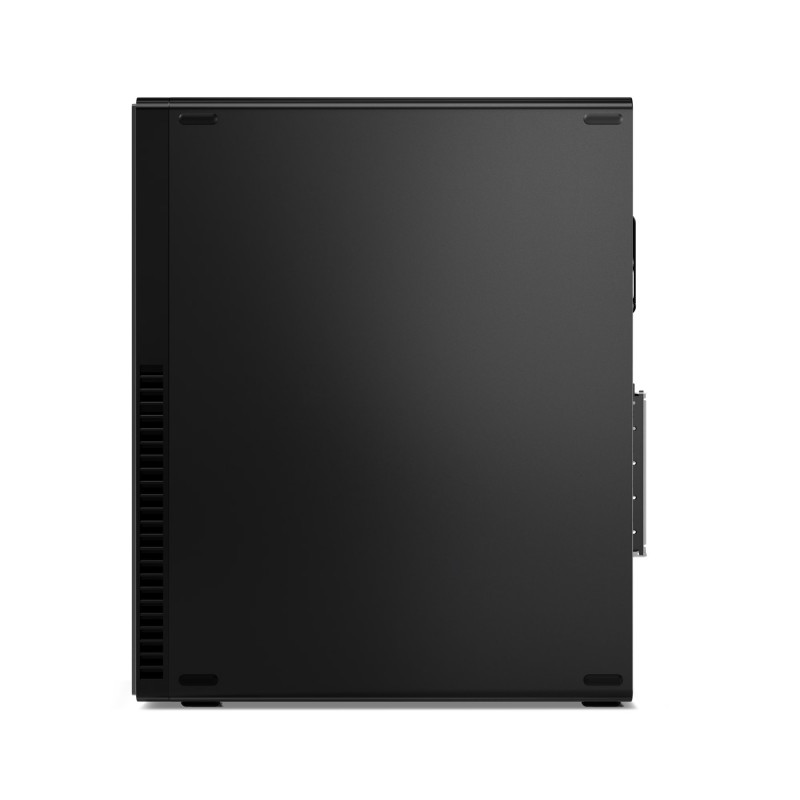

Lenovo ThinkCentre M70s Gen 5 SFF

Processor:

• 13th Generation Intel® Core™ i3-13100 Processor (P-Core Max 4.50 GHz with Turbo Boost, 4 Cores, 8 Threads, 12 MB Cache, Intel® UHD Graphics 730)
• 13th Generation Intel® Core™ i5-13400 Processor (E-Core Max 3.30 GHz, P-Core Max 4.60 GHz with Turbo Boost, 10 Cores, 16 Threads, 20 MB Cache, Intel® UHD Graphics 730)
• 13th Generation Intel® Core™ i5-13500 Processor (E-Core Max 3.50 GHz, P-Core Max 4.80 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache, Intel® UHD Graphics 770)
• 13th Generation Intel® Core™ i7-13700 Processor (E-Core Max 4.10 GHz, P-Core Max 5.20 GHz with Turbo Boost, 16 Cores, 24 Threads, 30 MB Cache, Intel® UHD Graphics 770)
• 14th Generation Intel® Core™ i3-14100 Processor (P-Core Max 4.70 GHz with Turbo Boost, 4 Cores, 8 Threads, 12 MB Cache, Intel® UHD Graphics 730)
• 14th Generation Intel® Core™ i5-14400 Processor (E-Core Max 3.50 GHz, P-Core Max 4.70 GHz with Turbo Boost, 10 Cores, 16 Threads, 20 MB Cache, Intel® UHD Graphics 730)
• 14th Generation Intel® Core™ i5-14400F Processor (E-Core Max 3.50 GHz, P-Core Max 4.70 GHz with Turbo Boost, 10 Cores, 16 Threads, 20 MB Cache, No Integrated Graphics)
• 14th Generation Intel® Core™ i5-14500 Processor (E-Core Max 3.70 GHz, P-Core Max 5.00 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache, Intel® UHD Graphics 770)
• 14th Generation Intel® Core™ i5-14600 Processor (E-Core Max 3.90 GHz, P-Core Max 5.20 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache, Intel® UHD Graphics 770)
• 14th Generation Intel® Core™ i7-14700 Processor (E-Core Max 4.20 GHz, P-Core Max 5.30 GHz with Turbo Boost, 20 Cores, 28 Threads, 33 MB Cache, Intel® UHD Graphics 770)
• 14th Generation Intel® Core™ i7-14700F Processor (E-Core Max 4.20 GHz, P-Core Max 5.30 GHz with Turbo Boost, 20 Cores, 28 Threads, 33 MB Cache, No Integrated Graphics)
• Intel® 300 Processor (P-Core Max 3.90 GHz, 2 Cores, 4 Threads, 6 MB Cache, Intel® UHD Graphics 710)

Memory:

• Max Memory: Up to 64GB DDR5
• Memory Slots: Two DDR5 UDIMM slots, dual-channel capable
• Memory Type: DDR5-4800 / DDR5-5200 / DDR5-5600

Storage:

Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD

• 3.5" HDD up to 2TB
• 2.5" HDD bay is only for customer self-upgrade
• M.2 SSD up to 2TB each

Graphics:

Integrated graphics:

• Intel UHD Graphics 710
• Intel UHD Graphics 730
• Intel UHD Graphics 770

Discrete Graphics Support: Intel® Arc™ A310 LP Graphics (4GB GDDR6)

Chipset: Intel Q670 Chipset

Operating System:

• Windows® 11 Pro 64
• Windows 11 Home 64

Input Device:

Keyboard: USB Traditional Keyboard, Black, Slovenian

Mouse: USB Calliope Mouse, Black

Multi-Media:

Audio Chip: High Definition (HD) Audio, Realtek® ALC623-CG codec

Speakers: Single speaker, 1W x1

Network:

Onboard Ethernet: Gigabit Ethernet, Intel® Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN

Optional Ethernet: 2.5 Gigabit Ethernet, Realtek® RTL8125BGS, 1x RJ-45, PCIe® x1

WLAN + Bluetooth:

• Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
• Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 Card
• Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support, M.2 Card
• No WLAN and Bluetooth

Ports/Slots:

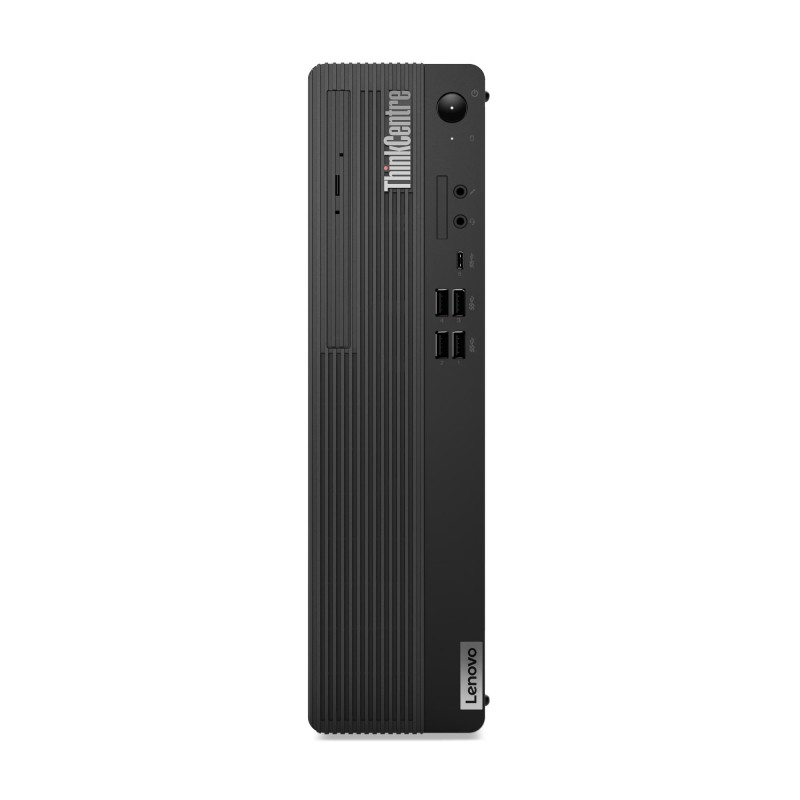

Front Ports:

• 1x USB-C 3.2 Gen 2 (support data transfer and 15W charging)
• 4x USB 3.2 Gen 1
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

Optional Front Ports:

• 1x card reader

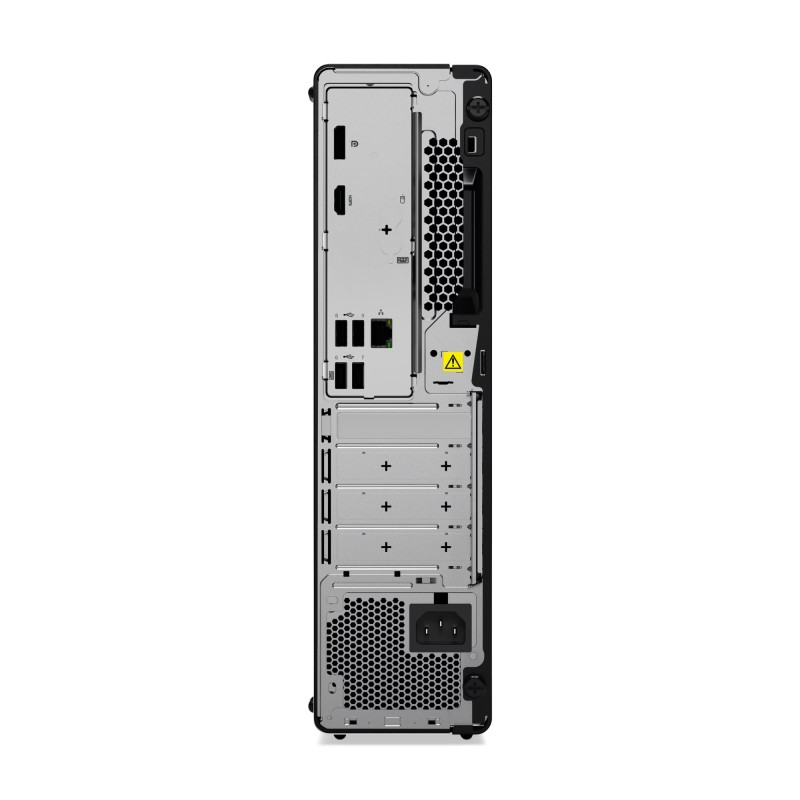

Rear Ports:

• 4x USB 3.2 Gen 1
• 1x HDMI 2.1 TMDS
• 2x DisplayPort™ 1.4
• 1x Ethernet (RJ-45)

Optional Rear Ports:

• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), via 2-port USB expansion card, PCIe® x1
• 1x parallel
• 1x serial
• 1x 2nd serial
• 4x serial (via 4-port serial expansion card, PCIe® x1)
• 2x PS/2

System Management:

• Intel vPro Enterprise
• Non-vPro

Security:

Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Physical Locks:

• (Optional) E-lock
• (Optional) Smart Cable Clip
• Kensington® Security Slot, 3 x 7 mm
• Padlock Loop

Chassis Intrusion Switch: Chassis intrusion switch

BIOS Security:

• Administrator password
• Hard disk password
• Power-on password
• Boot sequence control
• Boot without keyboard and mouse
• Certificate based BIOS authentication
• Individual USB port disablement
• Self-healing BIOS
• Smart USB protection (allows keyboard / mouse only, blocks all storage devices)

Power Supply:

• 180W, Fixed, 85% Efficiency
• 260W, Fixed, 90% Efficiency
• 310W, Fixed, 92% Efficiency

Monitor Support: Supports up to 2 independent displays via onboard ports (1x DP and 1x HDMI®), more displays support via discrete graphics

Mechanical:

Form Factor: SFF (8.2L)

Dimensions (WxDxH): 92.5 x 297.7 x 339.5 mm

Weight: Around 7.6 kg

Bays:

• 1x 2.5" disk bay
• 1x 3.5" disk bay
• 1x slim ODD bay

Expansion slots:

• One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
• One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
• Two M.2 slots (one for WLAN, one for SSD)

EOU: Toolless cover, disk, optical, extension card assembly / removal

Stand:

• Vertical stand
• No stand

Others

• (Optional) Dust filter
• Supports Smart Power On

What's in the Box:

• ThinkCentre M70s Gen 5 (Intel)
• USB Keyboard
• USB Mouse
• Quick Start Guide
