Processor:
- 14th Generation Intel® Core™ i3-14100T Processor (P-Core Max 4.40 GHz with Turbo Boost, 4 Cores, 8 Threads, 12 MB Cache)
- 14th Generation Intel® Core™ i5-14400T Processor (E-Core Max 3.20 GHz, P-Core Max 4.50 GHz with Turbo Boost, 10 Cores, 16 Threads, 20 MB Cache)
- 14th Generation Intel® Core™ i5-14500T Processor with vPro® (E-Core Max 3.40 GHz, P-Core Max 4.80 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
- 14th Generation Intel® Core™ i5-14600T Processor with vPro® (E-Core Max 3.60 GHz, P-Core Max 5.10 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
- 14th Generation Intel® Core™ i7-14700T Processor with vPro® (E-Core Max 3.70 GHz, P-Core Max 5.00 GHz with Turbo Boost, 20 Cores, 28 Threads, 33 MB Cache)
Memory:
Max Memory: Up to 64GB DDR5-5600
Memory Slots: Two DDR4 SO-DIMM slots, dual-channel capable
Memory Type:
- DDR5-4800
- DDR5-5200
- DDR5-5600
Storage:
Dual SSD mode: up to two drives, 2x M.2 SSD
M.2 2280 SSD up to 2TB
M.2 support:
- M.2 2280 SSD PCIe NVMe, PCIe 4.0 x4 Opal 2 Perfomance
- M.2 2280 SSD PCIe NVMe, PCIe 4.0 x4 Opal 2
Graphics:
- Integrated Intel UHD graphics 710
- Integrated Intel UHD graphics 730
- Integrated Intel UHD graphics 770
Chipset: Intel Q670 Chipset
Operating System:
- Windows® 11 Pro 64
- Windows 11 Home 64
- Windows 11 DG Windows 10 Pro 64
- Ubuntu Linux
- No operating system
Input Device:
Keyboard: USB Traditional Keyboard, Black, Slovenian
Mouse: USB Calliope Mouse, Black
Multi-Media:
Audio Chip: High Definition (HD) Audio, Realtek® ALC256VB codec or Conexant CX11771 codec
Speakers: Single speaker, 2W x1
Network:
Onboard Ethernet: Gigabit Ethernet, Intel Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN
WLAN + Bluetooth:
- Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
- Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 Card
- Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support, M.2 Card
- No WLAN and Bluetooth®
Ports/Slots:

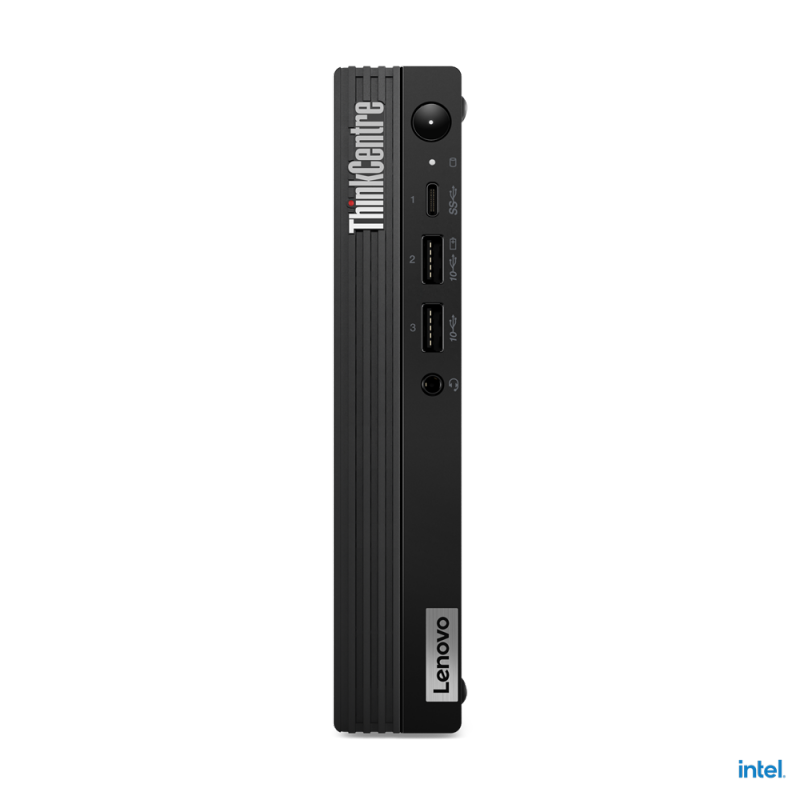

Front Ports:
- 1x USB-C® (3.2 Gen 1), with 5V@0.9A charging
- 1x USB-A (USB 3.2 Gen 2), with Always On and 5V@2.1A charging
- 1x USB-A (USB 3.2 Gen 2)
- 1x headphone / microphone combo jack (3.5mm)

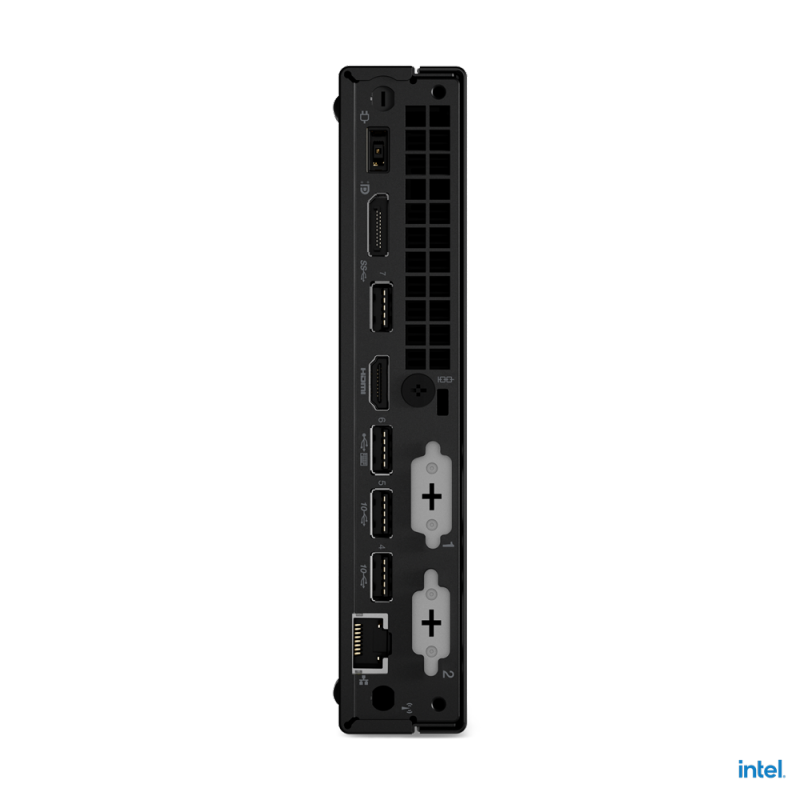

Rear Ports:
- 1x USB 2.0
- 1x USB 3.2 Gen 1
- 2x USB 3.2 Gen 2
- 1x HDMI 2.1 TMDS
- 1x DisplayPort 1.4
- 1x Ethernet (RJ-45)
Optional Rear Ports:
- Punch out port 1 (one of VGA / DisplayPort / HDMI / serial / USB-C 2.0 with DisplayPort function and 100W PD in)
- Punch out port 2 (one of VGA / DisplayPort / HDMI / serial / RJ-45
System Management:
- Intel vPro Essentials
- Non-vPro
Security:
Security Chip: Discrete TPM 2.0, TCG certified
Physical Locks: Kensington® Security Slot, 3 x 7 mm
Chassis Intrusion Switch: Chassis intrusion switch
BIOS Security:
- Administrator password
- Hard disk password
- Power-on password
- Boot sequence control
- Certificate based BIOS authentication
- Cover presence switch
- Individual USB port disablement
- Secure Boot
- Secure Wipe
- Self-healing BIOS
- Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
Power Supply:
- 65W / 90W / 135W AC Adapter, 89% Efficiency, Autosensing
- 300W Fixed 90% Efficiency, Autosensing
Monitor Support:
Supports up to 4 independent displays via (onboard DP, onboard HDMI®, 2x optional punch out port)
Mechanical:
Form Factor: Tiny (1L)
Dimensions (WxDxH): 179 x 182.9 x 36.5 mm with rubber feet
Weight: Around 1.25 kg
Case Color: Raven black
Expansion slots: Two M.2 slots (one for WLAN, two for SSD)

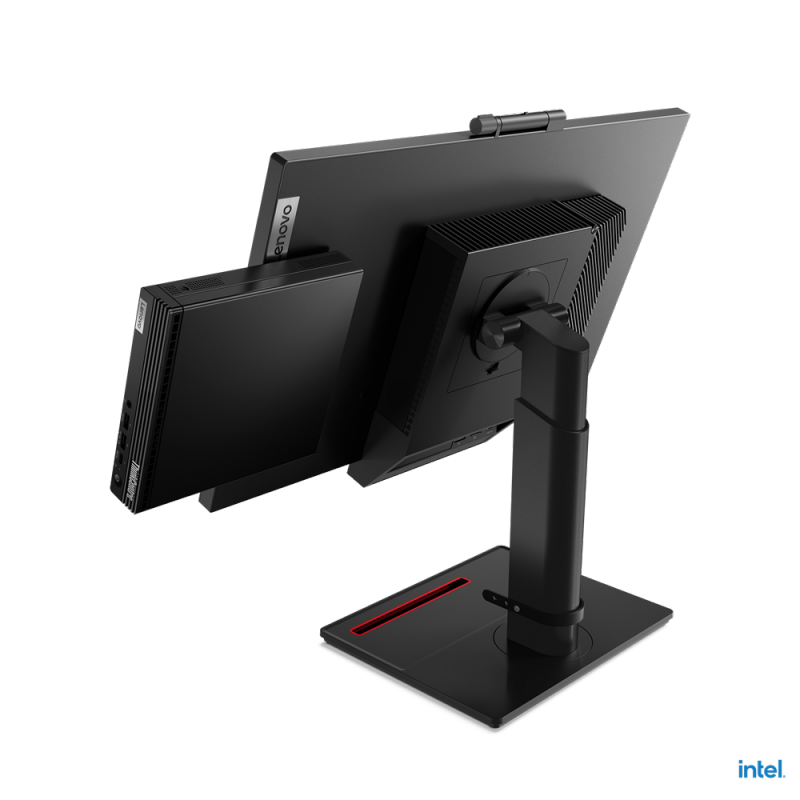

Mounting: VESA mount bracket kit, supports VESA 75x75 and 100x100
What's in the Box:
- ThinkCentre M70q Gen 5 (Intel)
- Power supply
- USB Traditional Keyboard, Black, Slovenian
- USB Calliope Mouse, Black
- Quick Start Guide
