Lenovo ThinkPad L16 Gen 1 (Intel)
Processors:
|
Display:
- 16″ WUXGA (1920 x 1200) IPS, anti-glare, 16:10 aspect ratio, 300nits, 45% NTSC
- 16″ WUXGA (1920 x 1200) IPS, anti-glare, 16:10 aspect ratio, 300nits, 45% NTSC, touchscreen
- 16″ WUXGA (1920 x 1200) IPS, anti-glare, 16:10 aspect ratio, 400nits, 100% sRGB
Memory:
Max memory: Up to 64GB DDR5-5600
Memory slots: Two DDR5 SO-DIMM slots, dual-channel capable
Storage: One M.2 2280 PCIe® 4.0 x4 slot
- M.2 2280 SSD up to 2TB
Graphics:
- Intel® Arc™ Graphics (integrated)
- Intel® Graphics (integrated)
Operating system:
- Windows® 11 Pro
- Windows® 11 Home
Input device:
Keyboard: 6-row, spill-resistant, multimedia Fn keys, Copilot key
Keyboard Backlight: LED backlight (Optional)
UltraNav:
- TrackPoint® pointing device, double-tap to open the TrackPoint® Quick Menu
- Mylar® surface multi-touch touchpad, 56 x 115 mm
Multi-media:
Audio Chip: High Definition (HD) Audio, Senary SN6147 codec
Speakers: Stereo speakers, 2W x2, Dolby Atmos®
Microphone: Dual-microphone array, far-field, Dolby Voice®
Camera:
- 5.0MP + IR discrete, with privacy shutter, fixed focus, temporal noise reduction
- HD 720p, with privacy shutter, fixed focus
Network:
Ethernet:
- Gigabit Ethernet, Intel® Ethernet Connection I219-LM (vPro® models), 1x RJ-45, supports Wake-on-LAN
- Gigabit Ethernet, Intel® Ethernet Connection I219-V (non-vPro® models), 1x RJ-45, supports Wake-on-LAN
WLAN + Bluetooth:
- Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3[2]
- Intel® Wi-Fi® 7 BE200, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.3 (Bluetooth® 5.4 hardware ready)
WWAN: (optional)
- Wireless WAN upgradable to 4G (with antenna ready)
- Quectel EM061K-GL, 4G LTE CAT6, M.2 Card, with embedded eSIM functionality

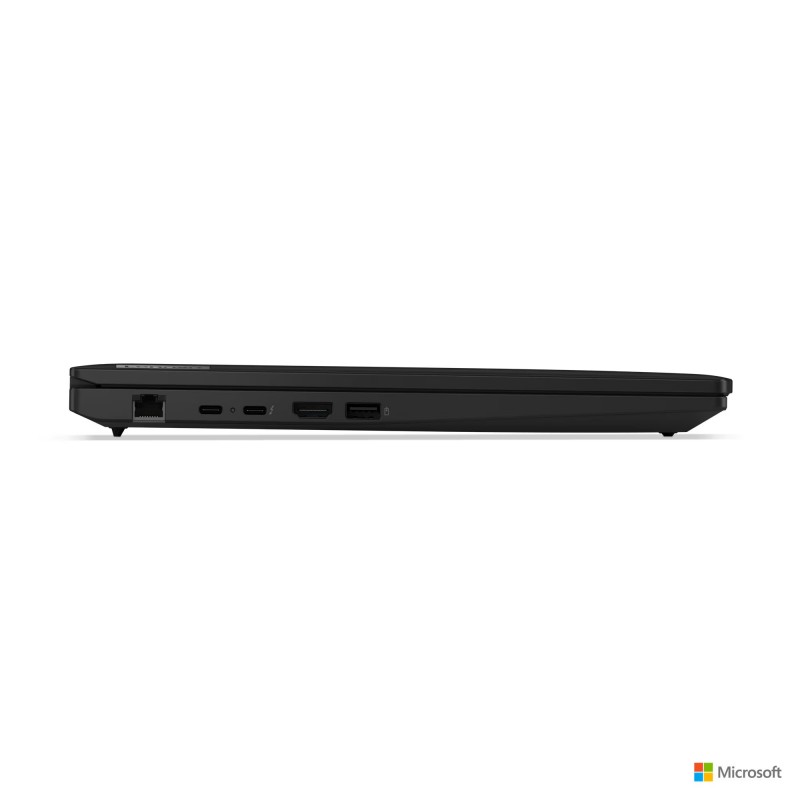

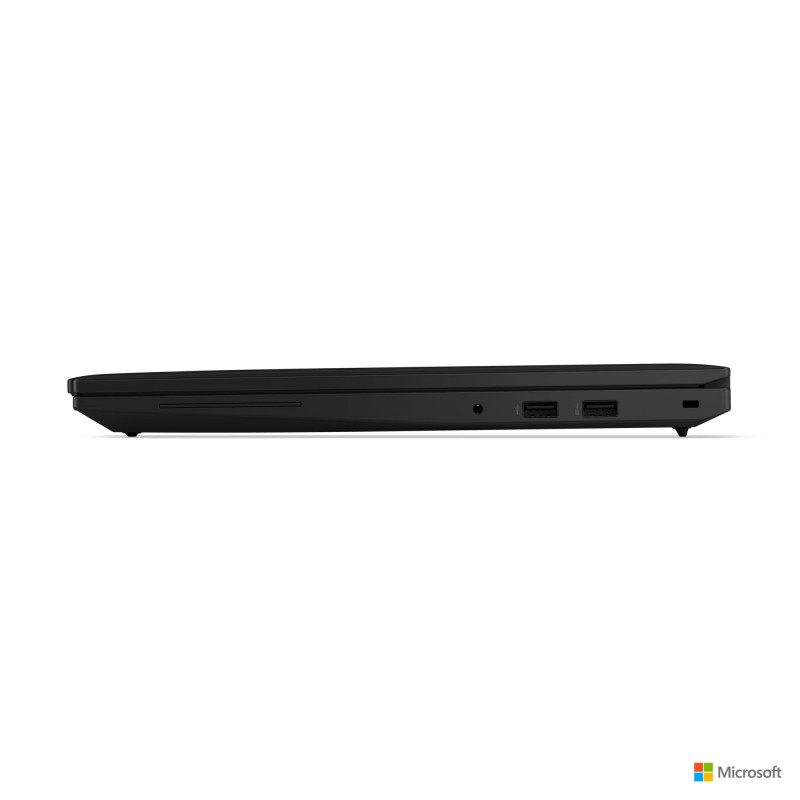

Ports/slots:
Standard Ports:
- 1x USB-A (Hi-Speed USB / USB 2.0)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one Always On
- 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), with USB PD 3.0 and DisplayPort™ 1.4
- 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
System Management:
- Intel® vPro® Enterprise
- Intel® vPro® Essentials
- Non-vPro®
Security:
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks: Kensington® Nano Security Slot, 2.5 x 6 mm
Smart Card Reader: Smart card reader, supports ISO 7816 and EMV
Fingerprint Reader: Touch style fingerprint reader integrated in power button, match-on-chip (optional)
BIOS Security:
- NVMe® password
- Power-on password
- Supervisor password
- System management password
- Certificate based BIOS authentication
- FIDO (Fast Identity Online) authentication
- Self-healing BIOS
Other Security:
- Camera privacy shutter
- (Optional) IR camera for Windows® Hello (facial recognition)
Battery:
- Integrated Li-Polymer 46.5Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
- Integrated Li-Polymer 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter
Monitor Support:
Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and Thunderbolt™)
- HDMI® supports up to 4K@60Hz
- USB-C® supports up to 5K@60Hz
- Thunderbolt™ supports up to 8K@60Hz
Mechanical:
Dimensions (WxDxH): 357.2 x 253.4 x 20.78 mm
Weight: Starting at 1.77 kg
Case Color: Black
What's in the Box:
- ThinkPad L16 Gen 1 (16” Intel)
- 65W USB-C® AC Adapter (Supports Rapid Charge)
- Quick Start Guide
