DISPLAY CHARACTERISTICS
Design: Thin bezel
Diagonal: 97.5", 247,7cm
Panel: IPS, haze 1%
Native resolution: 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio: 16:9
Panel brightness: 500 cd/m²
Static contrast: 1300:1
Response time (GTG): 8ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support: 1.07B 8bit+FRC
Pixel pitch: 0.5622mm
INTERFACES / CONNECTORS / CONTROLS
Analog signal input: 1x VGA (DVI-I: VGA + DVI)
Digital signal input: 1x DVI (max. 1920x1080 @60Hz); 3x HDMI (v.2.0, max. 3840x2160 @60Hz); 1x DisplayPort (v.1.4, max. 3840x2160 @60Hz)
Audio input: 1x Mini jack (3.5mm)
Monitor control input: 1x RS-232c; 1x RJ45 (LAN); 1x IR (3.5mm stereo mini)
Digital signal output: 1x DisplayPort (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2)
Audio output: 1x RCA (L/R); Speakers 2 x 10W
Monitor control output: 1x RS-232c; 1x IR loop through (3.5mm stereo mini)
HDCP: v.2.2
USB ports: 2x USB 2.0
FEATURES
Integrated software: Android OS 8.0, EShare, FailOver
Hardware: CPU: MTK96B+MSB6000, CA73*2+A53*2, Memory: 3GB DDR4, Storage: 32GB eMMC
Extra: OPS PC slot, micro SD card slot
Max. non-stop operating time: 24/7
Anti image retention: yes
Media playback: yes
Housing (bezel): metal
GENERAL
OSD languages: EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL

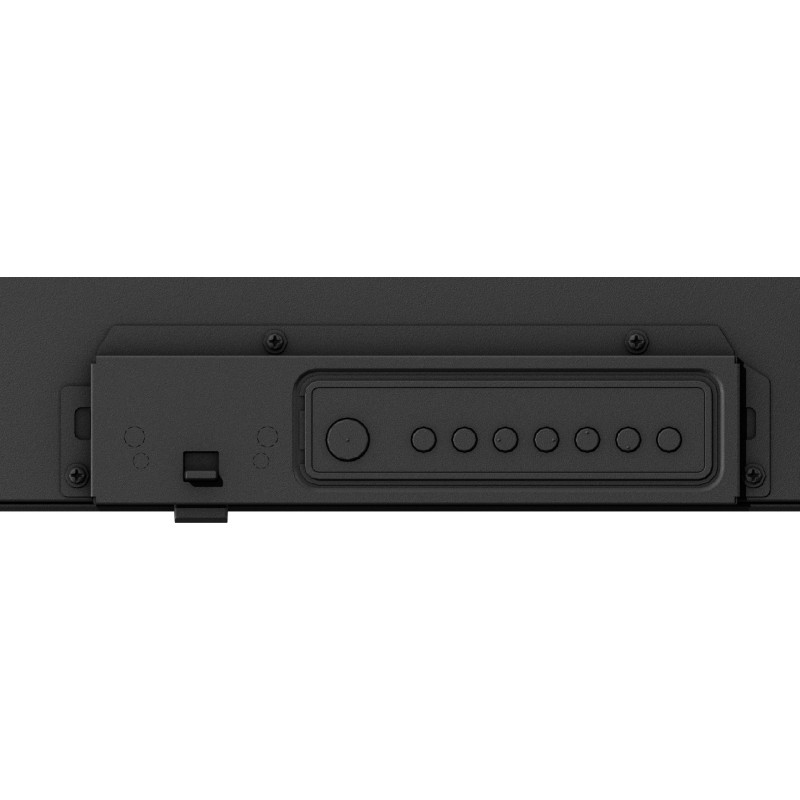

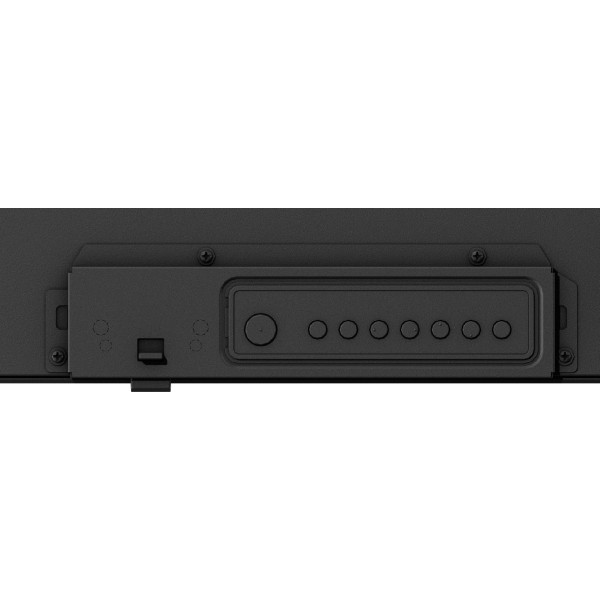

Control buttons: Power, Mute, Input, Plus, Minus, Up, Down, Menu
Plug&Play: DDC2B
MECHANICAL
Orientation: landscape, portrait

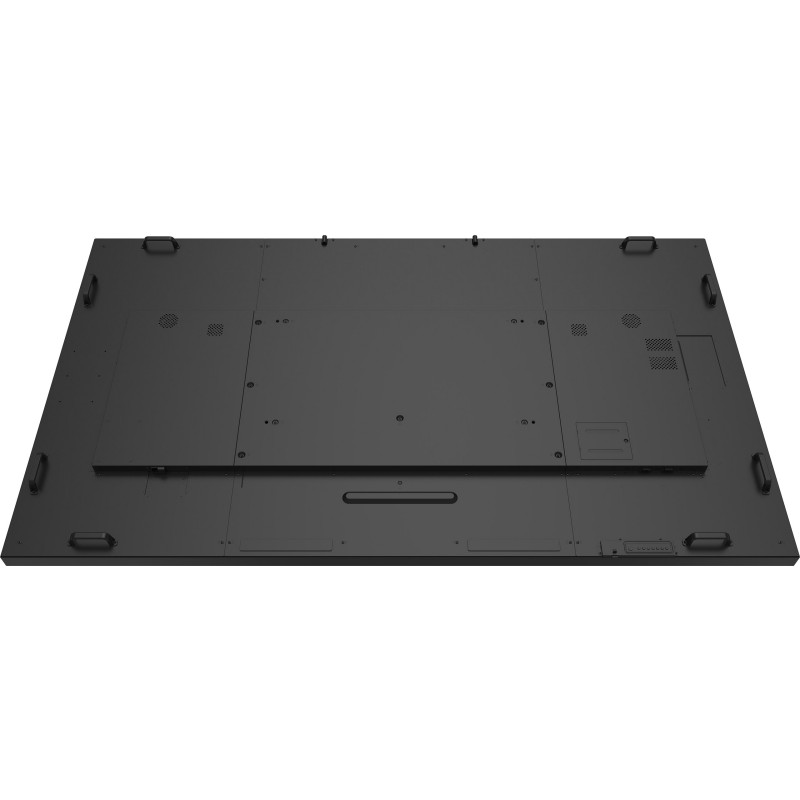

VESA mounting: 800 x 400mm
Operation temperature range: 0°C - 40°C
DIMENSIONS / WEIGHT
Product dimensions (W x H x D): 2193 x 1248 x 88.5mm
Weight: 91.4kg
POWER MANAGEMENT
Power supply unit: internal
Power supply: AC 100 - 240V, 50/60Hz
Power usage: 347W typical, 0.5W stand by, 0.5W off mode
ACCESSORIES INCLUDED
Cables: power, HDMI, RS-232c
Guides: quick start guide, safety guide
Other: Stickers for screw holes
Remote control : yes (batteries included)
