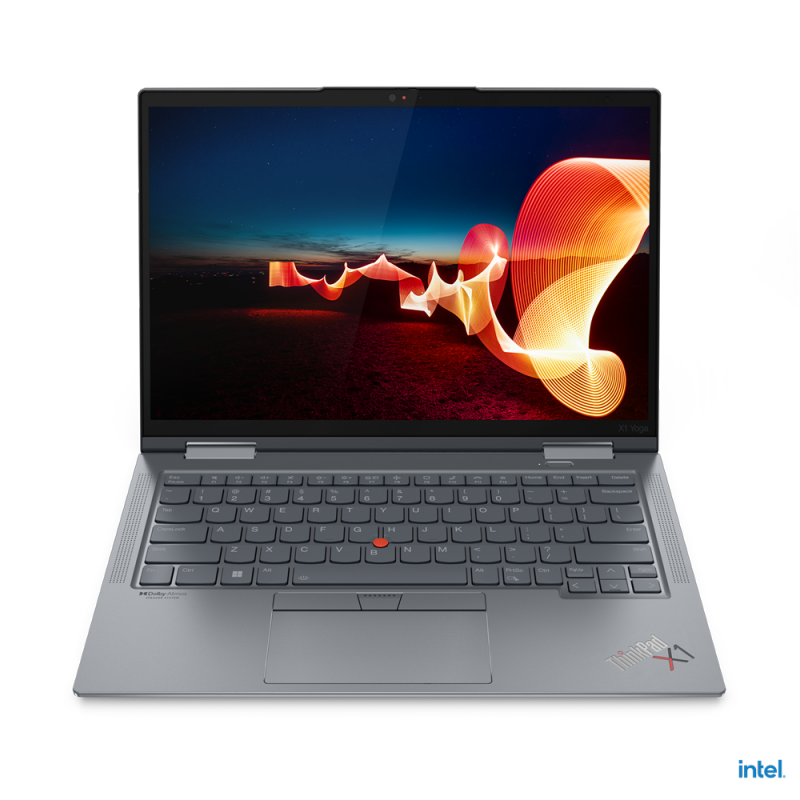

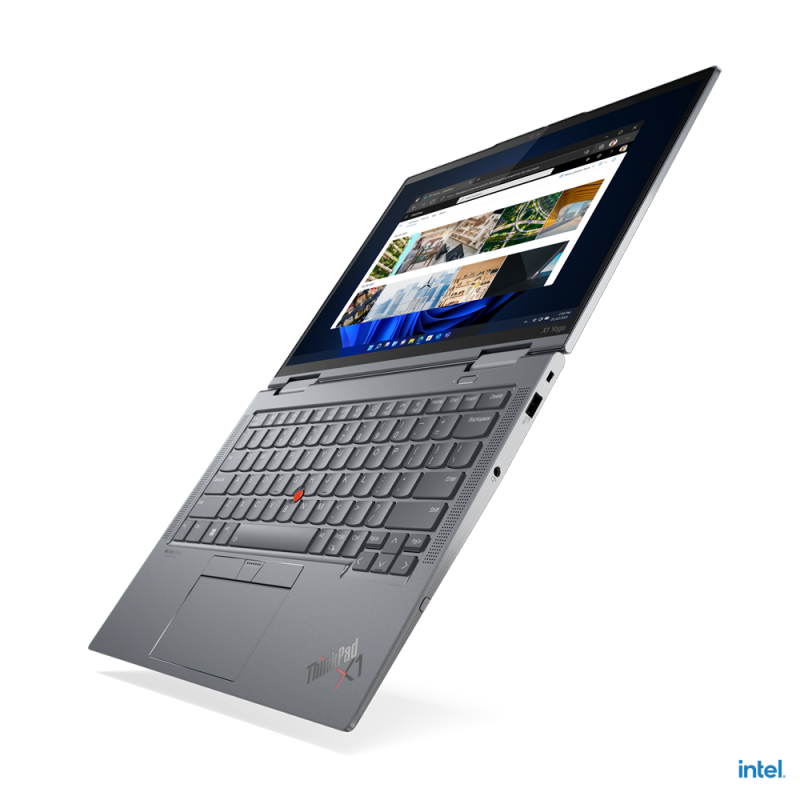

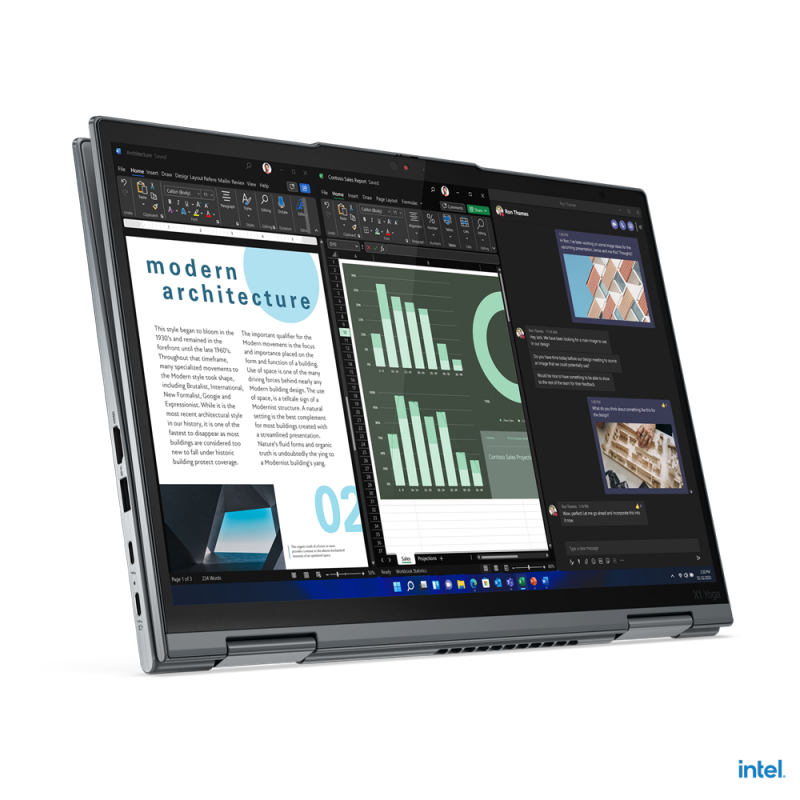

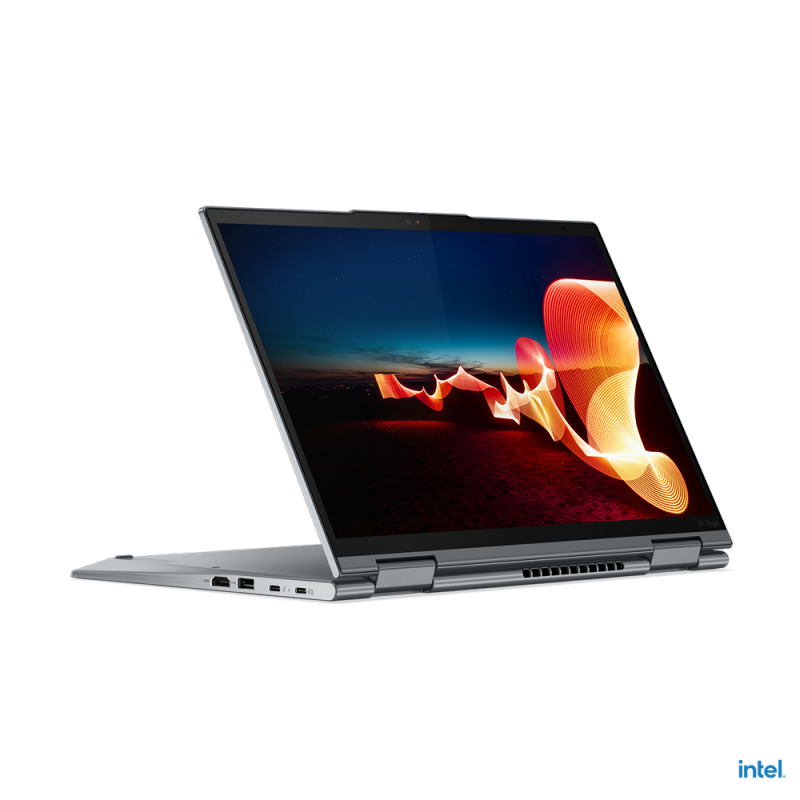

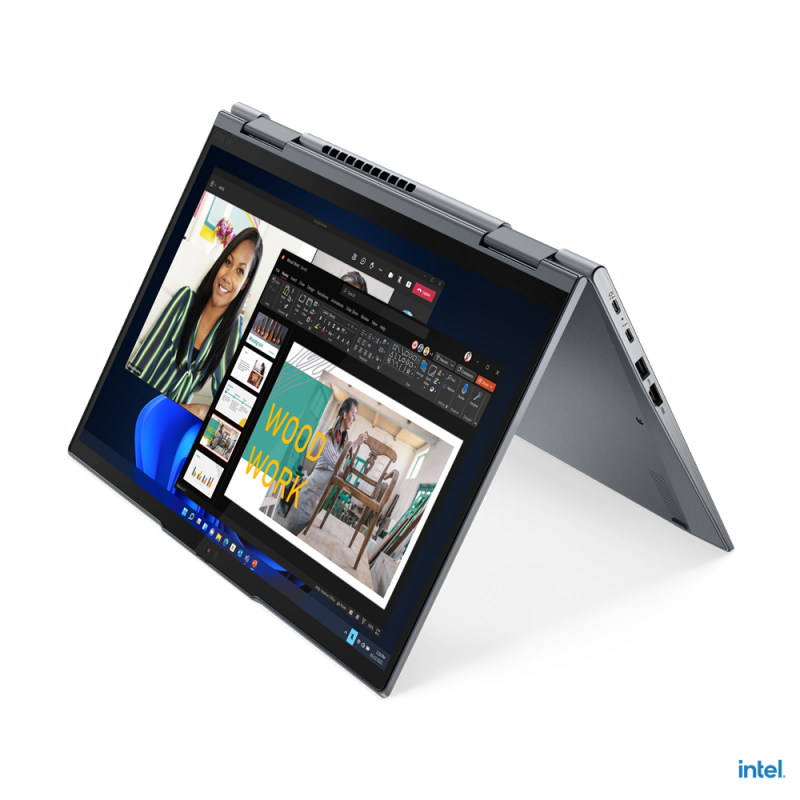

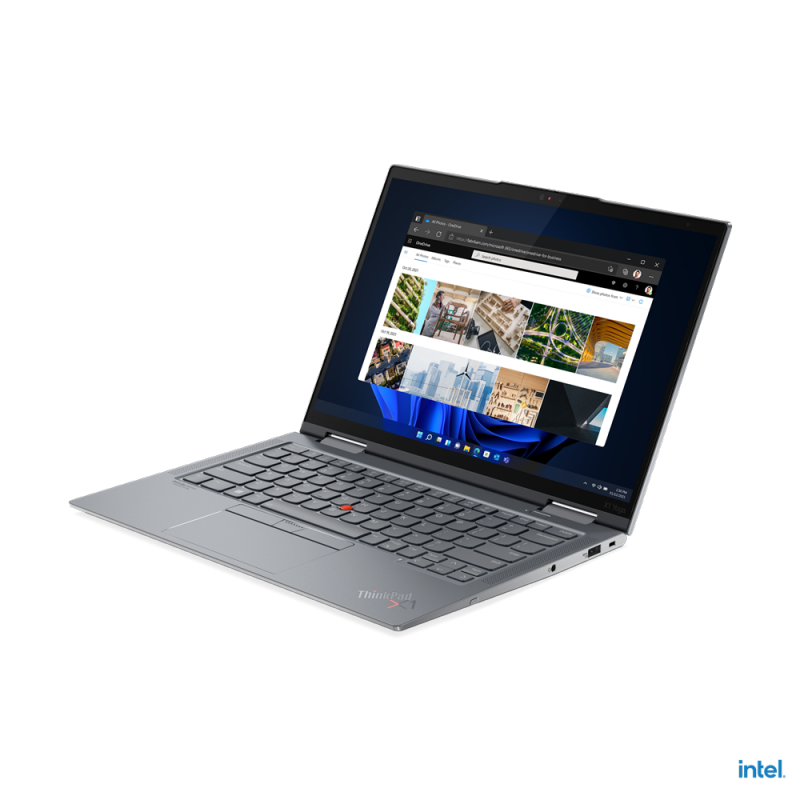

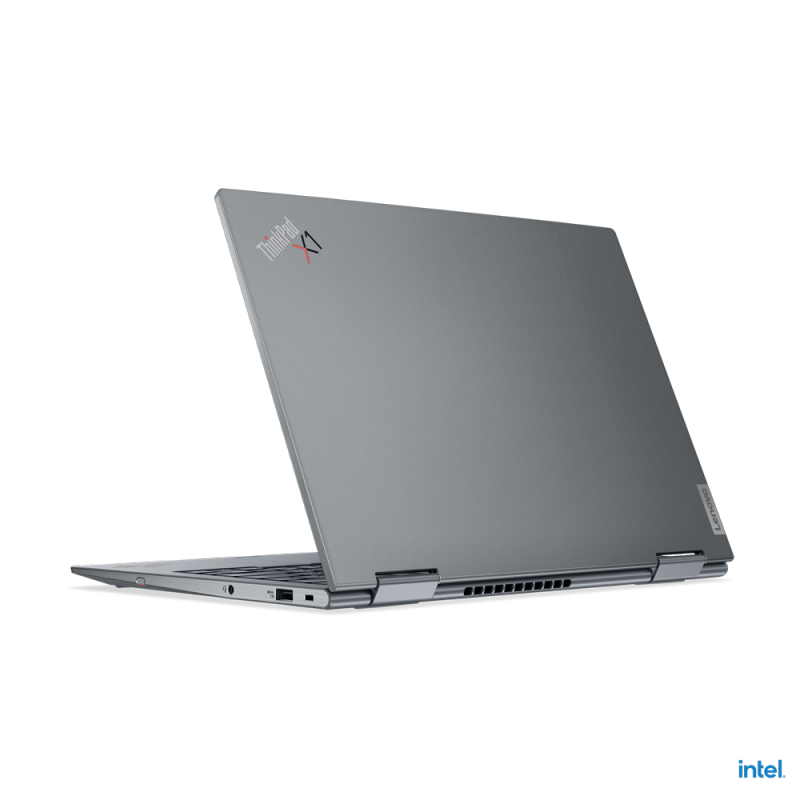

Lenovo ThinkPad X1 Yoga Gen 7

Processor: 12th Generation Intel® Core™ i5 / i7 Processor

Display:

• 14" WQUXGA (3840x2400) Low Power OLED 500nits AR (anti-reflection) / AS (anti-smudge), Touch, HDR 400, Dolby Vision
• 14" WUXGA (1920x1200) IPS 500nits Anti-glare, Touch, ThinkPad Privacy Guard
• 14" WUXGA (1920x1200) Low Power IPS 400nits Anti-glare, Touch

Memory:

Max Memory:

• 8GB soldered memory, not upgradable, LPDDR5-5200
• 16GB soldered memory, not upgradable, LPDDR5-5200
• 32GB soldered memory, not upgradable, LPDDR5-5200

Memory Slots: Memory soldered to systemboard, no slots, 8-channel

Storage: One drive, up to 2TB M.2 2280 SSD PCIe® Gen 4x4 Opal2, supports M.2 2242/2280 SSD

Graphics:

• Integrated Intel® Iris® Xe Graphics

Operating System:

• Windows® 11 Pro 64
• Windows 11 Home 64
• Windows 11 DG Windows 10 Pro 64
• Linux
• Ubuntu Linux
• No operating system

Input Device:

Pen: Lenovo Integrated Pen, with built-in rechargeable battery, 4096 levels of pressure sensitivity, on-board garaged and rechargeable

Keyboard: 6-row, spill-resistant, air intake design, multimedia Fn keys with Unified Communications controls

Keyboard Backlight: LED backlight

UltraNav™: TrackPoint® pointing device and glass surface multi-touch touchpad, 56 x 110 mm (2.20 x 4.33 inches)

Multi-Media:

Audio Chip: High Definition (HD) Audio, Realtek® ALC3306 codec

Speakers: Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby® Atmos®

Microphone: Four microphones, quad-array, 360° far-field, Dolby Voice

Camera:

• FHD 1080p, with privacy shutter, fixed focus
• IR & FHD 1080p hybrid, with privacy shutter, fixed focus
• IR & FHD 1080p discrete, MIPI, with privacy shutter & Computer Vision, fixed focus

Network:

WLAN + Bluetooth: Intel Wi-Fi 6E AX211, 802.11ax 2x2 Wi-Fi + Bluetooth 5.2

WWAN:

• Wireless WAN upgradable to 4G (with antenna ready)
• Fibocom L860-GL-16, 4G LTE CAT16, MIMO 4x4, M.2 card
• Fibocom FM350-GL 5G NR module with embedded eSIM functionality, M.2 Card

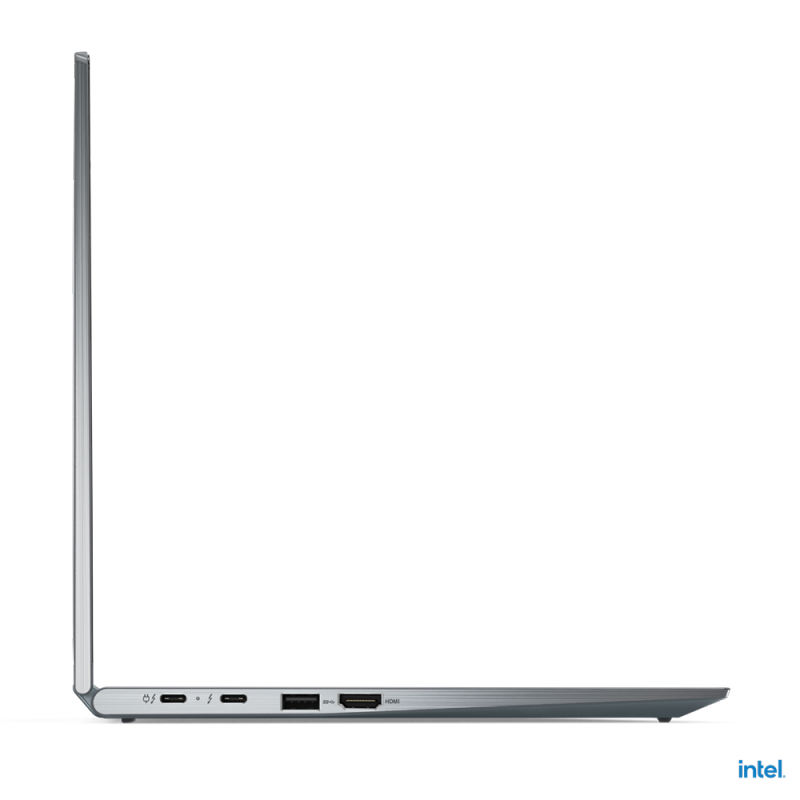

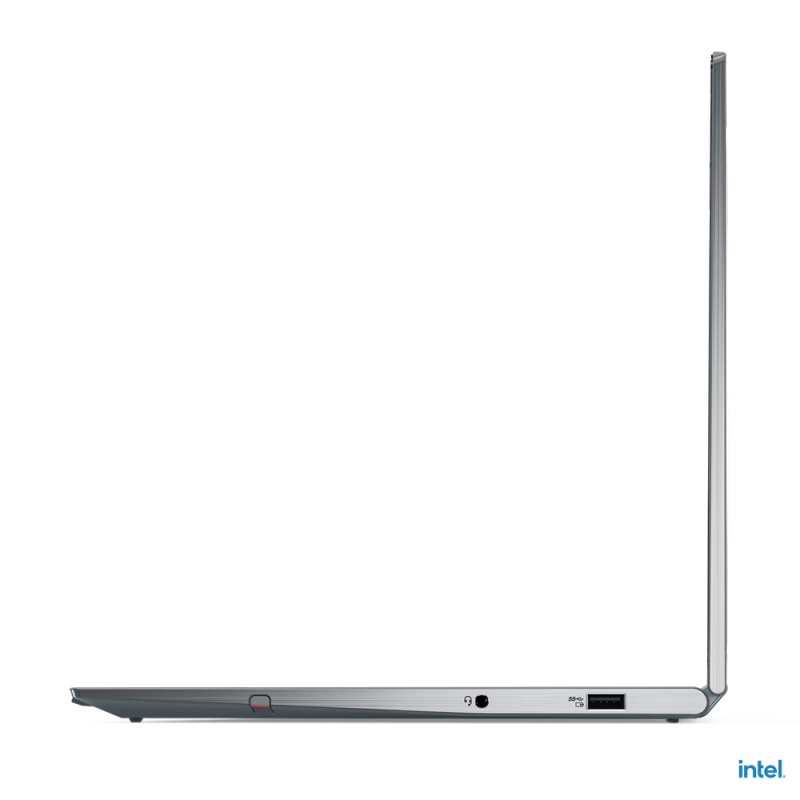

Ports/Slots:

Standard Ports:

• 1x USB 3.2 Gen 1
• 1x USB 3.2 Gen 1 (Always On)
• 2x Thunderbolt 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4a)
• 1x HDMI, up to 4K/60Hz
• 1x Headphone / microphone combo jack (3.5mm)

Optional Ports:

• 1x Nano-SIM card slot (WWAN support models)

Sensors:

• Accelerometer (G) sensor
• Proximity (P) sensor

System Management:

• Intel vPro Enterprise
• Non-vPro

Security:

Security Chip: Discrete TPM 2.0, TCG certified

Physical Locks: Kensington® Nano Security Slot, 2.5 x 6 mm

Fingerprint Reader: Touch style fingerprint reader on power button, match-on-chip

BIOS Security:

• Power-on password
• Supervisor password
• System management password
• NVMe password
• USB FIDO (Fast Identity Online) device integration
• Certificate based BIOS authentication
• Firmware Resiliency 3.0

Other Security:

• Camera privacy shutter
• (Optional) IR camera for Windows Hello
• (Optional) Privacy Guard with Privacy Alert
• (Optional) Computer Vision-based User Presence Sensing including lock on leave
• Mirametrix Glance
• Tile ready

Battery: Integrated Li-Polymer 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter

Monitor Support:

Supports up to 4 independent displays (native display and 3 external monitors via Thunderbolt™ and HDMI®)

• Thunderbolt supports up to 5K@60Hz

• HDMI supports up to 4K@60Hz

Mechanical:

Dimensions (WxDxH): 314.4 x 222.3 x 15.53 mm (12.38 x 8.75 x 0.61 inches)

Weight: Starting at 1.38 kg (3.04 lbs)

Case Color: Storm grey

Case Material: Aluminium (top), aluminium (bottom)

What's in the Box:

• ThinkPad X1 Yoga Gen 7
• Internal Battery
• USB-C 65W (supports Rapid Charge)
• Quick Start Guide

Full spec list for ThinkPad X1 Yoga Gen 7 model starting with 21CD available here
