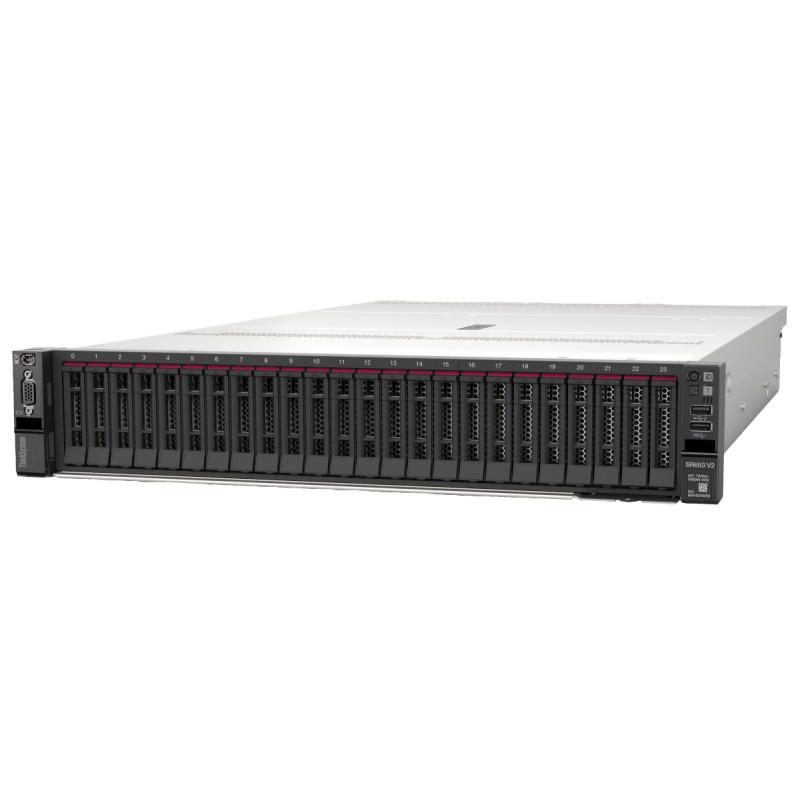

Lenovo ThinkSystem SR650 V2 Rack Server
Form Factor/Height: 2U rack server
Processors: Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 40 cores, up to 270W TDP
Drive Bays: Up to 20x 3.5-inch or 40x 2.5-inch drives; Up to 32x NVMe drives supported with NVMe switch adapters; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1)
Memory: 32x DDR4 memory slots; Maximum 8TB using 32x 256GB 3DS RDIMMs; Supports up to 16x Intel® Optane™ Persistent Memory 200 Series modules (PMem)
Expansion Slots: Up to 8x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot
GPUs: Up to 8x single-width GPUs or 3x double-width GPUs
Network Interface: LOM adapter installed in the OCP 3.0 slot; PCIe adapters
Ports:
Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port
Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional)
HBA/RAID Support: SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs
Power: Dual redundant power supplies (up to 1800W Platinum)
Systems Management: Lenovo XClarity Controller
OS Support: Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information
For more information about specification for SR650 V2 visit: https://thinksystem.lenovofiles.com/help/topic/SR650V2/technical_specifications.html
