Lenovo ThinkPad X1 Extreme Gen 5
Processor: 12th Generation Intel® Core™ i7 / i9 processor
Display:
- 16" WUXGA (1920 x 1200) IPS, anti-glare, 300 nits
- 16" WQXGA (2560x1600) IPS, anti-glare, 500 nits, 165Hz
- 16" WQUXGA (3840x2400) IPS, touchscreen, anti-glare, 600 nits
Memory:
- Max Memory: Up to 64 GB DDR5 4800MHz
- Memory Slots: Two DDR5 SO-DIMM slots, dual-channel capable
Storage: M.2 2280 SSD up to 4TB
Graphics:
- NVIDIA® GeForce RTX™ 3050 Ti Laptop GPU 4GB GDDR6
- NVIDIA GeForce RTX 3060 Laptop GPU 6GB GDDR6
- NVIDIA GeForce RTX 3070 Ti Laptop GPU 8GB GDDR6
- NVIDIA GeForce RTX 3080 Ti Laptop GPU 16GB GDDR6
Operating System:
- Windows® 11 Pro 64
- Windows 11 Home 64
- Windows 11 DG Windows 10 Pro 64
- Linux
- Ubuntu Linux
- No operating system
Input Device:
Pen
- Lenovo Precision Pen 2 with built-in rechargeable battery, 4096 levels of pressure sensitivity, tilt detection, supports WGP, AES 2.0 and MPP 2.0 protocols
- No pen (pen sold separately)
- No support (non-touch display doesn't support pen input)

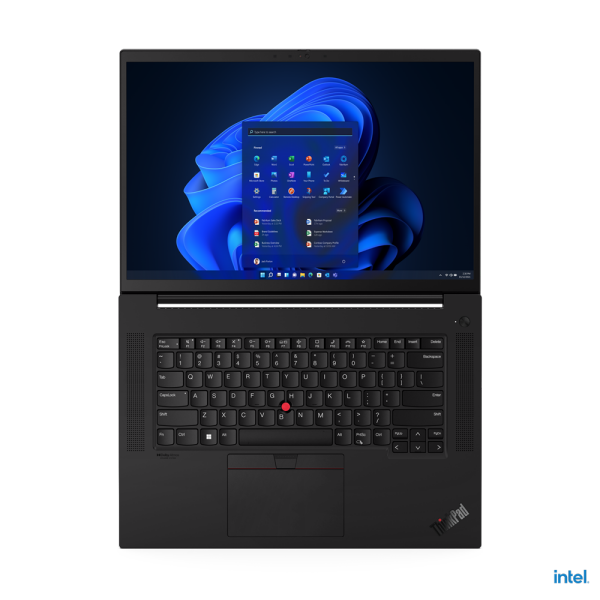

Keyboard
6-row, spill-resistant, multimedia Fn keys with Unified Communications controls
Keyboard Backlight
LED backlight
UltraNav™
TrackPoint® pointing device and glass surface multi-touch touchpad, 67.7 x 115 mm (2.67 x 4.53 inches)
Multi-Media:
Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
Stereo speakers, 2W x2, Dolby® Audio™ Premium
Microphone
Dual array microphone, far-field, Dolby Voice
Camera
IR & FHD 1080p hybrid, with privacy shutter, fixed focus
Network:
Onboard Ethernet[1]
No Ethernet
WLAN + Bluetooth®[2]
Intel Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi + Bluetooth 5.2
WWAN[3]
- Fibocom FM350-GL 5G NR module with embedded eSIM functionality, M.2 Card
- No support
SIM Card
No SIM card inbox
NFC
- Near Field Communication
- No support

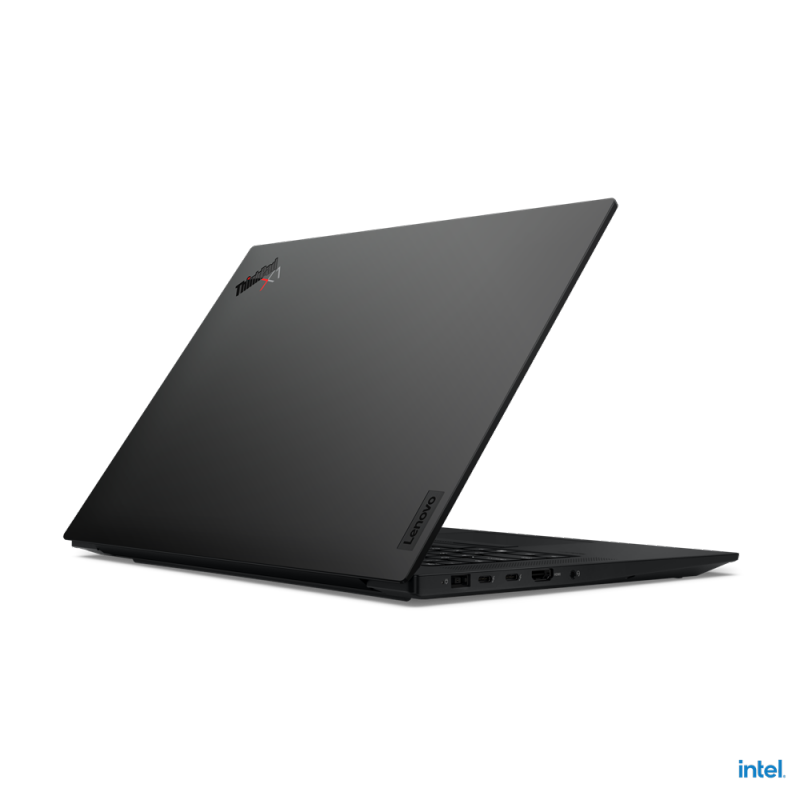

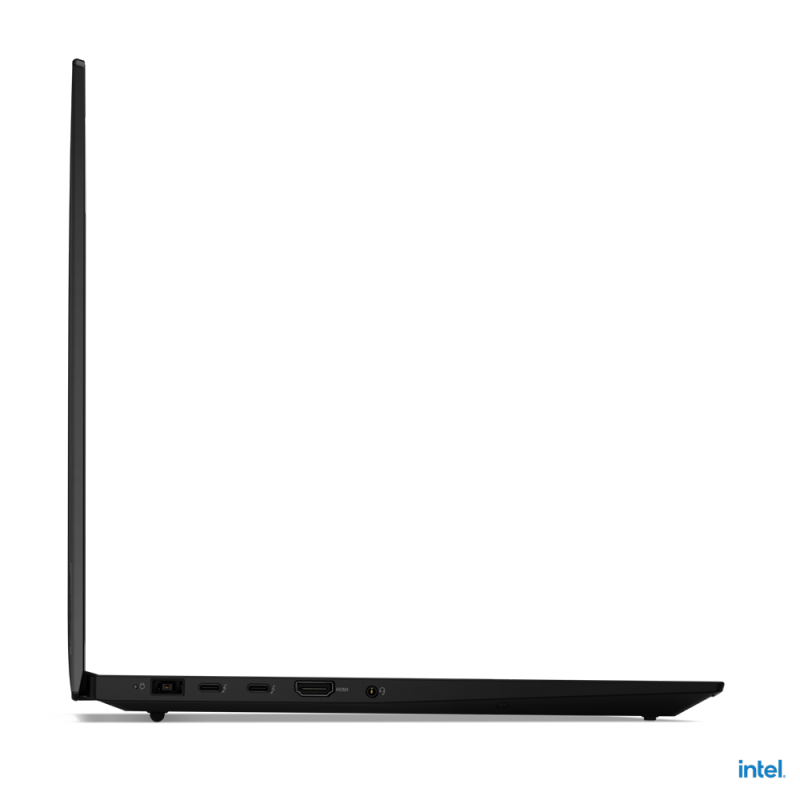

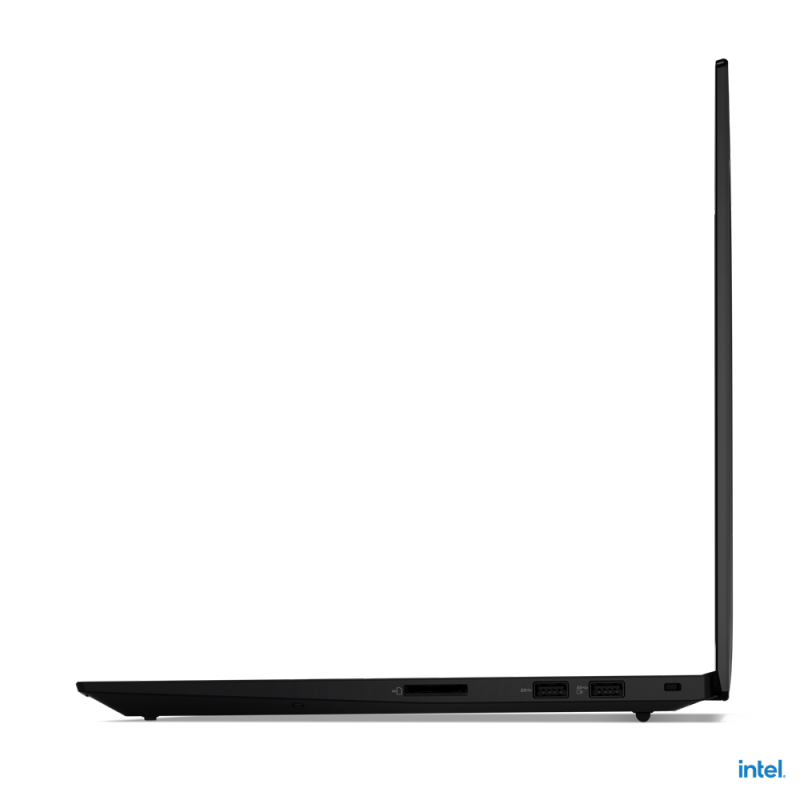

Ports/Slots:
Standard Ports
- 1x USB 3.2 Gen 1
- 1x USB 3.2 Gen 1 (Always On)
- 2x Thunderbolt 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
- 1x HDMI, up to 8K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Power connector
- 1x SD Express 7.0 card reader
Optional Ports
1x Nano-SIM card slot (WWAN support models)
System Management:
- Intel vPro Enterprise
- Non-vPro
Security:
Security Chip
Discrete TPM 2.0, TCG certified
Physical Locks
Kensington® Nano Security Slot, 2.5 x 6 mm
Smart Card Reader
No smart card reader
Fingerprint Reader
Touch style fingerprint reader on power button, match-on-chip
BIOS Security
- Power-on password
- Supervisor password
- System management password
- NVMe password
- USB FIDO (Fast Identity Online) device integration
- Certificate based BIOS authentication
- Firmware Resiliency 3.0
Other Security
- Camera privacy shutter
- IR camera for Windows Hello
- Mirametrix Glance
- Tile ready
Battery:
Integrated Li-Polymer 90Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
Monitor Support:
Supports up to 5 independent displays in hybrid mode (native display and 4 external monitors via HDMI® and Thunderbolt™);
Supports up to 4 independent displays in discrete mode (native display and 3 external monitors via HDMI and Thunderbolt)
• HDMI supports up to 8K@60Hz
• Thunderbolt supports up to 5K@60Hz
Mechanical:
Dimensions (WxDxH)
359.5 x 253.8 x 17.9 mm (14.15 x 9.99 x 0.7 inches)
Weight
Starting at 1.88 kg (4.14 lbs)

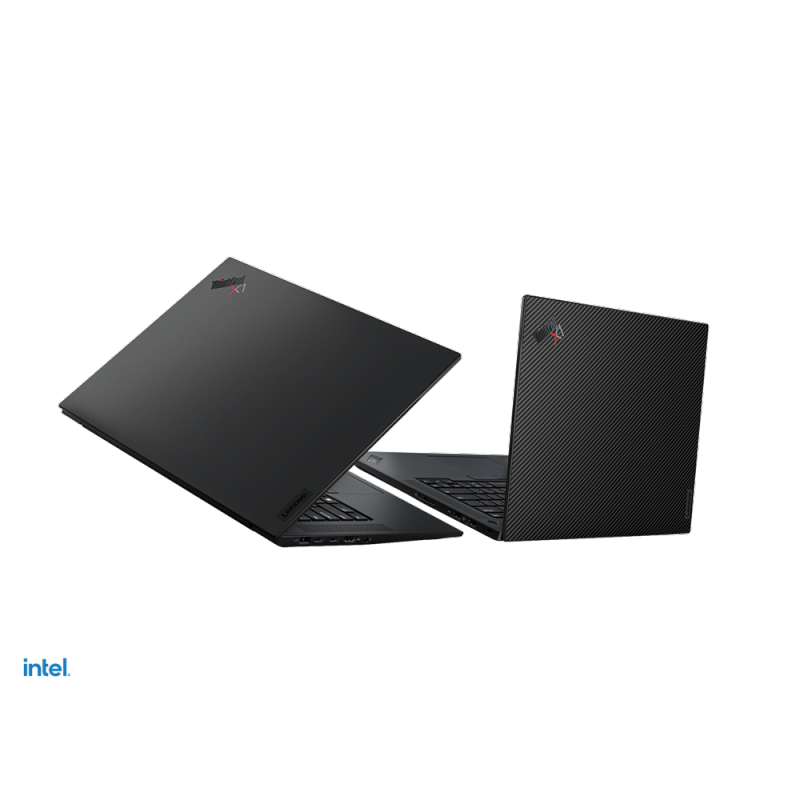

Case Color
- Black, paint (WUXGA or WQXGA models)
- Black, weave (WQUXGA models)
Case Material
Carbon fiber (top), aluminium (bottom)
Full spec list for ThinkPad X1 Extreme Gen 5 model starting with 12BO available here
