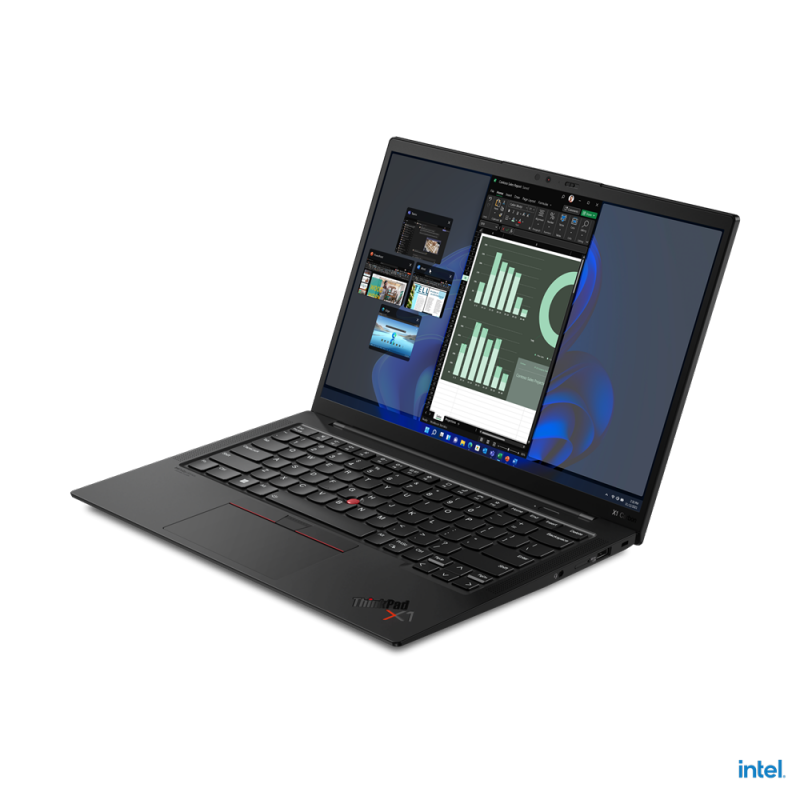

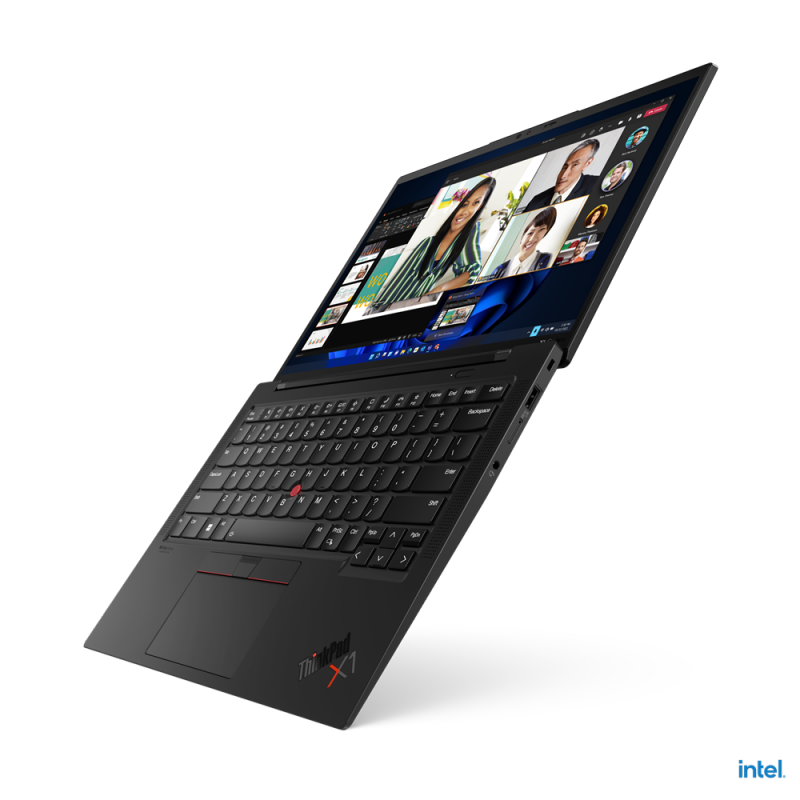

Lenovo ThinkPad X1 Carbon Gen 10

Processor: 12th Generation Intel® Core™ i5 / i7 Processor

Display:

• 14" 2.8K (2880x1800) OLED 400nits Anti-glare / AR (anti-reflection) / AS (anti-smudge)
• 14" WQUXGA (3840x2400) Low Power IPS 500nits Anti-glare / AR (anti-reflection) / AS (anti-smudge), HDR 400, Touch
• 14" WQUXGA (3840x2400) Low Power IPS 500nits Glossy, HDR 400, Dolby Vision
• 14" WUXGA (1920x1200) IPS 500nits Anti-glare, Touch, ThinkPad Privacy Guard
• 14" WUXGA (1920x1200) Low Power IPS 400nits Anti-glare
• 14" WUXGA (1920x1200) Low Power IPS 400nits Anti-glare, Touch

Memory:

Max Memory:

• 8GB soldered memory, not upgradable
• 16GB soldered memory, not upgradable
• 32GB soldered memory, not upgradable

Memory Slots: Memory soldered to systemboard, no slots, 8-channel, LPDDR5-5200

Storage: One drive, up to 2TB M.2 2280 SSD PCIe® Gen 4x4 Opal2, Supports M.2 2280 SSD

Graphics:

• Integrated Intel® Iris® Xe Graphics

Operating System:

• Windows® 11 Pro 64
• Windows 11 Home 64
• Windows 11 DG Windows 10 Pro 64
• Fedora Linux
• Linux
• Ubuntu Linux
• No operating system

Input Device:

Keyboard: 6-row, spill-resistant, air intake design, multimedia Fn keys with Unified Communications controls

Keyboard Backlight: LED backlight

UltraNav™: TrackPoint® pointing device and glass surface multi-touch touchpad, 56 x 110 mm (2.20 x 4.33 inches)

Multi-Media:

Audio Chip: High Definition (HD) Audio, Realtek® ALC3306 codec

Speakers: Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby® Atmos®

Microphone: Four microphones, quad-array, 360° far-field, Dolby Voice

Camera:

• HD 720p, with privacy shutter, fixed focus
• FHD 1080p, with privacy shutter, fixed focus
• IR & FHD 1080p hybrid, with privacy shutter, fixed focus
• IR & FHD 1080p discrete, with privacy shutter, MIPI, fixed focus, Computer Vision

Network:

WLAN + Bluetooth: Intel Wi-Fi 6E AX211, 802.11ax 2x2 Wi-Fi + Bluetooth 5.2

WWAN:

• Wireless WAN upgradable to 4G (with antenna ready)
• Fibocom FM350-GL 5G NR module with embedded eSIM functionality, M.2 Card
• Fibocom L860-GL-16, 4G LTE CAT16, MIMO 4x4, M.2 card
• No support

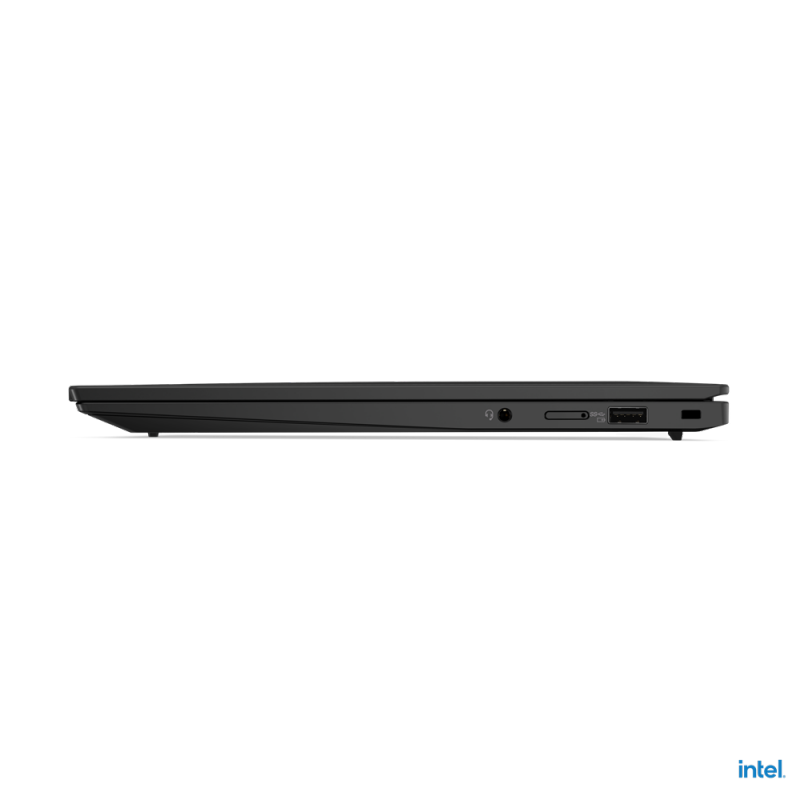

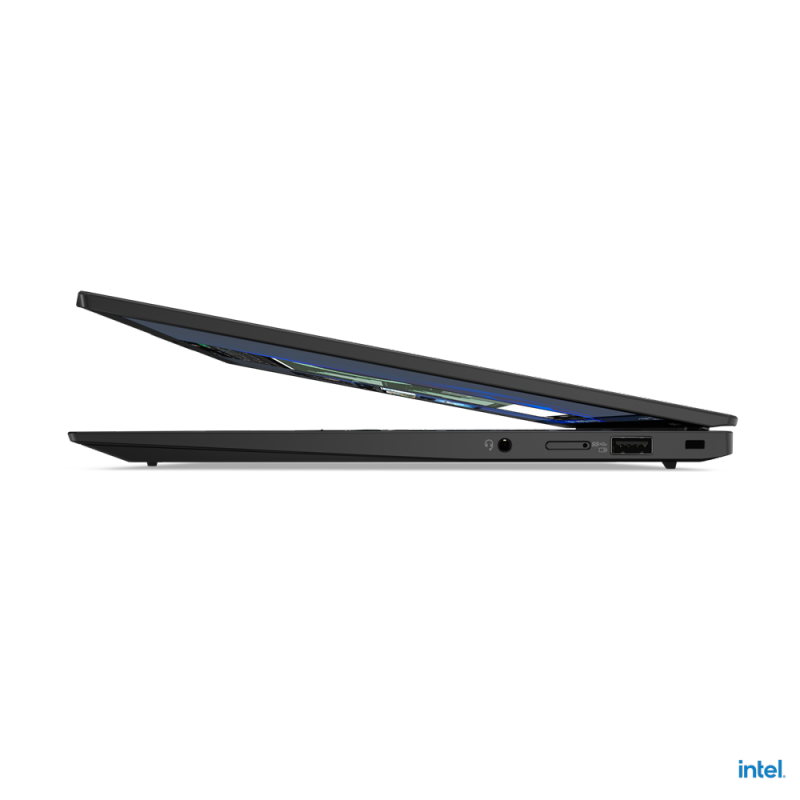

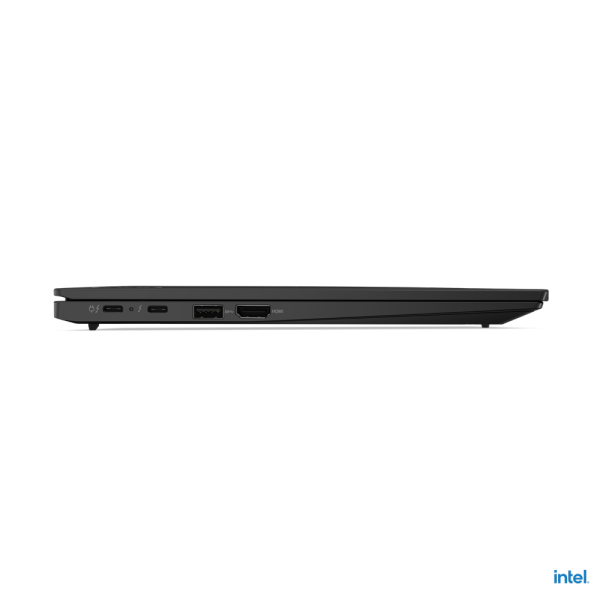

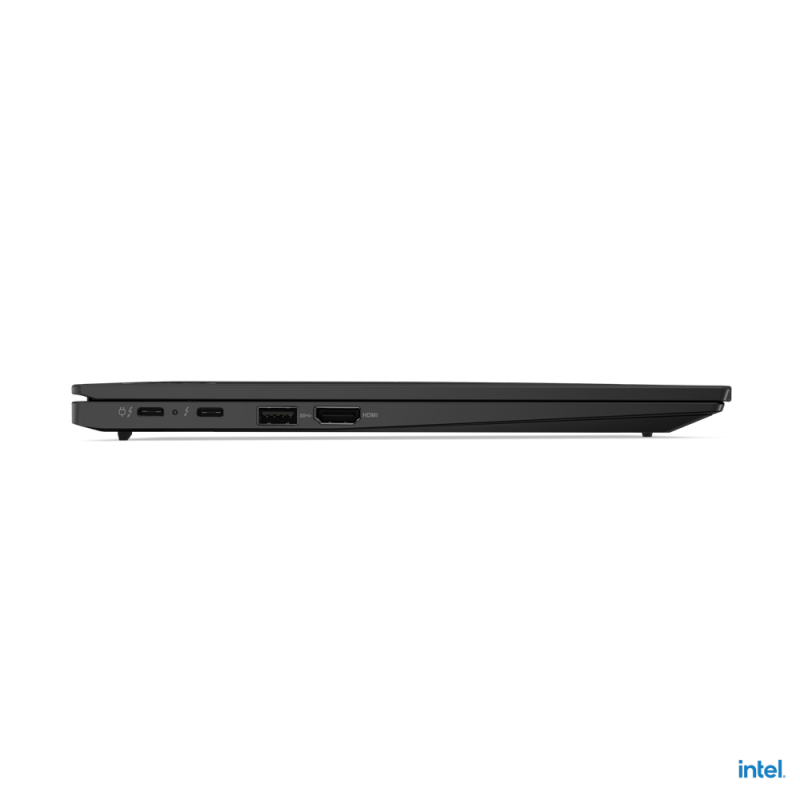

Ports/Slots:

Standard Ports:

• 1x USB 3.2 Gen 1
• 1x USB 3.2 Gen 1 (Always On)
• 2x Thunderbolt 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4a)
• 1x HDMI, up to 4K/60Hz
• 1x Headphone / microphone combo jack (3.5mm)

Optional Ports:

• 1x Nano-SIM card slot (WWAN support models)

System Management:

• Intel vPro Enterprise
• Intel vPro Essentials
• Non-vPro

Security:

Security Chip: Discrete TPM 2.0, TCG certified

Physical Locks: Kensington® Nano Security Slot, 2.5 x 6 mm

Fingerprint Reader: Touch style fingerprint reader on power button, match-on-chip

BIOS Security:

• Power-on password
• Supervisor password
• System management password
• NVMe password
• USB FIDO (Fast Identity Online) device integration
• Certificate based BIOS authentication
• Firmware Resiliency 3.0

Other Security:

• Camera privacy shutter
• (Optional) IR camera for Windows Hello
• (Optional) Privacy Guard with Privacy Alert
• (Optional) Computer Vision-based User Presence Sensing including lock on leave
• Mirametrix Glance
• Tile ready

Battery:

• Integrated Li-Polymer 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter

Monitor Support:

Supports up to 4 independent displays (native display and 3 external monitors via Thunderbolt™ and HDMI®)

• Thunderbolt supports up to 5K@60Hz
• HDMI supports up to 4K@60Hz

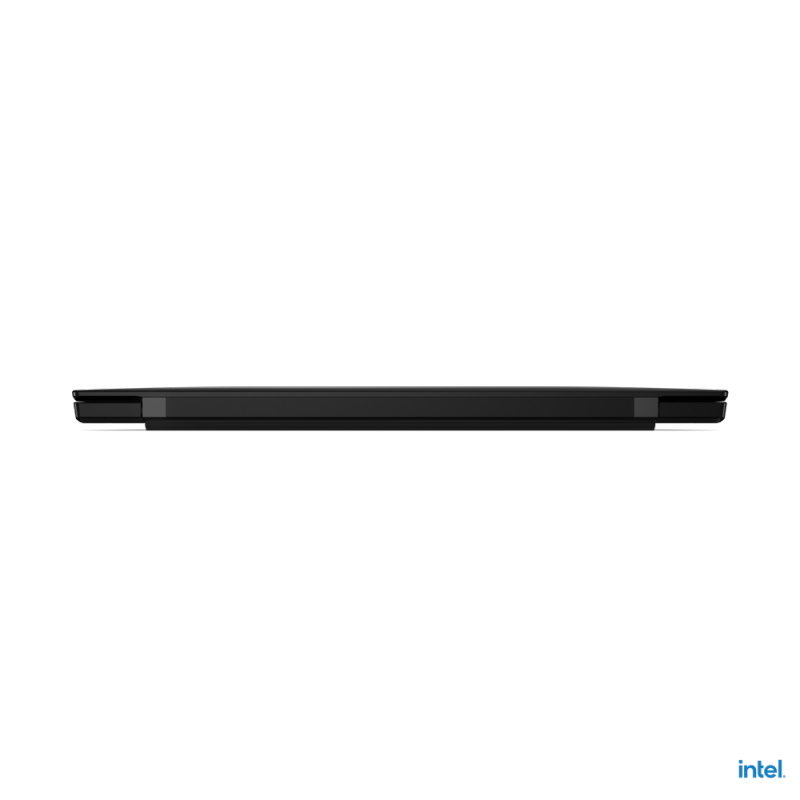

Mechanical:

Dimensions (WxDxH):

• Model with 720p camera: 315.6 x 222.5 x 14.95 mm (12.43 x 8.76 x 0.59 inches)
• Model with other camera: 315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)

Weight: Starting at 1.12 kg (2.48 lbs)

Case Color:

• Deep black, paint
• Deep black, weave

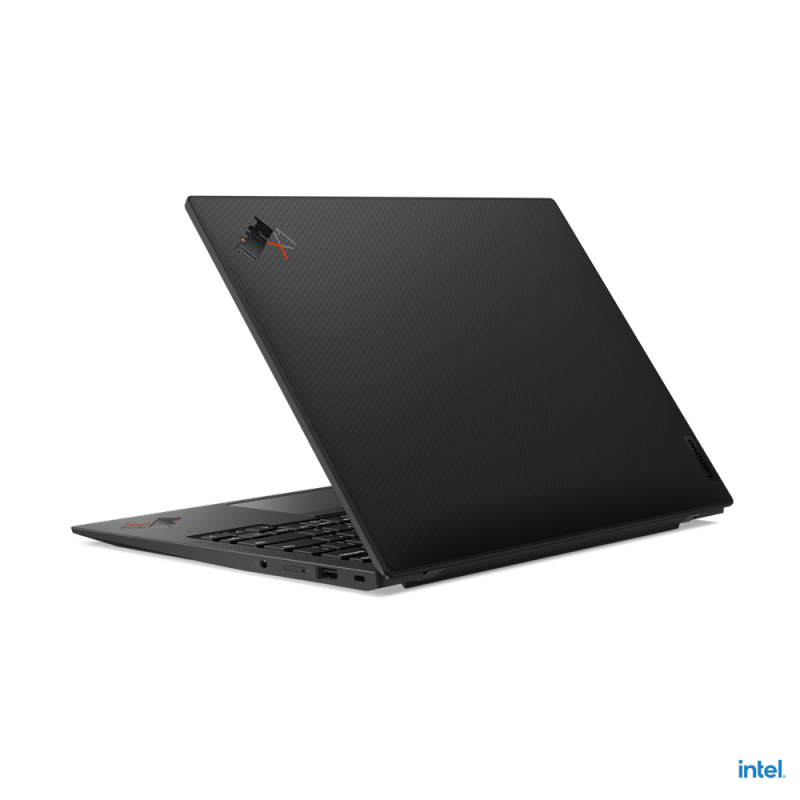

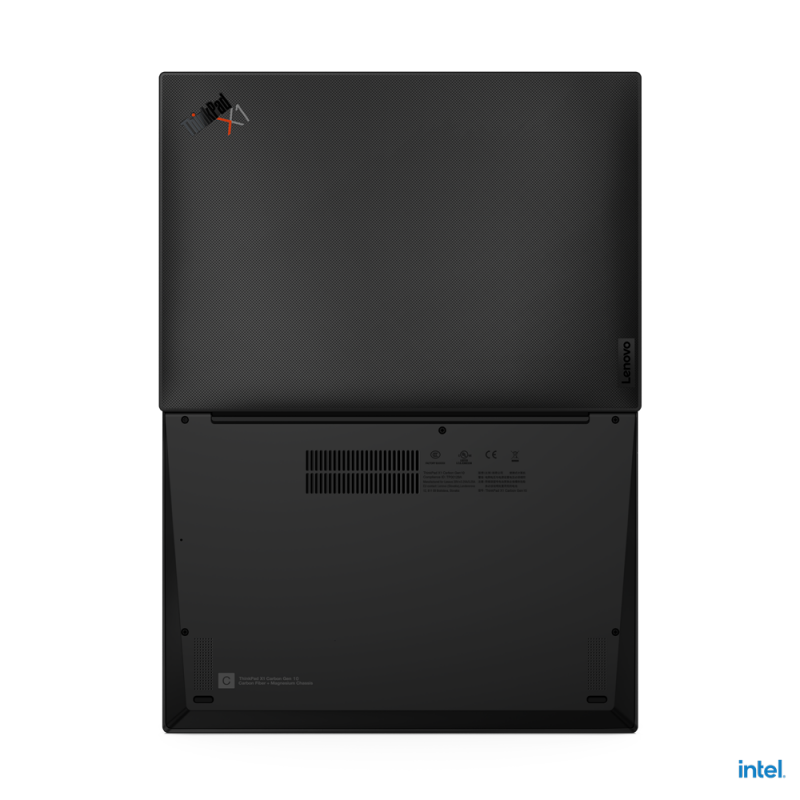

Case Material: Carbon fiber (top), aluminium (bottom)

What's in the Box:

• ThinkPad X1 Carbon Gen 10
• Internal Battery
• USB-C 65W (supports Rapid Charge)
• Quick Start Guide
