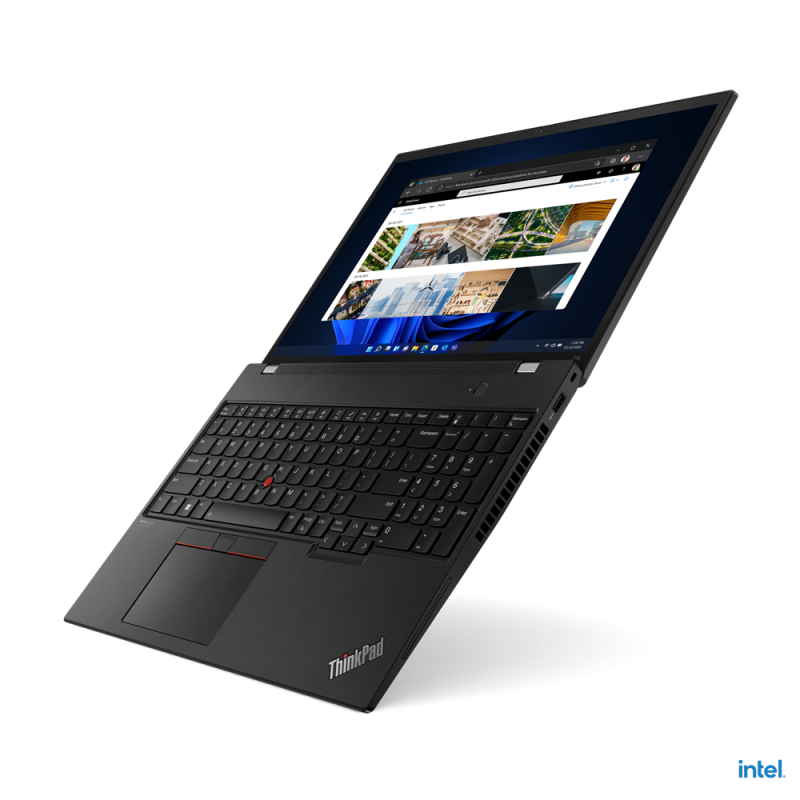

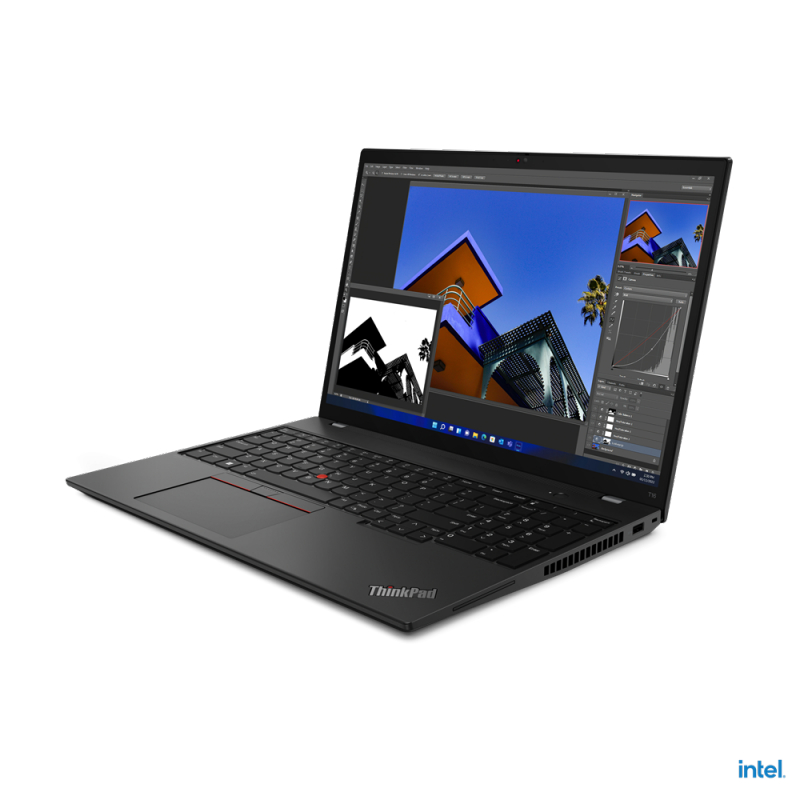

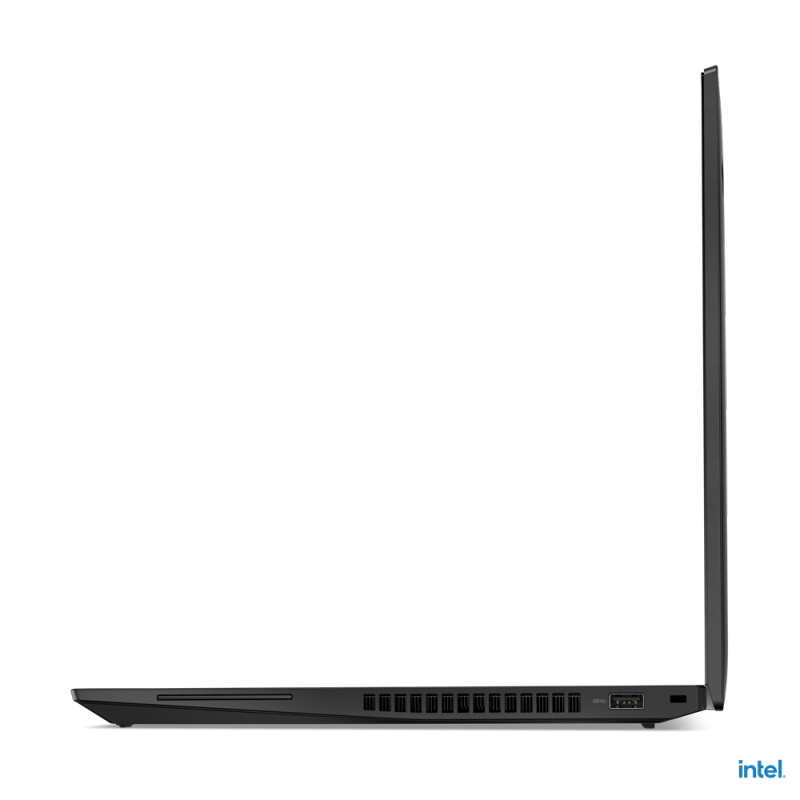

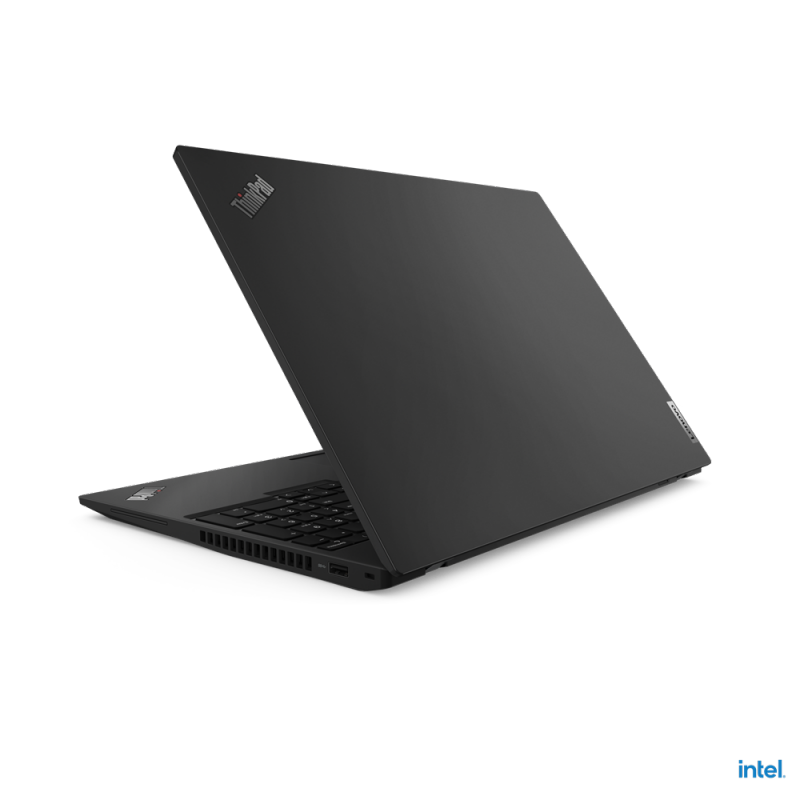

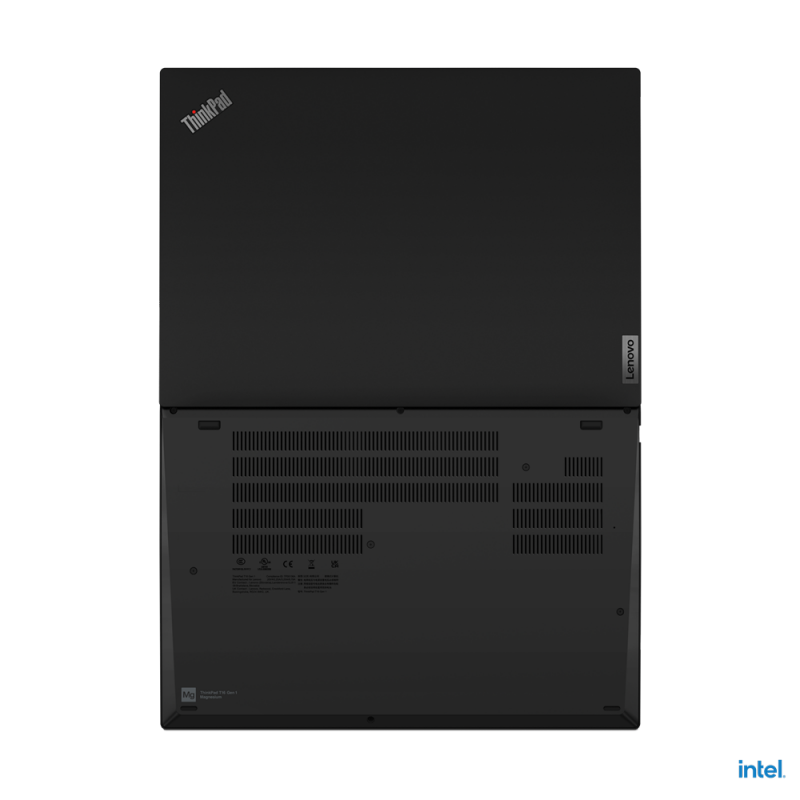

Lenovo ThinkPad T16 Gen 1 (Intel)

Processor: 12th Generation Intel® Core™ i5 / i7 Processor

Display:

• 16" WQXGA (2560x1600) IPS 400nits Anti-glare, 100% sRGB, Eyesafe Certified, ICC Template color calibration
• 16" WUXGA (1920x1200) IPS 300nits Anti-glare
• 16" WUXGA (1920x1200) IPS 300nits Anti-glare, Touch
• 16" WUXGA (1920x1200) IPS 400nits Anti-glare, Low power, Eyesafe® Certified, ICC Template color calibration

Color Calibration:

• ICC Template color calibration
• No color calibration

Touchscreen:

• On-cell touch, supports 10-point touch
• Non-touch

Memory:

Max Memory:

• Up to 40GB (8GB soldered + 32GB SO-DIMM) DDR4-3200
• Up to 48GB (16GB soldered + 32GB SO-DIMM) DDR4-3200

Memory Slots: One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable

Storage: One drive, 2TB M.2 2280 SSD PCIe® Gen 4x4 Opal2

Graphics:

• Integrated Intel® Iris® Xe Graphics
• Discrete NVIDIA GeForce MX550 2GB GDDR6 Graphics

Operating System:

• Windows® 11 Pro 64
• Windows 11 Home 64
• Windows 11 DG Windows 10 Pro 64
• Linux
• Ubuntu Linux
• No operating system

Input Device:

Keyboard: 6-row, spill-resistant, multimedia Fn keys with Unified Communications controls, numeric keypad

Keyboard Backlight:

• LED backlight
• Non-backlight

UltraNav™: TrackPoint® pointing device and glass-like Mylar® surface multi-touch touchpad, 67.7 x 115 mm (2.67 x 4.53 inches)

Multi-Media:

Audio Chip: High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers: Stereo speakers, 2W x2, Dolby® Audio™

Microphone: Dual array microphone, far-field, Dolby Voice

Camera:

• FHD 1080p, with privacy shutter, fixed focus
• IR & FHD 1080p hybrid, with privacy shutter, fixed focus

Network:

Onboard Ethernet:

• Gigabit Ethernet, Intel Ethernet Connection I219-LM (vPro models), 1x RJ-45, supports Wake-on-LAN
• Gigabit Ethernet, Intel Ethernet Connection I219-V (non-vPro models), 1x RJ-45, supports Wake-on-LAN

WLAN + Bluetooth: Intel Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi + Bluetooth 5.2

WWAN:

• Wireless WAN upgradable to 4G (with antenna ready)
• Fibocom L860-GL-16, 4G LTE CAT16, M.2 card
• Quectel EM05-G, 4G LTE CAT4, M.2 card

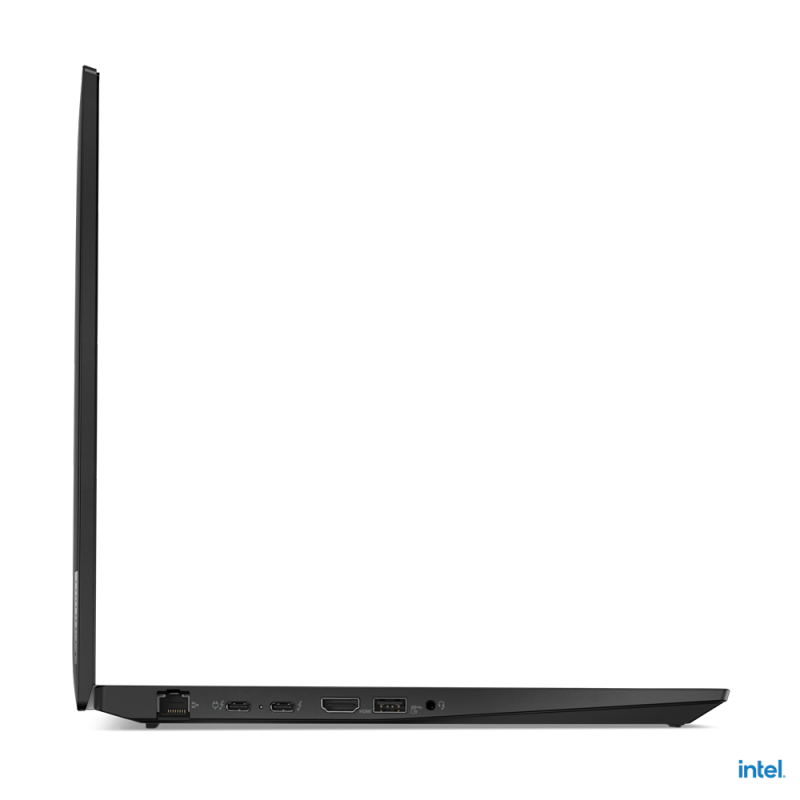

Ports/Slots:

Standard Ports:

• 1x USB 3.2 Gen 1
• 1x USB 3.2 Gen 1 (Always On)
• 2x Thunderbolt 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
• 1x HDMI, up to 4K/60Hz
• 1x Ethernet (RJ-45)
• 1x Headphone / microphone combo jack (3.5mm)

Optional Ports:

• 1x Smart card reader
• 1x Nano-SIM card slot (WWAN support models)

System Management:

• Intel vPro Enterprise
• Non-vPro

Security:

Security Chip: Discrete TPM 2.0, TCG certified

Physical Locks: Kensington® Nano Security Slot, 2.5 x 6 mm

Smart Card Reader: Optional

Fingerprint Reader: Touch style fingerprint reader on power button, match-on-chip

BIOS Security:

• Power-on password
• Supervisor password
• System management password
• NVMe password
• USB FIDO (Fast Identity Online) device integration
• Certificate based BIOS authentication
• Firmware Resiliency 3.0

Other Security:

• (Optional) Camera privacy shutter
• (Optional) IR camera for Windows Hello
• (Optional) Privacy Guard with Privacy Alert
• Human Presence Detection (software)
• Mirametrix Glance

Battery:

• Integrated Li-Polymer 52.5Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W or 135W AC adapter
• Integrated Li-Polymer 86Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 135W AC adapter

Monitor Support:

Supports up to 4 independent displays (native display and 3 external monitors via Thunderbolt™ and HDMI®)

• Thunderbolt supports up to 5K@60Hz
• HDMI supports up to 4K@60Hz

Mechanical:

Dimensions (WxDxH):

• Integrated graphics models: 361.9 x 255.5 x 20.5 mm (14.25 x 10.06 x 0.81 inches)
• Discrete graphics models: 361.9 x 255.5 x 21.1 mm (14.25 x 10.06 x 0.83 inches)

Weight:

• Thunder black models: Starting at 1.65 kg (3.64 lbs)

Case Color:

• Thunder black

Case Material:

• Thunder black models: PC 50% GF + PC 20% CF (top), PPS (bottom)

What's in the Box:

• ThinkPad T16 (16" Intel)
• 65W or 135W AC adapter (Supports Rapid Charge)
• 52.5Wh or 86Wh battery
• Quick Start Guide

Full spec list for ThinkPad T16 Gen 1 model starting with 21BV available here
