Lenovo ThinkStation P620
Processor: Up to one AMD Ryzen™ Threadripper PRO 5000 or 3000 Series Processor
Memory:
Max Memory
Up to 1TB (8x 128GB DDR4-3200 RDIMMs)
Memory Type
DDR4-3200 RDIMM ECC
Memory Slots
8 DDR4 DIMM slots, 8 channels capable
Memory Protection
ECC
Storage:
Storage Support
Up to 5x 3.5" SATA HDD + 11x M.2 SSD
• 3.5" HDD up to 4TB each
• Onboard M.2 SSD up to 4TB each
• M.2 SSD by M.2 to PCIe® adapter up to 2TB
Graphics:
Supports up to two NVIDIA® Quadro® RTX 8000 with NVLink, two NVIDIA RTX A6000 with NVLink, or two AMD Radeon™ PRO W6800
Chipset: AMD WRX80
Operating System:
- Windows® 11 Pro 64
- Windows 11 DG Windows 10 Pro 64
- Windows 10 Pro 64
- Ubuntu Linux LTS
- No operating system
Network:
Onboard Ethernet
10GbE Ethernet, Marvell AQtion AQN-107, 1x 10GbE RJ-45
Optional Ethernet
Additional Ethernet options via PCIe adapter
WLAN + Bluetooth
- Intel® Wireless-AC 9260, 802.11ac Dual Band 2x2 Wi-Fi® + Bluetooth 5.1
- No WLAN and Bluetooth
Ports/Slots:
Front Ports
- 1x USB 3.2 Gen 2
- 1x USB 3.2 Gen 2 (Always On and fast charge)
- 2x USB-C 3.2 Gen 2
- 1x headphone / microphone combo jack (3.5mm)

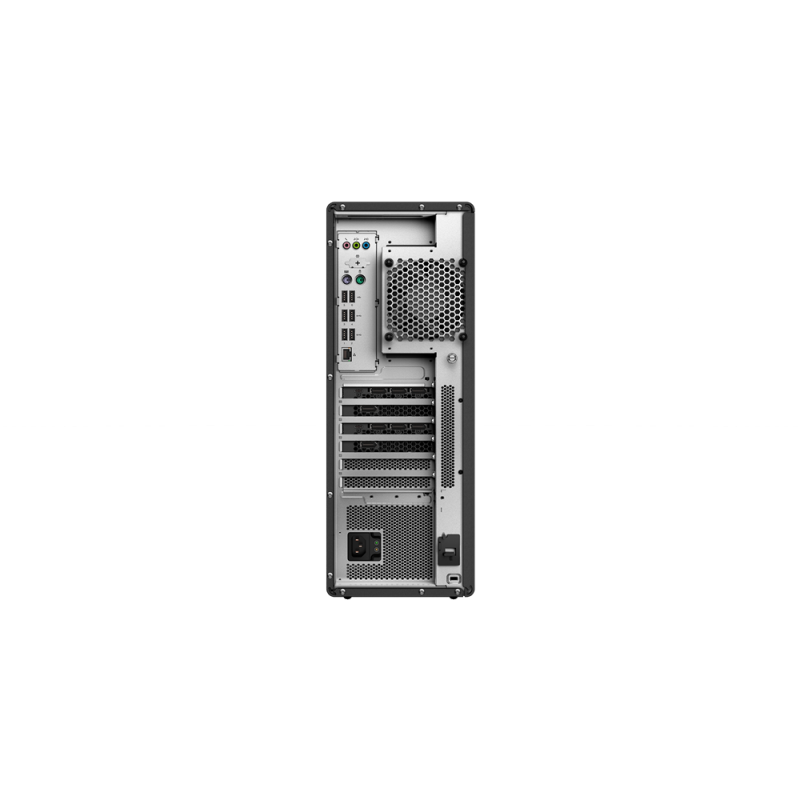

Rear Ports
- 2x USB 2.0
- 4x USB 3.2 Gen 2
- 2x PS/2 ports (keyboard / mouse)
- 1x Ethernet (10GbE RJ-45)
- 1x line-in (3.5mm)
- 1x line-out (3.5mm)
- 1x microphone (3.5mm)
Optional Rear Ports
- 2x USB-C 3.2 Gen 2 (via 2-port USB-C expansion card, PCIe x4)
- 1x Thunderbolt™ 3
- 1x serial
System Management:
AMD Pro Manageability
Security:
Security Chip
Discrete TPM 2.0, TCG certified
Physical Locks
- (Optional) Access Panel Lock Kit with Common Key
- (Optional) Access Panel Lock Kit with Unique Key
- Kensington® Security Slot, 3 x 7 mm
Chassis Intrusion Switch
Chassis intrusion switch
BIOS Security
- Administrator password
- Power-on password
Power Supply:
- 1000W AC Adapter, 92% Efficiency, Autosensing, 80 PLUS Platinum qualified
Monitor Support:
Supports multiple displays via discrete graphics, the number of maximum monitors supported depends on the graphic card in use
Mechanical:
Form Factor
Tower (33L)
Dimensions (WxDxH)
165 x 460 x 446 mm (6.5 x 18.1 x 17.6 inches, with feet)
Weight
24 kg (52.91 lbs, maximum configuration)
Bays
- 2x 3.5" disk bay (standard)
- 3x 3.5" disk bay (optional): 2 bays come with 3rd disk or Storage Bay Upgrade Kit 1 bay via flex bay
Flex Bays
1x flex bay, supports one of the following: • Front Access Storage Enclosure • 5.25" Slim ODD and HDD cage
M.2 Slots
Up to 11x M.2 SSD: • 2 via onboard slots • 8 via Quad M.2 to PCIe adapters (only supports PCIe 3.0 SSD) • 1 via Single M.2 to PCIe adapter (only supports PCIe 3.0 SSD)
Expansion Slots
- Two PCIe 4.0 x8
- Four PCIe 4.0 x16
Expansion Slots Offering
Slot 1: PCIe 4.0 x16, full height, full length, by CPU Slot 2: PCIe 4.0 x8, full height, full length, by CPU Slot 3: PCIe 4.0 x16, full height, full length, by CPU Slot 4: PCIe 4.0 x16, full height, full length, by CPU Slot 5: PCIe 4.0 x16, full height, full length, by CPU Slot 6: PCIe 4.0 x8, full height, full length, by IOH
Full spec list for ThinkStation P620 model starting with 30E0 available here
