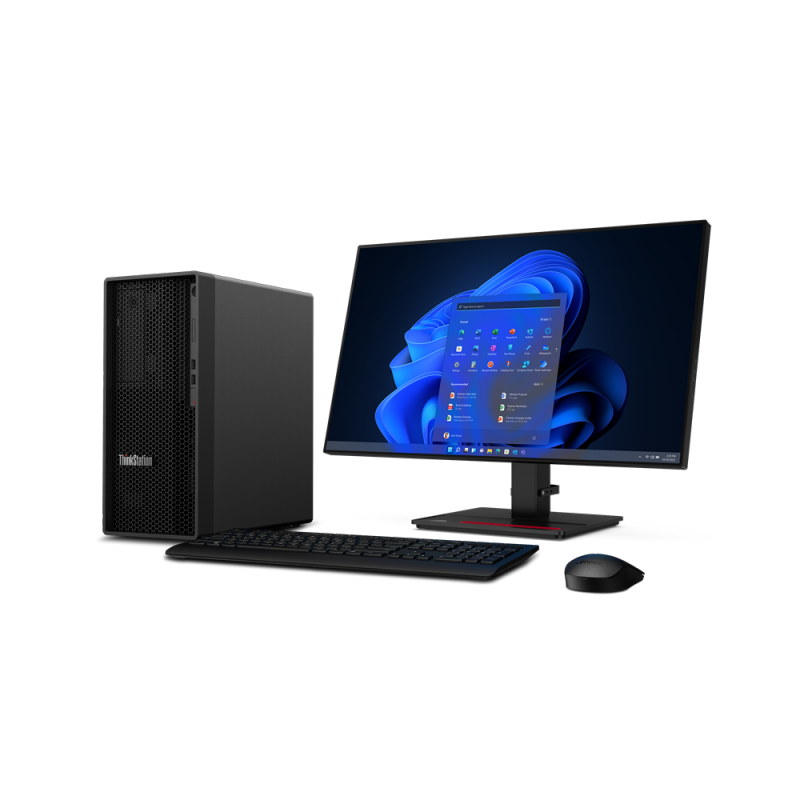

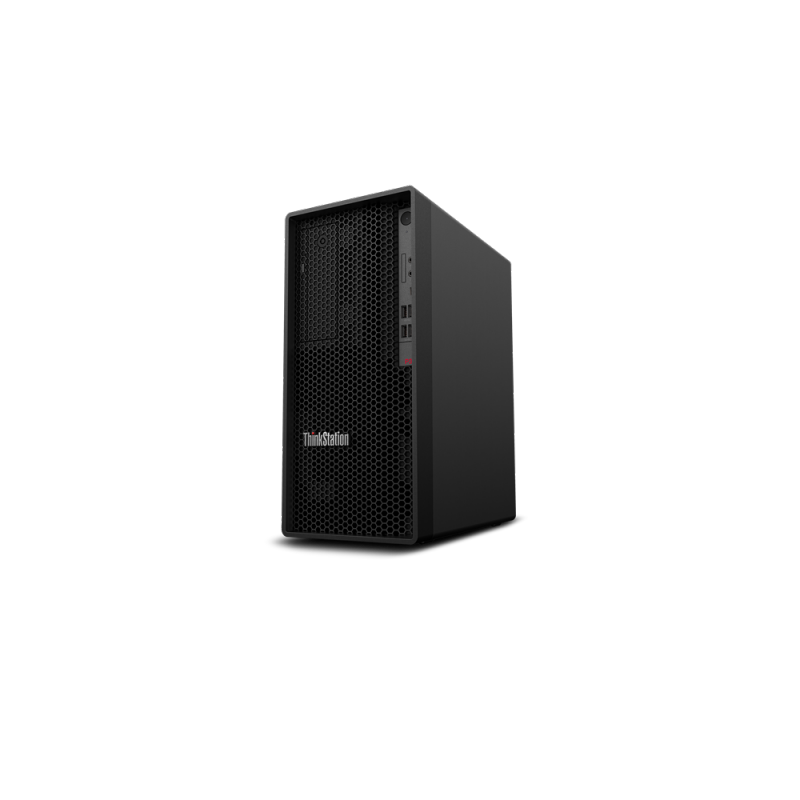

Lenovo ThinkStation P360 Tower
Processor: 12th Generation Intel® Core™ i3 / i5 / i7 / i9 Processor
Memory:
- Max Memory: Up to 128GB DDR5
- Memory Type: DDR5-4800 ECC or DDR5-4800 non-ECC
- Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
- Memory Protection: ECC on models with ECC DIMMs and ECC capable processor
Storage:
Up to 2x 3.5" SATA HDD or 4x 2.5" SATA HDD; also supports up to 3x M.2 SSD (2 by onboard, 1 by M.2 to PCIe adapter )
- 3.5" HDD up to 4TB each
- 2.5" HDD up to 1TB each
- Onboard M.2 2280 SSD PCIe NVMe, PCIe 4.0 x4 Opal2 up to 4TB each
- M.2 2280 SSD PCIe NVMe, PCIe 4.0 x4 Opal2 by M.2 to PCIe adapter up to 2TB
Storage Controllers:
- Onboard Intel RSTe PCIe M2. SSD NVMe RAID controller, RAID 0/1
- Onboard Intel RST SATA RAID Controller, RAID 0/1/10/5
Removable storage:
Card Reader:
- SD card reader
- No card reader
Graphics:
Integrated Graphics:
- Intel UHD Graphics 730
- Intel UHD Graphics 770
Discrete Graphics Support:
Supports up to one NVIDIA® RTX A5000 or two NVIDIA T1000
- NVIDIA T400, 2GB GDDR6, 40W , 3x miniDP 1.4
- NVIDIA T400, 4GB GDDR6, 40W, 3x miniDP 1.4
- NVIDIA T600, 4GB GDDR6, 40W, 4x miniDP 1.4
- NVIDIA T1000, 4GB GDDR6, 50W, 4x miniDP 1.4
- NVIDIA T1000, 8GB GDDR6, 50W, 4x miniDP 1.4
- NVIDIA RTX A2000, 6GB GDDR6, 70W, 4x miniDP 1.4a
- NVIDIA RTX A2000, 12GB GDDR6, 70W, 4x miniDP 1.4a
- NVIDIA RTX A4000, 16GB GDDR6 with ECC, 140W, 4x DP 1.4a
- NVIDIA RTX A4500, 20GB GDDR6 with ECC, 200W, 4x DP 1.4
- NVIDIA RTX A5000, 24GB GDDR6 with ECC, 230W, 4x DP 1.4a
Chipset: Intel W680 chipset
Operating System:
- Windows® 11 Pro 64
- Windows 11 DG Windows 10 Pro 64
- Red Hat Enterprise Linux (certified only)
- No operating system
Input Device:
Keyboard: USB Traditional Keyboard, Black
Mouse: USB Calliope Mouse, Black
Multi-Media:
Audio Chip: High Definition (HD) Audio, Realtek® ALC897Q-CG codec
Speakers: Single speaker, Internal
Network:
Onboard Ethernet: Gigabit Ethernet, Intel Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN
Ports/Slots:

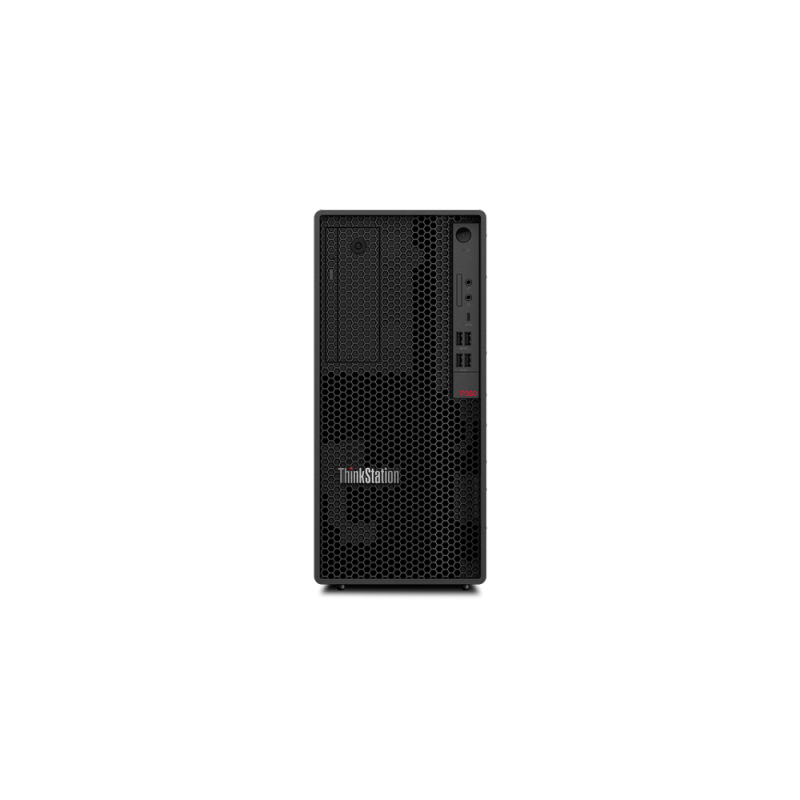

Front Ports:
- 2x USB 3.2 Gen 1
- 2x USB 3.2 Gen 2
- 1x USB-C 3.2 Gen 2
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)

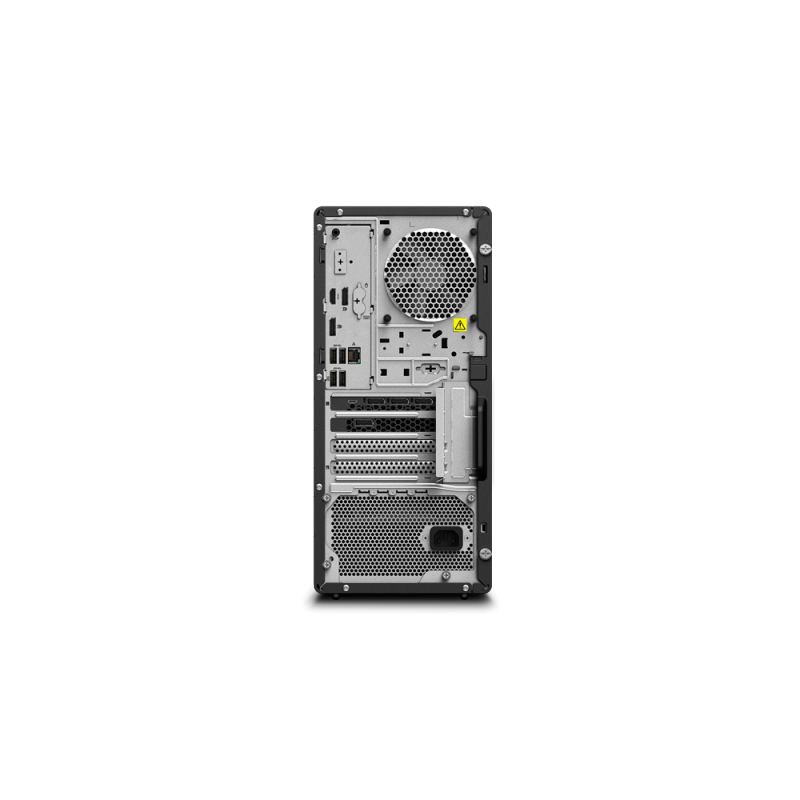

Rear Ports:
- 4x USB 3.2 Gen 1 (one supports Smart Power On)
- 1x HDMI 2.1 TMDS
- 2x DisplayPort™ 1.4
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
Optional Rear Ports:
- 1x HDMI 2.1 TMDS (Flex IO)
- 1x VGA (Flex IO)
- 1x USB-C 3.2 Gen 1 with DisplayPort function (Flex IO)
- 1x DP 1.2 (Flex IO)
- 1x USB-C 3.2 Gen 2x2 (via USB-C expansion card, PCIe x4)
- 2x USB 3.2 Gen 1
- 1x Thunderbolt™ 4
- 1x serial
- 4x serial (via 4-port serial expansion card, PCIe x1)
- 1x parallel
- 2x PS/2
System Management:
- Intel vPro Enterprise with Intel AMT 16.0
- Standard Manageability
Security:
Security Chip: Discrete TPM 2.0, TCG certified
Physical Locks:
- (Optional) Cable lock
- (Optional) E-lock
- Kensington® Security Slot, 3 x 7 mm
- Padlock Loop
Chassis Intrusion Switch:
- Chassis intrusion switch
- No chassis intrusion switch
BIOS Security:
- Administrator password
- Power-on password
Power Supply:
- 500W Fixed, 92% Efficiency, Autosensing, 80 PLUS Platinum
- 750W Fixed, 92% Efficiency, Autosensing, 80 PLUS Platinum
Monitor Support:
Onboard graphics supports up to 4 independent displays via onboard two DP, one HDMI® and one optional USB-C®;
the number of maximum monitors also depends on the discrete graphic card in use
Mechanical:
Form Factor: Tower (17L)
Dimensions (WxDxH): 170 x 315.4 x 376 mm (6.7 x 12.4 x 14.8 inches)
Weight: 9.67 kg (21.32 lbs, maximum configuration)
Bays:
- 1x 3.5" disk bay (standard)
- 2x 2.5" disk bay (optional)
- 1x 3.5" disk bay (optional)
M.2 Slots
- Up to 3x M.2 SSD:
- 2 via onboard M.2 PCIe Gen 4 slots
- 1 via Single M.2 to PCIe adapter, PCIe Gen 3
- One M.2 slot for WiFi
Expansion Slots:
- One PCIe 4.0 x16
- One PCIe 4.0 x16 (x4 lanes)
- Two PCIe 3.0 x1 (open ended)
What's in the Box:
- ThinkStation P360 Tower
- USB Keyboard
- USB Mouse
- Quick Start Guide
Full spec list for ThinkStation P360 Tower model starting with 30FM available here
