Lenovo ThinkStation P360 Tiny

Šifra:

30FA-CTO

Pint-sized package, yet powerful performance. The industry’s smallest, ISV-certified workstation. Built to perform with 12th Gen Intel® Core™ processors. Choice of professional NVIDIA® discrete graphics. Configurable with dual M.2 PCIe Gen 4 NVMe SSD storage & loads of memory. Support for 6 independent displays to maximize your screen real estate. Ideal for architecture, engineering, healthcare, finance, & education.

Vprašaj za izdelek

test-1-96

Prijavi se Registriraj se

Processor: 12th Generation Intel® Core™ i3 / i5 / i7 / i9 Processor

Memory:

Max Memory: Up to 64GB DDR5-4800 non-ECC
Memory Slots: Two DDR5 SO-DIMM slots, dual-channel capable

Storage:

Up to two drives M.2 SSD PCIe® NVMe®, PCIe 4.0 x4 Opal2, up to 2TB each

Graphics:

Integrated graphics:

Intel UHD Graphics 730
Intel UHD Graphics 770

Discrete Graphics Support:

Supports up to one NVIDIA T1000 on models with 35W processor

Discrete NVIDIA T400 4GB GDDR6 40W, 3x miniDP 1.4
Discrete NVIDIA T600 4GB GDDR6 40W, 4x miniDP 1.4
Discrete NVIDIA T1000 4GB GDDR6 50W, 4x miniDP 1.4
Discrete NVIDIA T1000 8GB GDDR6 50W, 4x miniDP 1.4

Chipset: Intel Q670 Chipset

Operating System:

Windows® 11 Home 64
Windows 11 DG Windows 10 Pro 64
Ubuntu Linux
Red Hat Enterprise Linux (certified only)
No operating system

Input Device:

Keyboard: USB Traditional Keyboard, Black, Slovenian

Mouse: USB Calliope Mouse, Black

Multi-Media:

Audio Chip: High Definition (HD) Audio, Realtek® ALC256VB codec

Speakers: Single speaker

Network:

Onboard Ethernet: Gigabit Ethernet, Intel Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN

WLAN + Bluetooth:

Intel Wi-Fi 6 AX201, 802.11ax 2x2 Wi-Fi + Bluetooth 5.2, M.2 Card
No WLAN and Bluetooth

Ports/Slots:

Front Ports:

1x USB 3.2 Gen 2
1x USB 3.2 Gen 2 (Always On and 5V@2.1A charging)
1x USB-C 3.2 Gen 2
1x headphone / microphone combo jack (3.5mm)

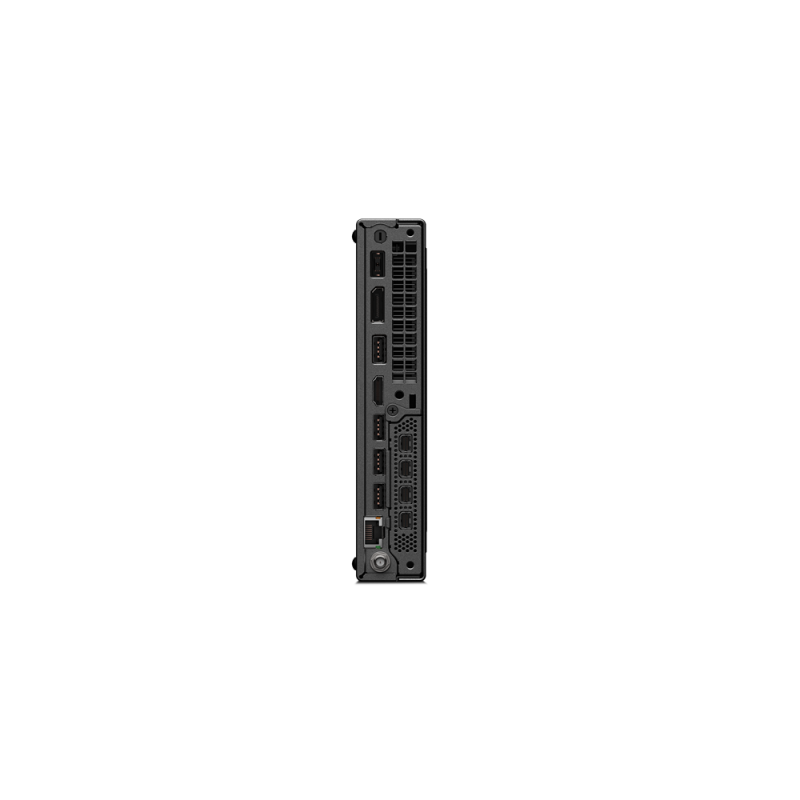

Rear Ports:

2x USB 3.2 Gen 1 (one supports Smart Power On)
2x USB 3.2 Gen 2
1x HDMI 2.1 TMDS
1x DisplayPort™ 1.4
1x Ethernet (RJ-45)

Optional Rear Ports:

Punch out port 1 (one of VGA / DisplayPort / HDMI / serial / USB-C 3.2 Gen 1 with DisplayPort and PD 3.0 functions)
2x USB 3.2 Gen 1 (occupies port 1 and 2)
1x 2.5GbE RJ-45, via RTL8125BGS
2x GbE RJ-45, via I350-T2
4x GbE RJ-45, via I350-T4
Punch out port 2 (one of VGA / DisplayPort / HDMI / serial / RJ-45)

System Management:

Intel vPro Enterprise with Intel AMT 16.0
Standard Manageability

Security:

Security Chip: Discrete TPM 2.0, TCG certified

Physical Locks: Kensington® Security Slot, 3 x 7 mm

Chassis Intrusion Switch: Chassis intrusion switch

BIOS Security:

Administrator password
Power-on password
Hard disk password
Boot sequence control
Boot without keyboard and mouse
Certificate based BIOS management
Cover presence switch
Self-healing BIOS
Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
Individual USB port disablement

Power Supply:

170W / 230W AC Adapter, 89% Efficiency

Monitor Support:

Onboard graphics supports up to 4 independent displays via (onboard DP, onboard HDMI®, punch out port 1 [VGA / HDMI / DP / USB-C®], and punch out port 2 [VGA / HDMI / DP]);

the number of maximum monitors also depends on the discrete graphic card in use

Mechanical:

Form Factor: Tiny (1L)

Dimensions (WxDxH): 179 x 182.9 x 37mm with rubber feet (7.05 x 7.2 x 1.5 inches with rubber feet)

Weight: 1.4 kg (3 lbs, maximum configuration)

M.2 Slots:
