Lenovo ThinkCentre neo 70t

Processor: 12th Generation Intel® Core™ i3 / i5 / i7 / i9 Processor

Memory:

• Max Memory: Up to 128GB DDR5
• Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
• Memory Type: DDR5-3600; DDR5-4000; DDR5-4400

Storage:

Up to four drives, 2x 3.5" HDD + 2x M.2 SSD

• 3.5" HDD up to 2TB each
• M.2 SSD up to 1TB each

M.2 support:

• M.2 2280 SSD PCIe NVMe, PCIe 3.0 x4 Opal2
• M.2 2280 SSD PCIe NVMe, PCIe 4.0 x4 Opal2

RAID: RAID 0/1 support

Removable Storage:

Optical:

• DVD burner (DVD±RW), SATA 1.5Gb/s, slim (9.0mm)

Card Reader:

• 3-in-1 card reader (SD, SDHC, SDXC)

Graphics:

• Integrated Intel UHD graphics 730
• Integrated Intel UHD graphics 770
• Discrete NVIDIA Geforce RTX 3060 Ti 8GB GDDR6

Chipset: Intel Q670 chipset

Operating System:

• Windows® 11 Pro 64
• Windows 11 DG Windows 10 Pro 64
• No operating system

Input Device:

Keyboard: USB Calliope Keyboard, Black, Slovenian

Mouse: USB Calliope Mouse, Black

Multi-Media:

Audio Chip: High Definition (HD) Audio, Realtek® ALC623-CG codec

Speakers: Single speaker, 2W x1

Network:

Onboard Ethernet: Gigabit Ethernet, Intel Ethernet Connection I219-V, 1x RJ-45, supports Wake-on-LAN

WLAN + Bluetooth:

• Intel Wi-Fi 6 AX201, 802.11ax 2x2 Wi-Fi + Bluetooth 5.2, M.2 Card
• Intel Wi-Fi 6E AX211, 802.11ax 2x2 Wi-Fi + Bluetooth 5.2, M.2 Card
• No WLAN and Bluetooth

Ports/Slots:

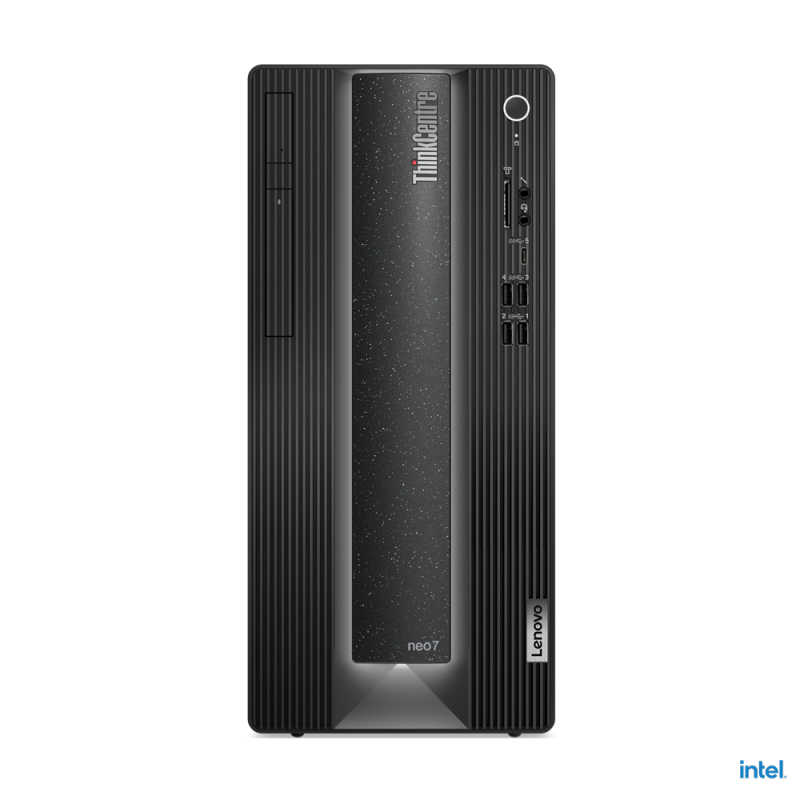

Front Ports:

• 1x USB 3.2 Gen 1
• 1x USB 3.2 Gen 2
• 1x USB-C® 3.2 Gen 2
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

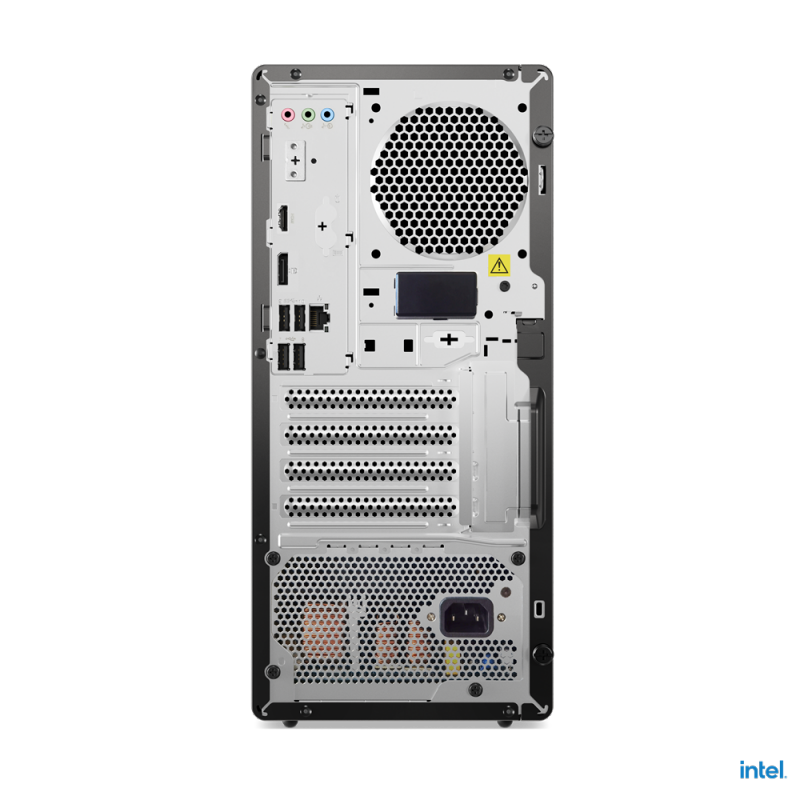

Rear Ports:

• 2x USB 2.0 (one with smart power-on feature)
• 2x USB 3.2 Gen 1
• 1x HDMI 2.1 TMDS
• 1x DisplayPort 1.4
• 1x Ethernet (RJ-45)
• 1x line-in (3.5mm)
• 1x line-out (3.5mm)
• 1x microphone (3.5mm)

Optional Rear Ports:

• 1x HDMI 2.1 TMDS (Flex IO)
• 1x VGA (Flex IO)
• 1x DP 1.2 (Flex IO)
• 1x USB-C 3.2 Gen 1 (Flex IO)
• 1x USB-C 3.2 Gen 2x2 (via USB-C expansion card, PCIe x4)
• 2x USB 3.2 Gen 1 (via 2-port USB expansion card, PCIe x1)
• 2x USB-C 3.2 Gen 2 (via 2-port USB-C expansion card, PCIe x4)
• 1x 1GbE RJ-45, via BN8E88
• 1x 1GbE RJ-45, via RGL8168H
• 1x 2.5GbE RJ-45, via RTL8125BGS
• 1x serial
• 4x serial (via 4-port serial expansion card, PCIe x1)
• 1x parallel
• 2x PS/2
• None

System Management:

• Intel vPro Essentials
• Non-vPro

Security:

Security Chip: Discrete TPM 2.0, TCG certified

Physical Locks:

• (Optional) Smart Cable Clip
• Kensington® Security Slot, 3 x 7 mm

Chassis Intrusion Switch: Chassis intrusion switch

Fingerprint Reader:

• Touch style fingerprint reader on mouse
• Touch style fingerprint reader on power button
• No fingerprint reader

BIOS Security:

• Administrator password
• Secure Wipe
• Power-on password
• Hard disk password
• Cover presence switch
• Smart USB protection (allows keyboard / mouse only, blocks all storage devices)

Power Supply:

• 750W Fixed, 92% Efficiency, 100-240V, Autosensing

Monitor Support:

Supports up to 3 independent displays via onboard ports (HDMI, DisplayPort™, and 1x optional Flex IO), more displays support via discrete graphics

Mechanical:

Form Factor: Tower (17L)

Dimensions (WxDxH): 376 x 170 x 297.85 mm (14.8x 6.7 x 11.73 inches)

Weight: Around 7.5kg (16.53 lbs)

Case Color: Raven black

Bays:

• 1x 3.5" disk bay
• 1x 3.5" disk bay (optional)
• 1x slim ODD bay

Expansion slots:

• One PCIe 3.0 x1
• One PCIe 4.0 x16 (x4 signal)
• One PCIe 4.0 x16, full-height, lenght<249mm
• Three M.2 slots (one for WLAN, two for SSD)

Cooling System (Fan & Cooler):

• (Optional) 1x front system fan, 1x rear system fan
• (Optional) 1x rear system fan
• (Optional) 1x front system fan

What's in the Box:

• ThinkCentre Neo 70t Tower
• USB Keyboard
• USB Mouse
• Quick Start Guide

Full spec list for ThinkCentre Neo 70t model starting with 11YU available here
