Lenovo ThinkCentre neo 50s

Processor: Intel® Celeron®, Intel Pentium®, or 12th Generation Intel Core™ i3 / i5 / i7 / i9 Processor

Memory:

• Max Memory: Up to 64GB DDR4-3200
• Memory Slots: Two DDR4 UDIMM slots, dual-channel capable

Storage:

Up to two drives, 1x 2.5"/3.5" HDD + 1x M.2 SSD

• 2.5" HDD up to 1TB
• 3.5" HDD up to 2TB
• M.2 SSD up to 1TB

M.2 support:

• M.2 2242 SSD PCIe NVMe, PCIe 3.0 x4
• M.2 2280 SSD PCIe NVMe, PCIe 3.0 x4 Opal2
• M.2 2280 SSD PCIe NVMe, PCIe 4.0 x4 Opal2

Removable Storage:

Optical:

• DVD burner (DVD±RW), SATA 1.5Gb/s, slim (9.0mm)
• None

Card Reader:

• 7-in-1 card reader (SD, SDHC, SDXC, MMC, MS, MS-Pro, XD)

Graphics:

• Integrated Intel UHD graphics 710
• Integrated Intel UHD graphics 730
• Integrated Intel UHD graphics 770
• Discrete Intel Iris Xe MAX 100 Graphics, 2GB LPDDR4X

Chipset: Intel B660 chipset

Operating System:

• Windows® 11 Pro 64
• Windows 11 Home 64
• Windows 11 DG Windows 10 Pro 64
• Ubuntu Linux
• No operating system

Input Device:

Keyboard: USB Calliope Keyboard, Black, Slovenian

Mouse: USB Calliope Mouse, Black

Multi-Media:

Audio Chip: High Definition (HD) Audio, Realtek® ALC623-CG codec

Speakers: Single speaker, 1W x1

Network:

Onboard Ethernet: Gigabit Ethernet, Realtek RTL8111HN, 1x RJ-45, supports Wake-on-LAN

WLAN + Bluetooth:

• Intel Wireless-AC 9560, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 5.0, M.2 card
• No WLAN and Bluetooth

Ports/Slots:

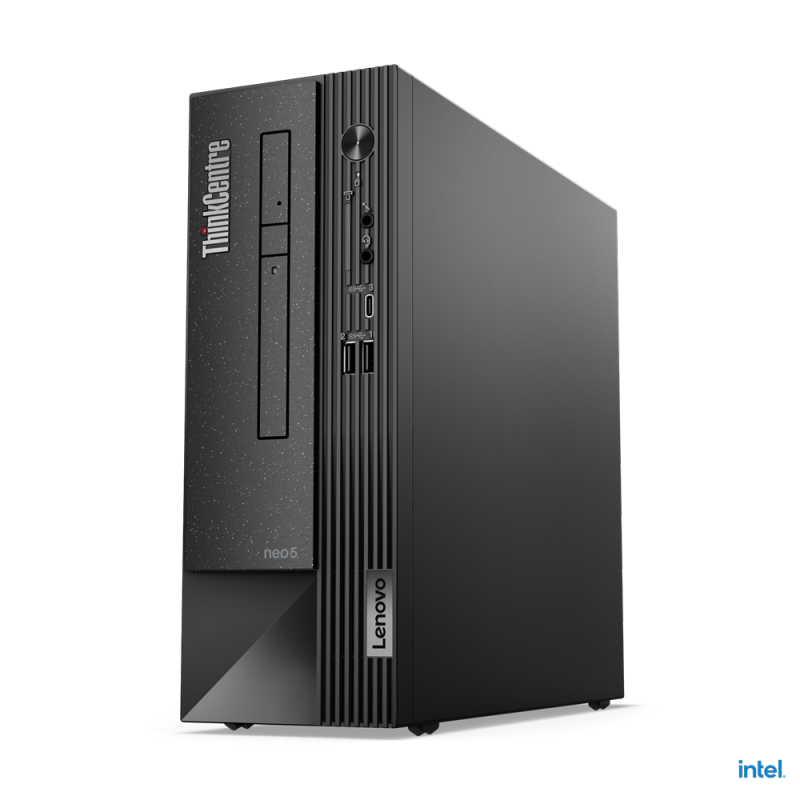

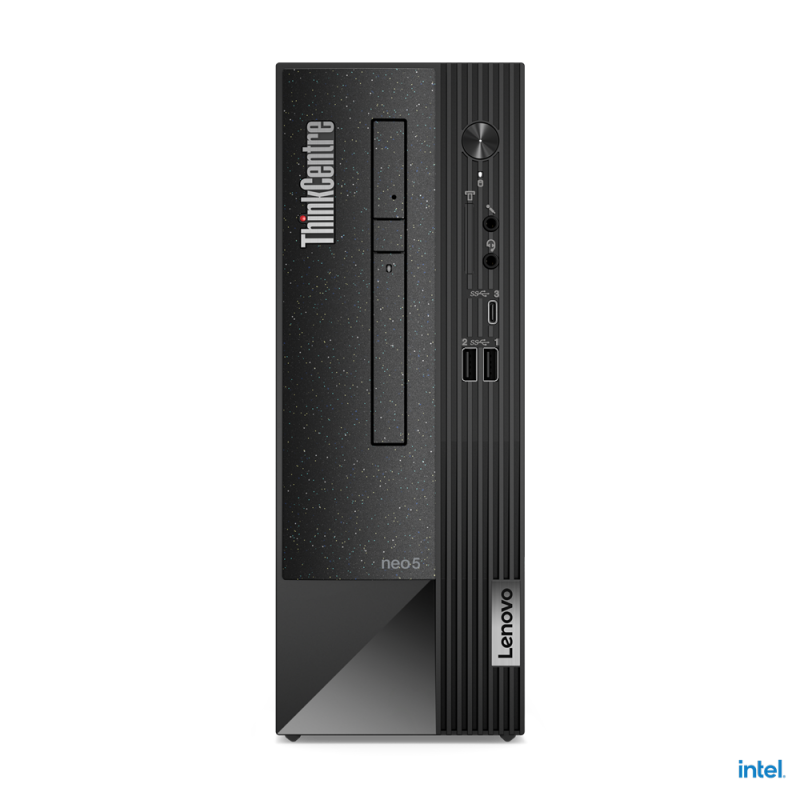

Front Ports:

• 2x USB 3.2 Gen 1
• 1x USB-C® 3.2 Gen 1 (support data transfer and 5V@3A charging)
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

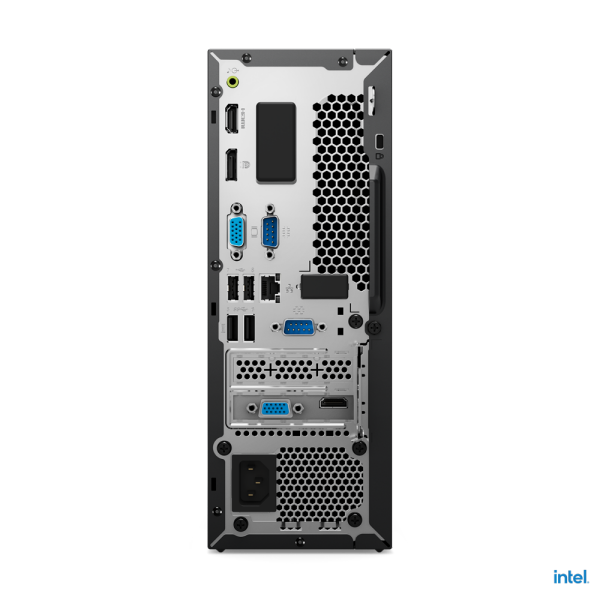

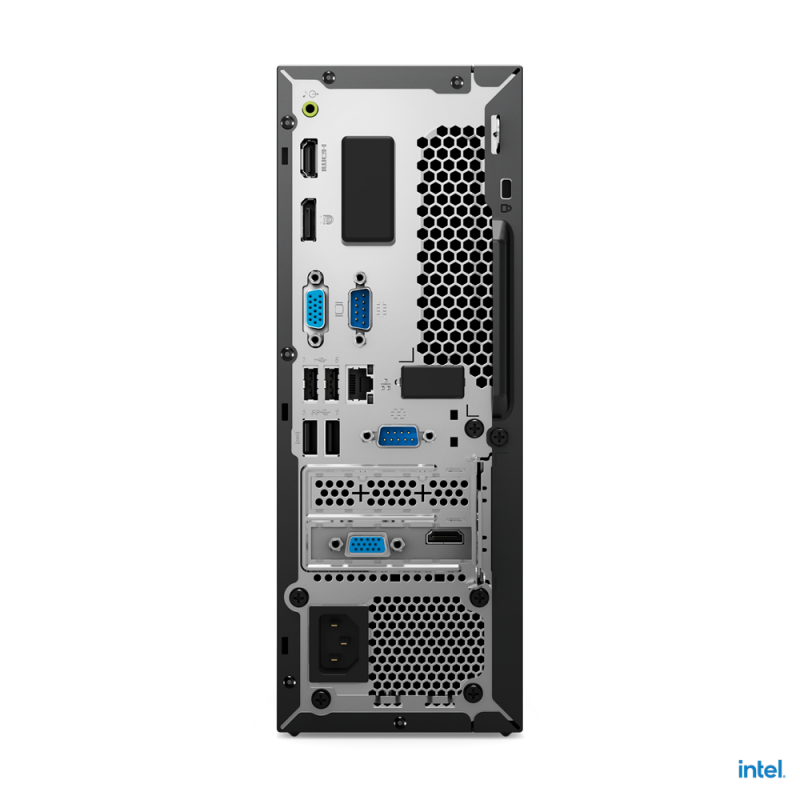

Rear Ports:

• 2x USB 2.0
• 2x USB 3.2 Gen 1 (one supports Smart Power On)
• 1x VGA
• 1x HDMI 2.1 TMDS
• 1x DisplayPort™ 1.4
• 1x Ethernet (RJ-45)
• 1x line-out (3.5mm)

Optional Rear Ports:

• 2x USB 2.0 (via 2-port adapter)
• 1x serial
• 1x 2nd serial
• 1x parallel

System Management:

• Non-vPro

Security:

Security Chip: Discrete TPM 2.0, TCG certified

Physical Locks:

• Kensington® Security Slot, 3 x 7 mm
• Padlock Loop

Chassis Intrusion Switch: Chassis intrusion switch

BIOS Security:

• Secure Wipe
• Power-on password
• Supervisor password
• Hard disk password
• Computrace support
• Cover presence switch
• Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
• Individual USB port disablement

Power Supply:

• 180W Fixed, 85% Efficiency, Autosensing
• 260W Fixed, 90% Efficiency, 100-240V, 50-60Hz

Monitor Support:

Supports up to 3 independent displays via (HDMI, DP and VGA)

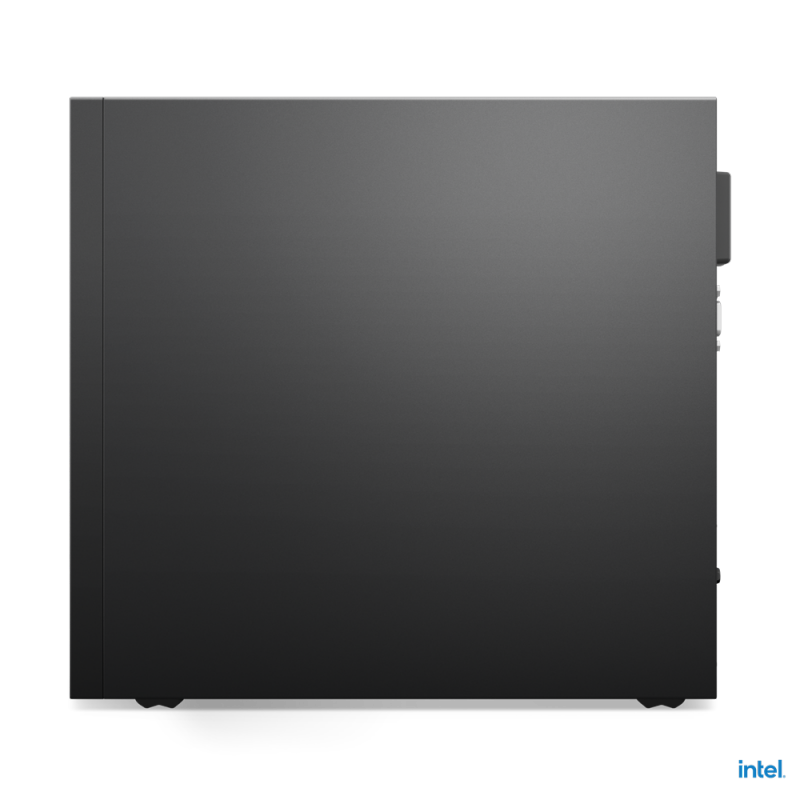

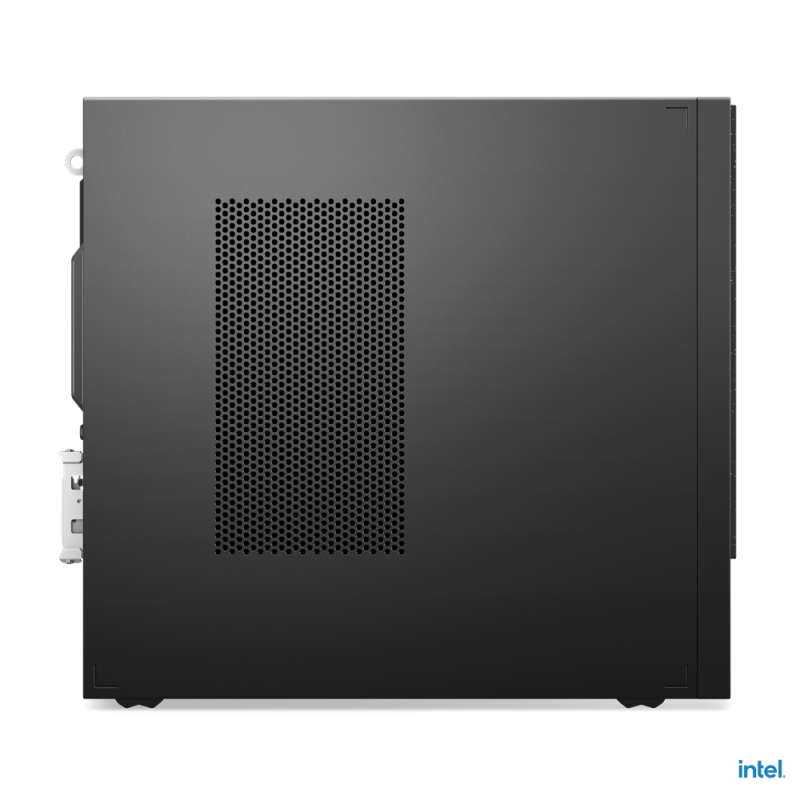

Mechanical:

Form Factor: SFF (7.4L)

Dimensions (WxDxH): 100 x 308 x 274.8 mm (3.9 x 12.1 x 10.8 inches)

Weight: Around 4.5 kg (9.9 lbs)

Case Color: Raven black

Bays:

• 1x 2.5"/3.5" disk bay
• 1x slim ODD bay

Expansion slots:

• One PCIe 3.0 x1, low-profie (length < 167.65mm, height < 68.90mm)
• One PCIe 4.0 x16, low-profie (length < 167.65mm, height < 68.90mm)
• Two M.2 slots (one for WLAN, one for SSD)

What's in the Box:

• ThinkCentre Neo N50s
• USB Keyboard
• USB Mouse
• Quick Start Guide

Full spec list for ThinkCentre Neo 50s model starting with 11T0 available here
