Lenovo ThinkCentre M90s Gen 3 SFF

Processor: Intel® Pentium® or 12th Generation Intel Core™ i3 / i5 / i7 / i9 Processor

Memory:

• Max Memory: Up to 128GB DDR5
• Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
• Memory Type: DDR5-3600 / DDR5-4000 / DDR5-4400

Storage:

Up to four drives, 1x 2.5"/3.5" HDD (2.5" HDD up to 1TB, 3.5" HDD up to 2TB)+ 1x 2.5" HDD (up to 1TB) + 2x M.2 SSD (up to 2TB each)

Graphics:

Integrated graphics:

• Intel UHD graphics 710
• Intel UHD graphics 730
• Intel UHD Graphics 770

Discrete Graphics Support:

• Discrete AMD Radeon™ RX 6400 4GB GDDR6, 1x HDMI 2.1, 1x DP 1.4
• Discrete Intel Iris® Xe MAX 100, 2x DP 1.4

Chipset: Intel Q670 Chipset

Operating System:

• Windows® 11 Pro 64
• Windows 11 Home 64
• Windows 11 Home 64 Single Language
• Windows 11 DG Windows 10 Pro 64
• Windows 10 IoT Enterprise LTSC 2021
• Ubuntu Linux
• No operating system

Input Device:

Keyboard: USB Traditional Keyboard, Black, Slovenian

Mouse: USB Calliope Mouse, Black

Multi-Media:

Audio Chip: High Definition (HD) Audio, Realtek® ALC897Q-CG codec

Speakers: Single speaker, 1W x1

Network:

Onboard Ethernet: GGigabit Ethernet, Intel Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN

WLAN + Bluetooth:

• Intel Wi-Fi 6E AX211, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, Intel vPro technology support, M.2 Card
• No WLAN and Bluetooth

Ports/Slots:

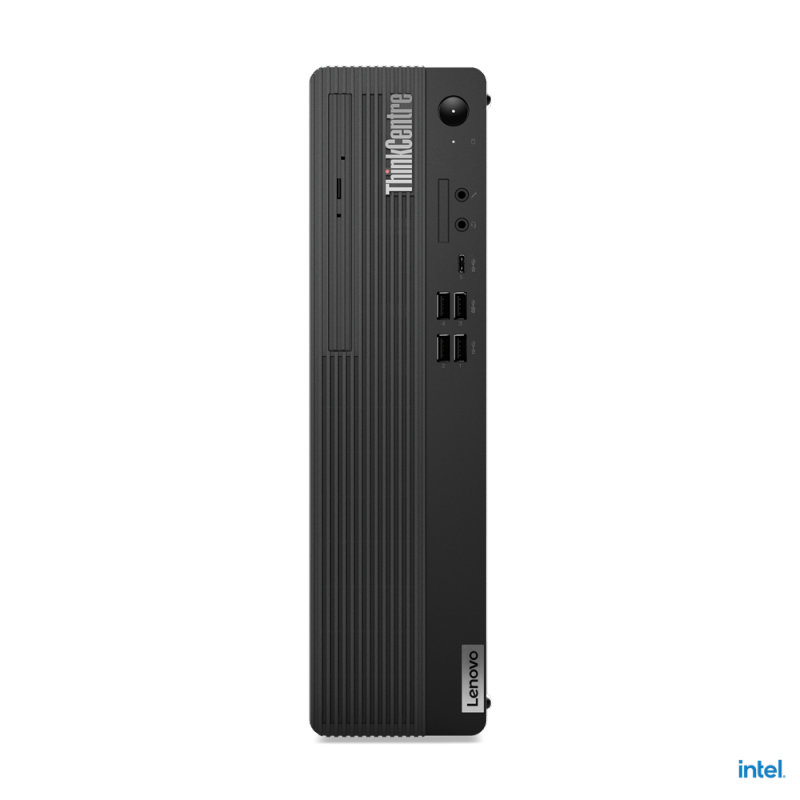

Front Ports:

• 1x USB-C 3.2 Gen 2 (support data transfer and 15W charging)
• 2x USB 3.2 Gen 1
• 2x USB 3.2 Gen 2
• 1x headphone / microphone combo jack (3.5mm)
• 1x microphone (3.5mm)

Optional Front Ports:

• 1x card reader

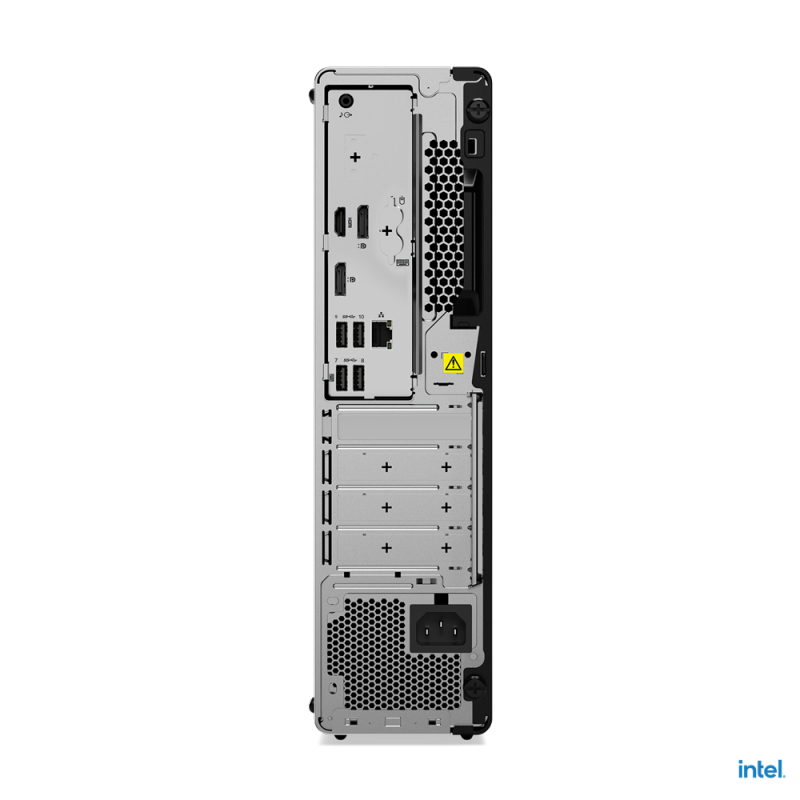

Rear Ports:

• 4x USB 3.2 Gen 1
• 1x HDMI 2.1 TMDS
• 2x DisplayPort™ 1.4
• 1x Ethernet (RJ-45)
• 1x line-out (3.5mm)

Optional Rear Ports:

• 1x USB-C 3.2 Gen 1 with DisplayPort function and 5V@3A charging (Flex IO)
• 1x HDMI 2.1 TMDS (Flex IO)
• 1x VGA (Flex IO)
• 1x DP 1.2 (Flex IO)
• 1x USB-C 3.2 Gen 2x2 (via USB-C expansion card, PCIe x4)
• 2x USB 2.0 (via 2-port adapter)
• 2x USB 3.2 Gen 1 (via 2-port USB expansion card, PCIe x1)
• 2x USB-C 3.2 Gen 2 (via 2-port USB-C expansion card, PCIe x4)
• 1x serial
• 1x 2nd serial
• 4x serial (via 4-port serial expansion card, PCIe x1)
• 1x parallel
• 2x PS/2

System Management:

• Intel vPro Enterprise
• Non-vPro

Security:

Security Chip: Discrete TPM 2.0, TCG certified

Physical Locks:

• Kensington® Security Slot, 3 x 7 mm
• Padlock Loop

Chassis Intrusion Switch: Chassis intrusion switch

BIOS Security:

• Administrator password
• Power-on password
• Hard disk password
• Boot sequence control
• Boot without keyboard and mouse
• Self-healing BIOS (Level 2)
• Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
• Individual USB port disablement

Power Supply:

• 260W, Fixed, 90% Efficiency
• 310W, Fixed, 92% Efficiency
• 380W, Fixed, 92% Efficiency

Monitor Support:

Supports up to 4 independent displays via onboard ports (2x DP, 1x HDMI, and 1x optional Flex IO), more displays support via discrete graphics

Mechanical:

Form Factor: SFF (8.2L)

Dimensions (WxDxH): 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)

Weight: Around 5.3 kg (11.7 lbs)

Bays:

• 1x 2.5" disk bay
• 1x 3.5" disk bay
• 1x slim ODD bay

Expansion slots:

• One PCIe 4.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
• One PCIe 4.0 x16 (x4 signal), low-profile, length ≤ 155mm, height ≤ 70mm
• Two PCIe 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
• Three M.2 slots (one for WLAN, two for SSD)

EOU: Toolless cover, disk, optical, extension card assembly / removal

Stand:

• Vertical stand
• No stand

What's in the Box:

• ThinkCentre M90s Gen 3 (Intel)
• USB Keyboard
• USB Mouse
• Quick Start Guide

Full spec list for ThinkCentre M90s Gen 3 models starting with 11TW available here
