Lenovo ThinkCentre M90q Gen 5

Processor:

• 13th Generation Intel® Core™ i5-13500 Processor (E-Core Max 3.50 GHz, P-Core Max 4.80 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
• 13th Generation Intel® Core™ i5-13500T Processor (E-Core Max 3.20 GHz, P-Core Max 4.60 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
• 13th Generation Intel® Core™ i5-13600 Processor (E-Core Max 3.70 GHz, P-Core Max 5.00 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
• 13th Generation Intel® Core™ i5-13600T Processor (E-Core Max 3.40 GHz, P-Core Max 4.80 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
• 13th Generation Intel® Core™ i7-13700 Processor (E-Core Max 4.10 GHz, P-Core Max 5.20 GHz with Turbo Boost, 16 Cores, 24 Threads, 30 MB Cache)
• 13th Generation Intel® Core™ i7-13700T Processor (E-Core Max 3.60 GHz, P-Core Max 4.90 GHz with Turbo Boost, 16 Cores, 24 Threads, 30 MB Cache)
• 13th Generation Intel® Core™ i9-13900 Processor (E-Core Max 4.20 GHz, P-Core Max 5.60 GHz with Turbo Boost, 24 Cores, 32 Threads, 36 MB Cache)
• 13th Generation Intel® Core™ i9-13900T Processor (E-Core Max 3.90 GHz, P-Core Max 5.30 GHz with Turbo Boost, 24 Cores, 32 Threads, 36 MB Cache)
• 14th Generation Intel® Core™ i5-14500 Processor (E-Core Max 3.70 GHz, P-Core Max 5.00 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
• 14th Generation Intel® Core™ i5-14500T Processor (E-Core Max 3.40 GHz, P-Core Max 4.80 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
• 14th Generation Intel® Core™ i5-14600 Processor (E-Core Max 3.90 GHz, P-Core Max 5.20 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
• 14th Generation Intel® Core™ i5-14600T Processor (E-Core Max 3.60 GHz, P-Core Max 5.10 GHz with Turbo Boost, 14 Cores, 20 Threads, 24 MB Cache)
• 14th Generation Intel® Core™ i7-14700 Processor (E-Core Max 4.20 GHz, P-Core Max 5.30 GHz with Turbo Boost, 20 Cores, 28 Threads, 33 MB Cache)
• 14th Generation Intel® Core™ i7-14700T Processor (E-Core Max 3.70 GHz, P-Core Max 5.20 GHz with Turbo Boost, 20 Cores, 28 Threads, 33 MB Cache)
• 14th Generation Intel® Core™ i9-14900 Processor (E-Core Max 4.30 GHz, P-Core Max 5.40 GHz with Turbo Boost, 24 Cores, 32 Threads, 36 MB Cache)
• 14th Generation Intel® Core™ i9-14900T Processor (E-Core Max 4.00 GHz, P-Core Max 5.50 GHz with Turbo Boost, 24 Cores, 32 Threads, 36 MB Cache)

Memory:

Max Memory: Up to 64GB DDR5-5600 (2x 32GB DDR5 SO-DIMM)

Memory Slots: Two DDR4 SO-DIMM slots, dual-channel capable

Memory Type:

• DDR5-4800
• DDR5-5200
• DDR5-5600

Storage:

Dual SSD mode: up to two drives, 2x M.2 SSD

M.2 2280 SSD up to 2TB

M.2 support:

• M.2 2280 SSD PCIe NVMe, PCIe 4.0 x4 Opal 2 Perfomance
• M.2 2280 SSD PCIe NVMe, PCIe 4.0 x4 Opal 2

Graphics: Integrated Intel UHD graphics 770

Chipset: Intel Q670 Chipset

Operating System:

• Windows® 11 Pro 64
• Windows 11 Home 64
• Windows 11 DG Windows 10 Pro 64
• Ubuntu Linux
• No operating system

Input Device:

Keyboard: USB Traditional Keyboard, Black, Slovenian

Mouse: USB Calliope Mouse, Black

Multi-Media:

Audio Chip: High Definition (HD) Audio, Realtek® ALC233 codec

Speakers: Single speaker, 2W x1

Network:

Onboard Ethernet: Gigabit Ethernet, Intel Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN

Optional Ethernet:

• Gigabit Ethernet, Intel® Ethernet Server Adapter I350-T4, 4x RJ-45, PCIe® x4^[1]
• 2.5 Gigabit Ethernet, Realtek® RTL8125BGS, 1x RJ-45, supports Wake-on-LAN

WLAN + Bluetooth:

• Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax Dual Band 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
• Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.2, M.2 Card
• Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support, M.2 Card
• Intel® Wi-Fi® 7 BE200, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.3 (Bluetooth® 5.4 hardware ready), Intel® vPro® technology support, M.2 Card
• No WLAN and Bluetooth®

Ports/Slots:

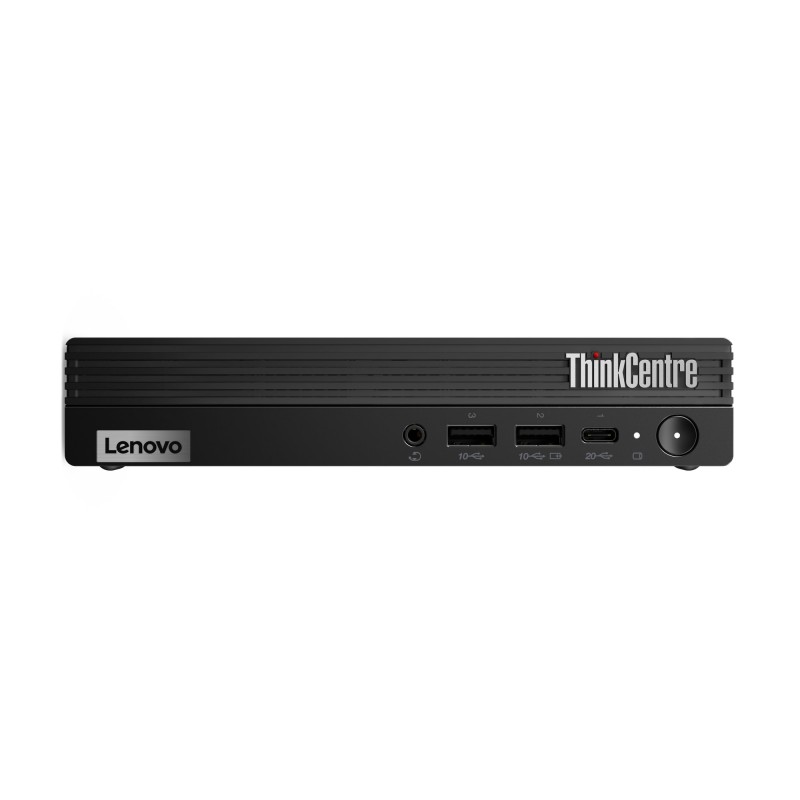

Front Ports:

• 1x USB-C® (3.2 Gen 1), with 5V@0.9A charging
• 1x USB-A (USB 3.2 Gen 2), with Always On and 5V@2.1A charging
• 1x USB-A (USB 3.2 Gen 2)
• 1x headphone / microphone combo jack (3.5mm)

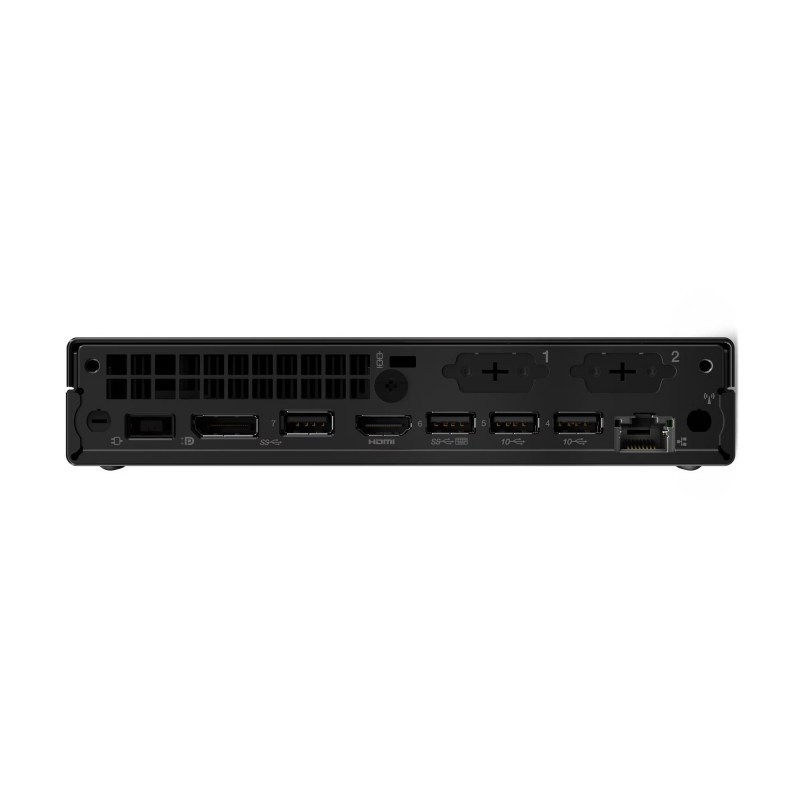

Rear Ports:

• 1x USB 2.0
• 1x USB 3.2 Gen 1
• 2x USB 3.2 Gen 2
• 1x HDMI 2.1 TMDS
• 1x DisplayPort 1.4
• 1x Ethernet (RJ-45)

Optional Rear Ports:

• Punch out port 1 (one of VGA / DisplayPort™ / HDMI® / serial / USB-C® (USB 5Gbps) with DisplayPort™ function and 100W PD in)
• Punch out port 2 (one of VGA / DisplayPort™ / HDMI® / serial / RJ-45)
• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), share USB 5Gbps bandwidth, occupies port 1 and 2
• 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), share USB 5Gbps bandwidth, occupies port 1 and 2
• 4x GbE RJ-45, via additional PCIe® adapter
• 4x serial (via 4-port serial expansion card, PCIe® x1)

System Management:

• Intel vPro Essentials
• Non-vPro

Security:

Security Chip: Discrete TPM 2.0, TCG certified

Physical Locks: Kensington® Security Slot, 3 x 7 mm

Chassis Intrusion Switch: Chassis intrusion switch

BIOS Security:

• Administrator password
• Hard disk password
• Power-on password
• Boot sequence control
• Boot without keyboard and mouse
• Certificate based BIOS management
• Cover presence switch
• Individual USB port disablement
• Self-healing BIOS
• Smart USB protection (allows keyboard / mouse only, blocks all storage devices)

Power Supply: 65W / 90W / 135W / 230W AC Adapter, 89% Efficiency, Autosensing

Monitor Support: Supports up to 4 independent displays via (onboard DP, onboard HDMI®, 2x optional punch out port)

Mechanical:

Form Factor: Tiny (1L)

Dimensions (WxDxH): 179 x 182.9 x 36.5 mm with rubber feet

Weight: Around 1.25 kg

Case Color: Raven black

Expansion slots: Two M.2 slots (one for WLAN, two for SSD)

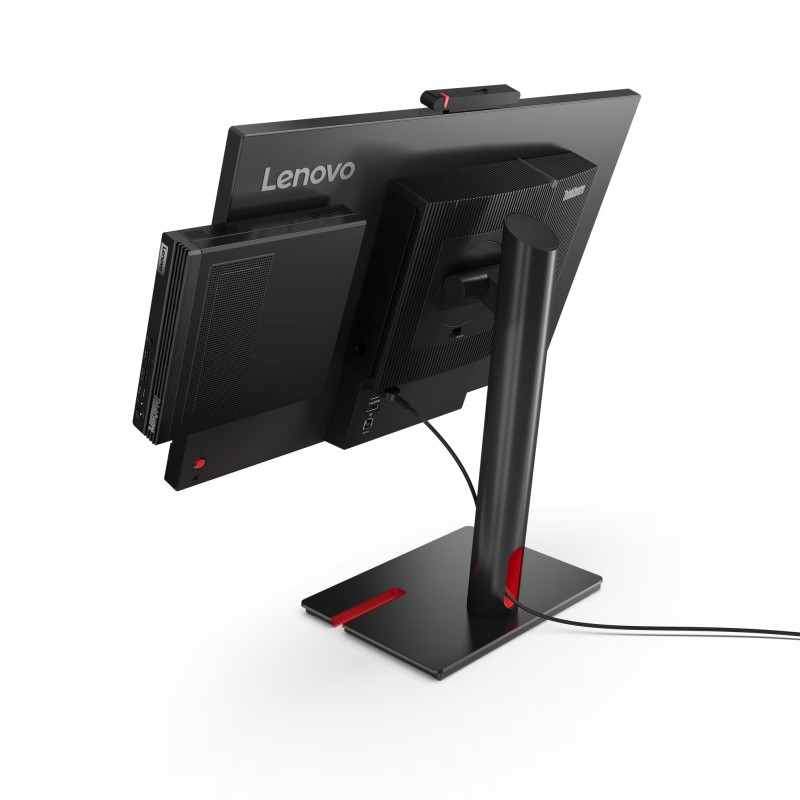

Mounting: VESA mount bracket kit, supports VESA 75x75 and 100x100

What's in the Box:

• ThinkCentre M90q Gen 5 (Intel)
• Power supply
• USB Traditional Keyboard, Black, Slovenian
• USB Calliope Mouse, Black
• Quick Start Guide
