DISPLAY CHARACTERISTICS
Design: Thin bezel
Diagonal: 65", 163.9cm
Panel: IPS, AG coated glass, zero air-gap
Native resolution: 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio: 16:9
Panel brightness: 400 cd/m²
Light transmittance: 88%
Static contrast: 1200:1
Dynamic contrast: 3500:1
Response time (GTG): 8ms
Viewing zone: horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support: 1.07B 8bit+FRC
Pixel pitch: 0.372mm
TOUCH
Touch technology: PureTouch-IR
Touch points: 20 (HID, only with supported OS)
Touch accuracy: +- 1mm
Touch method: stylus, finger, glove
Touch interface: USB
INTERFACES / CONNECTORS / CONTROLS
Analog signal input: 1x VGA (max. 1920x1080 @60Hz)
Digital signal input: 3x HDMI (v.2.0, max. 3840x2160 @60Hz, RGB444); 1x USB-C (3.1, 3840x2160 @60Hz - RGB444 - 65W charging, Touch)
Audio input: 1x Mini jack

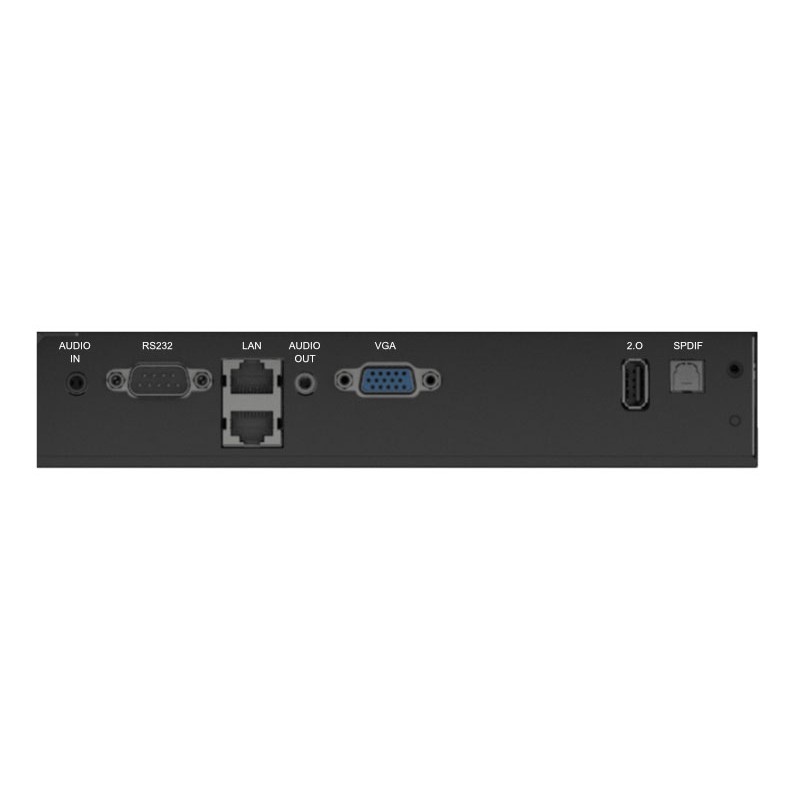

Monitor control input: 1x RS-232c (DSUB 9pin); 1x RJ45 (LAN Control)
Audio output: 1x S/PDIF (Optical); 1x Mini jack; Speakers 2 x 16W
HDCP: v.2.2

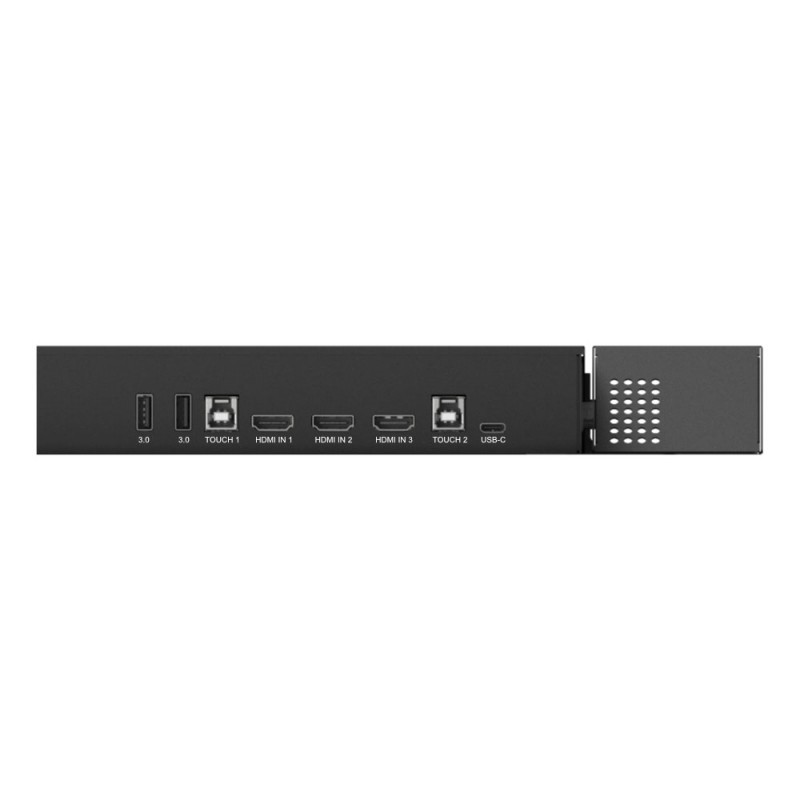

USB ports: 5x (media playback / peripherals / storage – front side: 2x v.3.0, right side: 2x v.3.0, 1x USB-C v.3.1)
RJ45 (LAN): 2x (Auto switch for PC & Android, 1000MB)
FEATURES
Integrated software: iiWare 9.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office, ScreenSharePro and EShare for wireless connection with Windows/iOS/Android devices
WiFi: yes (WiFi Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac, Bluetooth Support: 2.1/3.0/4.2/5.0)
Hardware: Quad core A73 CPU, Mali G52 GPU, 4GB RAM, 32GB internal memory
Extra: Ambient light sensor, OTA firmware update
Kiosk mode: yes
Max. non-stop operating time: 24/7
Media playback: yes
Glass thickness: 3mm
Glass hardness: 7H
Housing (bezel): metal
OSD key lock: yes
GENERAL
OSD languages: EN, DE, FR, ES, IT, RU, CZ, NL, PL
Control buttons: Power, Power Indicator, Remote Sensor, Light Sensor, USB Connector (3.0)
Plug&Play: DDC2B
MECHANICAL
Orientation: landscape
Fanless design: yes
VESA mounting: 600 x 400mm
Operation temperature range: 0°C - 40°C
DIMENSIONS / WEIGHT
Product dimensions (W x H x D): 1489 x 897 x 86mm
Weight: 38kg
POWER MANAGEMENT
Power supply unit: internal
Power supply: AC 100 - 240V, 50/60Hz
Power usage: 190W typical, 0.5W stand by, 0.5W off mode
ACCESSORIES INCLUDED
Cables: power, HDMI, USB for Touch
Touch pen: 4x (Dual function tips)
Guides: quick start guide, safety guide
Other: WiFi Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam
Remote control : yes (batteries included)
