Lenovo ThinkCentre Neo 30a (24” Intel) All-in-One
Processor: Intel® Celeron®, Intel Pentium®, or 12th Generation Intel Core™ i3 / i5 / i7 Processor P-Series
Memory:
Max Memory[1]
Up to 16GB DDR4-3200
Memory Slots
Two DDR4 SO-DIMM slots, dual-channel capable
Memory Type
DDR4-3200
Storage:
Storage Support
Up to two drives, 1x 2.5" HDD + 1x M.2 SSD
• 2.5" HDD up to 1TB
• M.2 SSD up to 1TB
Removable Storage:
Optical
- DVD burner (DVD±RW), SATA 1.5Gb/s, slim (9.0mm)
- None
Graphics:
- Integrated Intel UHD graphics
- Integrated Intel Iris Xe Graphics
Chipset: Intel SoC (System on Chip) platform
Operating System:
- Windows® 11 Pro 64
- Windows 11 Home 64
- Windows 11 DG Windows 10 Pro 64
- No operating system
Display:
- 23.8" FHD (1920x1080) Anti-glare, 250 nits
Input Device:
Keyboard
- Lenovo Calliope Keyboard (USB connector), black
- Lenovo Calliope Wireless Keyboard, black
Mouse**
- Lenovo Calliope Mouse (USB connector), black
- Lenovo Calliope Wireless Mouse (2.4GHz via USB receiver), black
Multi-Media:
Audio Chip
High Definition (HD) Audio, Realtek® ALC256 codec
Speakers
Stereo speakers, 3W x2, Audio by HARMAN
Microphone
Dual array microphone
Camera
- 5.0-megapixel IR camera, 0° Pre-angle pull up camera, with privacy shutter, LED indicator
- HD 720p 0° Pre-angle pull up camera, with privacy shutter, LED indicator
- No camera
Network:
Onboard Ethernet
Gigabit Ethernet, Realtek RTL8111H, 1x RJ-45
WLAN + Bluetooth
- Realtek RTL8822BE, 802.11ac Dual Band 1x1 Wi-Fi® + Bluetooth 5.2, M.2 card
- Realtek RTL8822CE, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 5.0, M.2 card
- Intel Wireless-AC 9560, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 5.1, M.2 card
- Intel Wi-Fi 6 AX201, 802.11ax 2x2 Wi-Fi + Bluetooth 5.2, M.2 Card

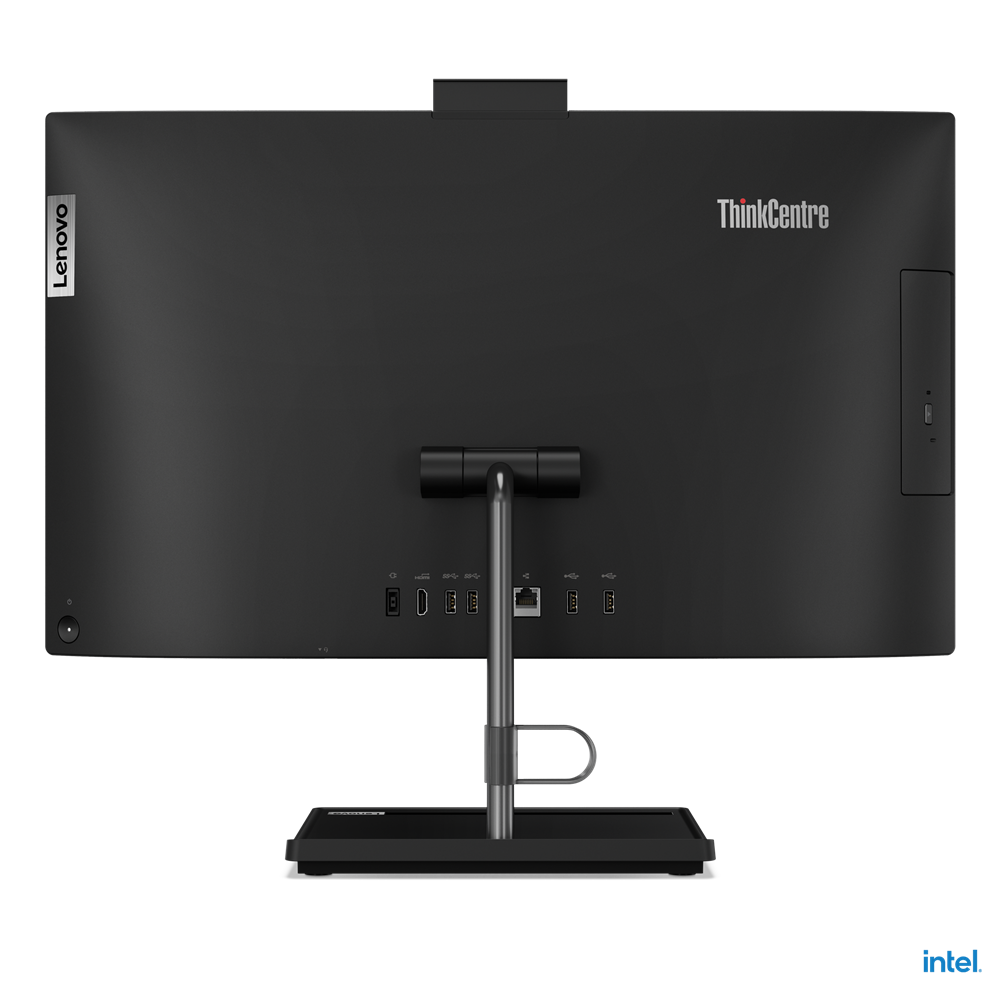

Ports/Slots:
Rear Ports
- 2x USB 2.0
- 2x USB 3.2 Gen 2
- 1x HDMI-out
- 1x Ethernet (RJ-45)
- 1x power connector
Bottom Ports
1x headphone / microphone combo jack (3.5mm)
Security:
Security Chip
Firmware TPM 2.0 integrated in SoC
BIOS Security
- Administrator password
- Power-on password
- Hard disk password
- Cover presence switch
- Intel BIOS guard
Power Supply:
- 90W Fixed 89% Efficiency
Monitor Support:
Supports up to 2 independent displays via native display and 1 external monitors; supports external monitors via HDMI
Mechanical:
Buttons
- Power button
- Optical drive eject button
Form Factor
AIO (23.8 inches)
Packaging Weight
All models: 10.74 kg (23.08 lbs)
Case Color
Raven black
Bays
1x 2.5" disk bay
Expansion Slots
Two M.2 slots (one for WLAN, one for SSD)
EOU
Support EOU design for HDD
Stand
- Monitor stand, supports -5° to +25° tilt, left & right 45° swivel
- Full function monitor stand, supports -5° to +16° tilt, left & right 45° swivel, up to 100mm lift
What's in the Box:
- ThinkCentre N30a 24”
- AC Adapter
- Wireless Keyboard
- Wireless Mouse
- Quick Start Guide
