Processor: 12th Generation P series Intel® Core™ i5 / i7 processor, supports processors up to 14 cores; up to 4.8 GHz; up to 28W TDP
Display:
- 16" QHD+ WQXGA (2560x1600) IPS 400nit Anti-glare, 100% sRGB, Dolby Vision, X-Rite Pantone Factory Color Calibration (∆E<2), Low Blue Light, TUV Eye Comfort
- 16" FHD+ (1920x1200) Low Power IPS 400nits Anti-glare, 100% sRGB, ICC Template color calibration, Low Blue Light, TUV Eye Comfort
- 16" FHD+ (1920x1200) IPS 300nits Anti-glare, 45% NTSC, Touch
- 16" FHD+ (1920x1200) IPS 300nits Anti-glare, 45% NTSC
Memory:
Max Memory:
- Up to 40GB (8GB soldered + 32GB SO-DIMM) DDR4-3200
- Up to 48GB (16GB soldered + 32GB SO-DIMM) DDR4-3200
Memory Slots: One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable
Storage: One drive, 2TB M.2 2280 SSD PCIe® Gen 4x4 Opal2
Graphics:
- Integrated Intel® Iris® Xe Graphics
- Discrete NVIDIA® T550 4GB GDDR6 Graphics
Operating System:
- Windows® 11 Pro 64
- Windows 11 Home 64
- Windows 11 DG Windows 10 Pro 64
- Ubuntu Linux
- Red Hat Enterprise Linux (certified only)
Input Device:
Keyboard: 6-row, spill-resistant, multimedia Fn keys with Unified Communications controls
Keyboard Backlight:
- LED backlight
- Non-backlight
UltraNav™: 3-button TrackPoint® pointing device and glass-like Mylar® surface multi-touch touchpad, 67 x 115 mm (2.64 x 4.53 inches)
Multi-Media:
Audio Chip: High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers: Stereo speakers, Dolby® Audio™
Microphone: Dual array microphone, Dolby Voice
Camera:
- HD 720p, with privacy shutter, fixed focus
- FHD 1080p, with privacy shutter, fixed focus
- IR & FHD 1080p hybrid, with privacy shutter, fixed focus
Network:
Onboard Ethernet:
- Gigabit Ethernet, Intel Ethernet Connection I219-LM (vPro models), supports Wake-on-LAN
- Gigabit Ethernet, Intel Ethernet Connection I219-V (non-vPro models), supports Wake-on-LAN
WLAN + Bluetooth: Intel Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi + Bluetooth 5.2
WWAN:
- Wireless WAN upgradable to 4G (with antenna ready)
- Integrated Mobile Broadband 4G LTE-A, Fibocom L860-GL, CAT16, MIMO 4x4, M.2 card, with embedded eSIM functionality

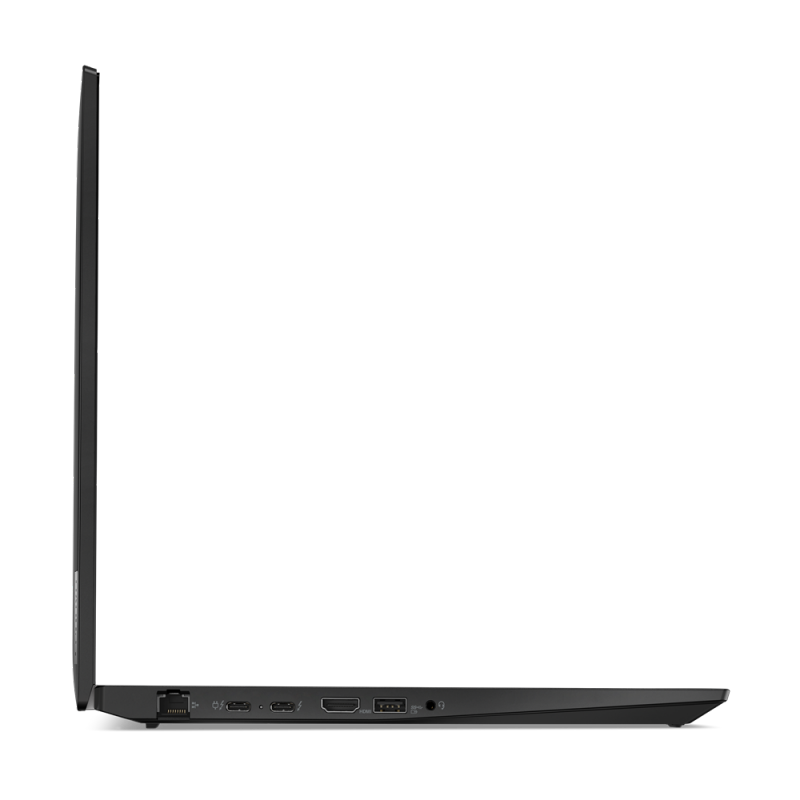

Ports/Slots:
Standard Ports:
- 2x USB 3.2 Gen 1 (one Always On)
- 2x Thunderbolt 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
- 1x HDMI, up to 4K/60Hz
- 1x Ethernet (RJ-45)
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Security keyhole
Optional Ports:
- 1x Smart card reader
- 1x Nano-SIM card slot (WWAN support models)
System Management:
Security:
Security Chip: Discrete TPM 2.0, TCG certified
Physical Locks: Kensington® Security Slot, 3 x 7 mm
Smart Card Reader: Optional
Fingerprint Reader: Touch style fingerprint reader on power button
BIOS Security:
- Power-on password
- Supervisor password
- NVMe password
- Self-healing BIOS
Other Security:
- (Optional) Camera privacy shutter
- (Optional) IR camera for Windows Hello
Battery:
- Integrated Li-Polymer 52.5Wh battery, supports Rapid Charge (charge up to 80% in 1hr)
- Integrated Li-Polymer 86Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 135W AC adapter
Monitor Support:
Supports up to 4 independent displays (native display and 3 external monitors via HDMI® and Thunderbolt™)
• HDMI supports up to 3840x2160@60Hz
• Thunderbolt supports up to 5120x3200@60Hz (Thunderbolt or USB-C® to DP) or 1920x1080@240Hz (USB-C to DP)
Mechanical:
Dimensions (WxDxH):
- Integrated graphics models: 361.98 x 255.5 x 20.5 mm (14.25 x 10.06 x 0.81 inches)
- NVIDIA graphics models: 361.9 x 255.5 x 20.83 mm (14.25 x 10.06 x 0.82 inches)
Weight:
- Model with grey cover: Starting at 1.683 kg (3.71 lbs)
- Model with black cover: Starting at 1.677 kg (3.7 lbs)
Case Color:
Case Material:
- Model with black cover: PC 50% GF + PC 20% CF (top), PPS (bottom)
- Model with grey cover: Aluminium (top), PPS (bottom)
What's in the Box:
- ThinkPad P16s
- 65W / 100W / 135W AC Adapter
- Internal Battery
- Quick Start Guide
Full spec list for ThinkPad P16s Gen 1 model starting with 21BT available here
